Vivotek

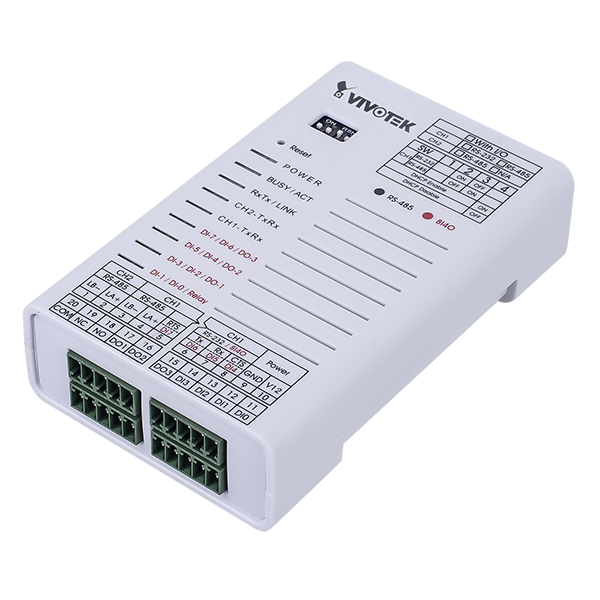

Vivotek Wiegand Convertor for IB9387-LPR, IB9365-LPR - AO-20W
Vivotek Wiegand Convertor for IB9387-LPR, IB9365-LPR - AO-20W
Regular price
$583.20 USD
Regular price
Sale price
$583.20 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Specification | Details |
|---|---|
| Hardware | |
| TCP server | 10/100 Mbps Base T Ethernet <--> RS485 (Auto-detection by order: RS232, RS232+RS485) |
| Server port 0 Baud rate | 2400 bps - 115200 bps |
| Server port 0 Mode | Support TCP/Server, TCP/Client, UDP mode |
| Server port 1 Baud rate | 2400 bps - 115200 bps |
| Server port 1 Mode | Support TCP/Server, TCP/Client, UDP mode |
| Wiegand port | Up to 96 bits |
| PoE | No |
General
| Specification | Details |
|---|---|
| Connectors | Digital input x 8, Digital output x 4 (relay output x 1 & digital output x 3) |
| LED Indicator | 9 LEDs for power, communication |
| Power Input | DC 9 ~ 24V |
| Power Consumption | Max. 2W |
| Dimension | 106.5(L) x 66(W) x 27.7(H) mm |
| Weight | 86 ± 5 g |
| Certification | FCC, CE, RoHS |
| Operating Temperature | -25°C ~ 85°C (-13°F ~ 185°F) |
| Working Temperature | -20°C ~ 65°C (-4°F ~ 149°F) |
| Storage Humidity | 5% ~ 95% |
| Working Humidity | 20% ~ 90% |
| Buffer | 1K each channel |
Surge Protection & Fuse Protection
| Specification | Details |
|---|---|
| Surge Protection Power | 30 Volt, bi-directional avalanche breakdown device |
| Surge Protection RS485 | 6.5 Volt, bi-directional avalanche breakdown device |
| Peak Power Dissipation | 400W peak |
| Clamping Time | < 1 picosecond (theoretical) |
| Fuse Protection Power | PTC 150mA |
| Fuse Protection RS485 | PTC 30mA |
Software
| Specification | Details |
|---|---|
| Setting | 701Server, 701Client, HTTP Web browser |
| System | Windows 7/8/10, Win Server 2008/2012/2016 |
| Watchdog | Yes, built-in watchdog for system error handling |
