Vivotek

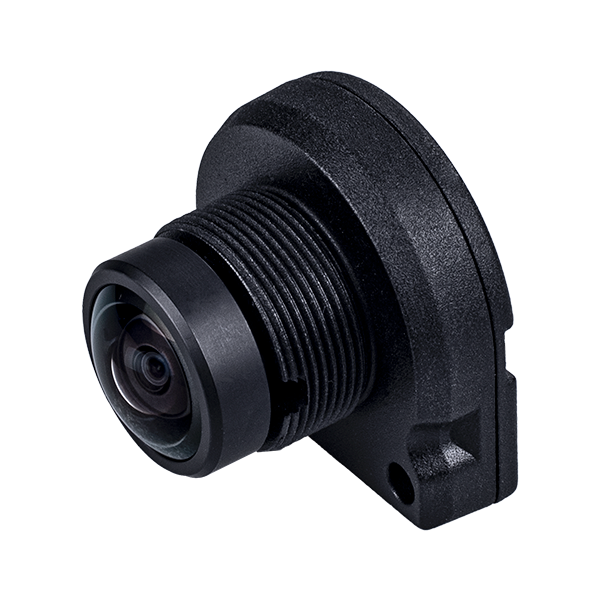

Vivotek VC9101 Unit, Flat Shape (Fisheye) - CU9183-HF
Vivotek VC9101 Unit, Flat Shape (Fisheye) - CU9183-HF
Regular price
$300.00 USD
Regular price
Sale price
$300.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification: Camera CU9183
Camera Specifications
| Feature | Details |
|---|---|
| Image Sensor | 1/2.7" Progressive CMOS |
| Maximum Resolution | 1920 × 1920 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.22 mm |
| Aperture | F 2.0 |
| Iris Type | Fixed Iris |
| Field of View | - Horizontal: 180° - Vertical: 180° - Diagonal: 180° |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.035 lux @ F2.0 (Color) |
Video Specifications
| Feature | Details |
|---|---|
| Maximum Frame Rate | H.265/H.264/MJPEG: - 30 fps @ 1920 × 1920 (WDR On) |
| Streams Supported | 3 video streams (up to 8 configurable profiles) |
| Stream Details | - Main Stream: 30 fps @ 1920 × 1920 - 2nd Stream: 30 fps @ 1920 × 1920 - 3rd Stream: 30 fps @ 1280 × 1280 |
| S/N Ratio | 56.3 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality, constrained bit rate control, Smart Stream III |
Image Settings
| Setting Type | Details |
|---|---|
| General Settings | Video title, timestamp overlay, video orientation (flip, mirror) |
| Image Adjustments | White balance, brightness, contrast, saturation, sharpness, defog, 3DNR, HLM, scene mode (auto, deblur) |
| Exposure Settings | BLC, HLC, exposure control (level, time, gain), AE speed adjustment, WDR |
| Privacy Mask | Supported |
| Pixel Calculator | Supported |
Display Modes
| Mode | Details |
|---|---|
| Client Dewarping |
Ceiling Mounted: - 1O Fisheye - 1P Panoramic - 2P Two Panoramics - 1R One Region - 4R Four Regions - 1O3R One Fisheye, Three Regions - 1O8R One Fisheye, Eight Regions Wall Mounted: - 1O Fisheye - 1P Panoramic - 1R One Region - 4R Four Regions - 1P2R One Panoramic, Two Regions - 1P3R One Panoramic, Three Regions - 1O3R One Fisheye, Three Regions |
| Local Dewarping |
Ceiling Mounted: - 1O Fisheye - 1P Panoramic - 2P Two Panoramics - 1R One Region - 4R Four Regions Wall Mounted: - 1O Fisheye - 1P Panoramic - 1R One Region - 4R Four Regions |
General Details
| Feature | Details |
|---|---|
| Connectors | USB Micro-B connector (5m cable: USB Micro-B & RJ11 connectors) |
| Power Input | Sensor unit USB Micro-B (female); cable USB Micro-B (male) <=> RJ11 |
| Power Consumption | < 1.25W |
| Dimensions | - CU9183-H: Ø24 × 37 mm (without cable) - CU9183-HF: 33 × 32 × 28 mm (without cable) |
| Weight | - 5m Cable: < 210 g - CU9183-H: 28 g - CU9183-HF: 52 g |
Certifications
| Category | Details |
|---|---|
| EMC | CE (EN55032, EN55024 Class B), FCC (Part 15 Subpart B Class B), RCM (AS/NZS CISPR32 Class B), VCCI (CISPR 32 Class B) |
| Safety | UL (UL62368-1), CB (IEC/EN 62368-1) |
Environmental Specifications
| Feature | Details |
|---|---|
| Operating Temperature | - Starting: 0°C ~ 50°C (32°F ~ 122°F) - Working: -10°C ~ 50°C (14°F ~ 122°F) |
| Humidity | - Outdoor Series: 98% RH (non-condensing) - Indoor Series: 90% RH (non-condensing) |
