Vivotek

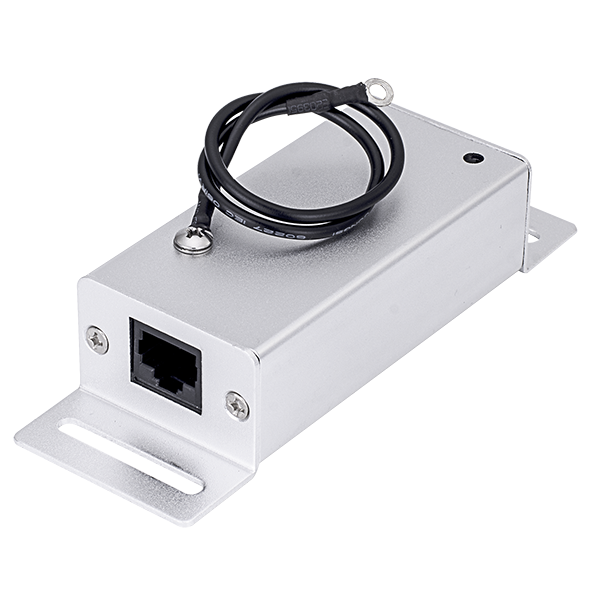

Vivotek Surge Protector - AT-PSP-001
Vivotek Surge Protector - AT-PSP-001
Regular price
$75.60 USD
Regular price
Sale price
$75.60 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Specification | Details |
|---|---|
| Number of Ports | 1 |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Max Discharge Current (8/20us, 1KA per Line) | 8KA, 16KV |
| Maximum Operation DC Voltage | 60VDC |
| Maximum Operation DC Current | 1A for 2 pair, 2A for 4 pair, 95W maximum |
| Common Mode Protection Level (10/700us) | 20KV |
| Differential Mode Protection Level (10/700us) | 4KV |
| Clamping Voltage (Line to GND) | 600V |
| Clamping Voltage (Line to Line) | 20V |
| Insertion Loss @ 10MHz/100MHz | 1dB |
| Return Loss @ 10MHz/100MHz | -20dB |
| Response Time | 5ns |
| Dimensions (WxHxD) | 25 x 40 x 80 mm |
| Weight | 0.2 KG |
| Connectors | RJ45 x 2 |
