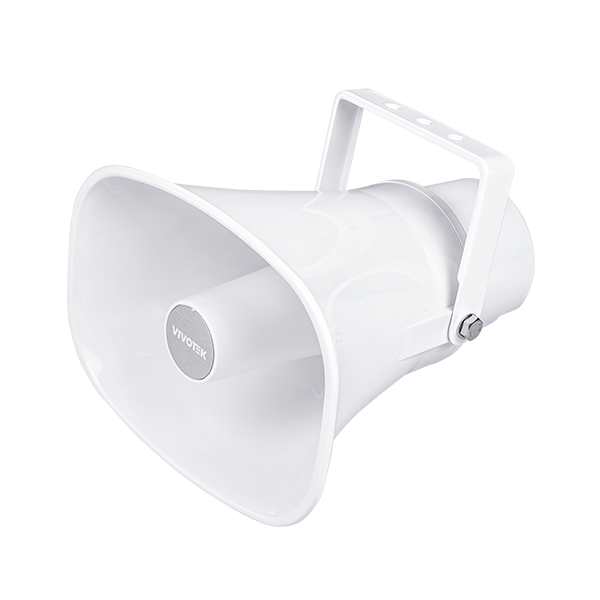

Vivotek Outdoor Network Horn Speaker - AU-003

Product Information

• Rated Impedance: 8 ohms
• Average Minimum Power: 15 watts
• Frequency Ranges (±10dB): 500–2000 Hz (calculated as 2000 - 500 = 1500 Hz range)
• Frequency Ranges (±20dB): 400–12000 Hz (calculated as 12000 - 400 = 11600 Hz range)
• Maximum Sound Pressure Level: 113 dB
• Microphone Frequency Range: 50–20000 Hz (calculated as 20000 - 50 = 19950 Hz range)

Network

• SIP Support: RFC 3261
• Interface: WAN: RJ-45x1, 10/100Mbps Fast Ethernet port
• Supported Protocols: SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
• Audio Codec: OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
• Security: Password protection, IP address filtering, Digest authentication, firewall

VSS Integration

• Two-way Communication: Supported
• Automatic Trigger Audio Clips: Supported

General

• Casing: ABS, IP66 water-proof
• Power: PoE (Power over Ethernet, IEEE 802.3af) or DC 12-24V
• Operating Temperature: -35°C ~ 60°C (-31°F ~ 140°F)
• Dimensions: 225 x 165 x 240mm
• Weight: 1.3 kg
• Certifications: CE, FCC, VCCI, BSMI
