Vivotek

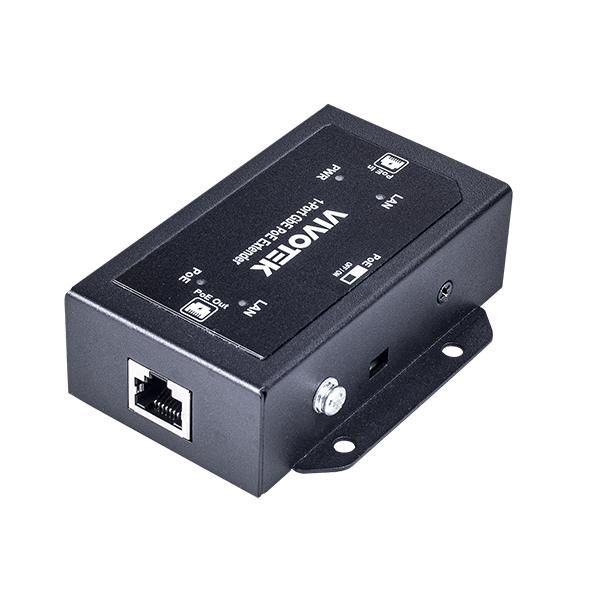

Vivotek Indoor 1-Port GE PoE Extender - AP-GXC-0100
Vivotek Indoor 1-Port GE PoE Extender - AP-GXC-0100
Regular price
$180.00 USD
Regular price
Sale price
$180.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Specification | Details |
|---|---|
| Extension Distance | 2 Units, Daisy-chain Installation, Up to 300M Extension (No Local Power Required) |
| PoE Input Power | 802.3 af/at/bt & PoH up to 95W |
| PoE Output Power | 48~55VDC, max. 68W Passive PoE |
| PD Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) |
| PSE Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) |
| PD Gigabit Ethernet (RJ45) | 1 |
| PSE Gigabit Ethernet (RJ45) | 1 |
| PSE Power On/Off Dip Switch | Supported |
| Surge Protection / PoE Port | 12KV |
| Total Gigabit Ethernet Port | 2 |
| MAC Table | 2K |
| Bandwidth | 10/100/1000 Mbps |
| Switching Capacity | 4 Gbps |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
| Dimensions (WxHxD) | 90 x 69.4 x 28.5 mm |
| Weight | 0.19 KG |
| LED Indicators | Power, LAN, PoE |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 10% to 90% non-condensing |
| EMC | CE, FCC, VCCI, C-Tick |
