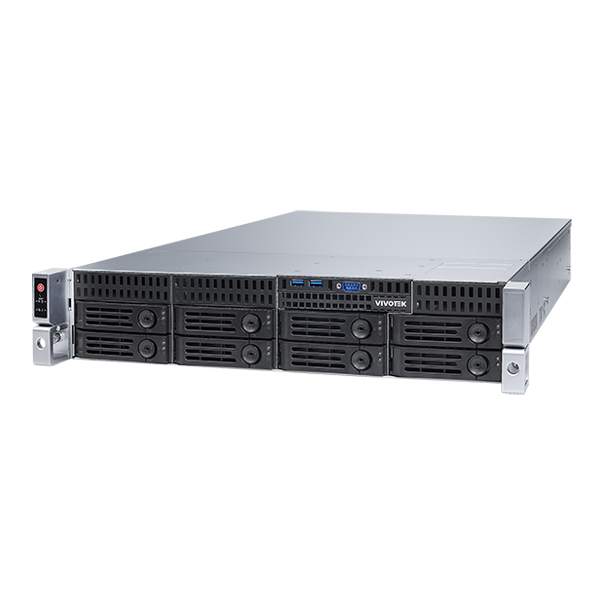

Vivotek H.265 32-CH 8 Bay Recording Server - NR9581-V3
Vivotek H.265 32-CH 8 Bay Recording Server - NR9581-V3
Regular price
$10,500.00 USD
Regular price
Sale price
$10,500.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Feature | Details |
|---|---|
| Device | H.265 2U 32-CH 8bay NVR |
| OS | Embedded Windows 10 |
| Watchdog | Hardware + Software |
| Power Restoration | System Restart Automatically after Power Recovery |
| Local Display | 32 Channels (up to 128CH by license purchasing) |
| Video Output | HDMI x1, Display Port x1, DVI x1, VGA x1 |
| Dual Monitor | Supported |
| Power Input | Redundant power 100~240V AC |
| Power Consumption | Max. 550 W |
| Redundant Power | Supported |
| Dimensions | 89 (H) x 437 (W) x 647 (D) mm |
| Weight | 15.8 kg (without HDD) |
| Operating Temperature | 5°C ~ 35°C (41°F ~ 95°F) |
| Humidity | 5% ~ 95% |
| Safety Certifications | CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS |
Technical Specifications
| Feature | Details |
|---|---|
| Display Resolution | HDMI: 4096x2160, DP: 7680x4320, DVI: 1920x1200, VGA: 1920x1200 |
| Decoding Resolution | Up to 7680x2560 |
| Decoding Capability | H.264: 1920x1080 @360 fps, H.265: 1920x1080 @180 fps |
| Audio Format | G.711, G.726, AMR, MPEG-2 AAC-LC |
| Recording Stream | Single |
| Recording Throughput | 512 Mbps |
| Recording Mode | Continuous, Event, Customized Schedule |
| Recording Data Encryption | Supported |
| Seamless Recording | Supported |
| HDD Max. Capacity | Refer to supported HDD list on VIVOTEK website |
| RAID | RAID 0, 1, 5, 6, 10, 50, 60 |
| Manual Backup | USB pen drive (FAT Format), NAS (SMB & CIFS) |
| Schedule Backup | NAS (SMB & CIFS) |
| Snapshot Format | JPEG, PNG |
| Video Clip Export | 3GP |
Descriptions
| Feature | Details |
|---|---|
| Monitor Enhancement | E-Map Embedded, Drag & Drop, Remote I/O Control, PiP (Digital Zoom), Instant Playback, Video Display Mode |
| Video Format | MJPEG, MPEG4, H.264, H.265 |
| Fisheye Dewarp | 1O, 1P, 1R, 1O3R, 4R, 2P, 4R Pro, 1O8R |
| PTZ/ePTZ Operation | Home, preset, patrol, auto pan, auto focus, manual focus, zoom speed, tracking |
| Stream Application | Stream selection & auto stream size |
| eMap | BMP, GIF, JPG, PNG, SVG for source, Camera, DI/DO for device integration |
| Event Notification | Live streaming of events |
| External Interface | USB 2.0 x 4 (front and back), USB 3.2 x 4, Audio In/Out ports |
| Cybersecurity Management | Supported |
Storage & Backup
| Feature | Details |
|---|---|
| HDD Devices | Hot-Swappable Tray x8 (HDD purchased separately) |
| Disk Management | Create, Format, and Remove Disk |
| Recording Setting | Recycling time depends on remaining storage space or set number of days |
| Watermark | Supported |
Alarm Management
| Feature | Details |
|---|---|
| Alarm Period (sec.) | Max. 30 |
| Alarm Filter | Time, Trigger Type, Status, Name |
| Camera Event | Audio detection, Motion detection, Tampering, Intrusion, Face detection, etc. |
| Action | Start to record, Set DO status, Go to camera presets, Send HTTP requests, etc. |
| Alarm Result Export | .csv file |
Advanced Features
| Feature | Details |
|---|---|
| VCA Counting Solution | Supported |
| LPR Solution | Supported |
| VCA Event Search | Smart VCA |
| Smart Search | Smart Search I & II |
| Deep Search | Supported |
| Failover | Supported (For ordering details, contact sales representative) |
Network
| Feature | Details |
|---|---|
| Ethernet | 2.5 Gigabit LAN x2 |
| Video Throughput for Remote Client | 650Mbps |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, RTSP/RTP/RTCP, SMTP, FTP, etc. |
