Vivotek

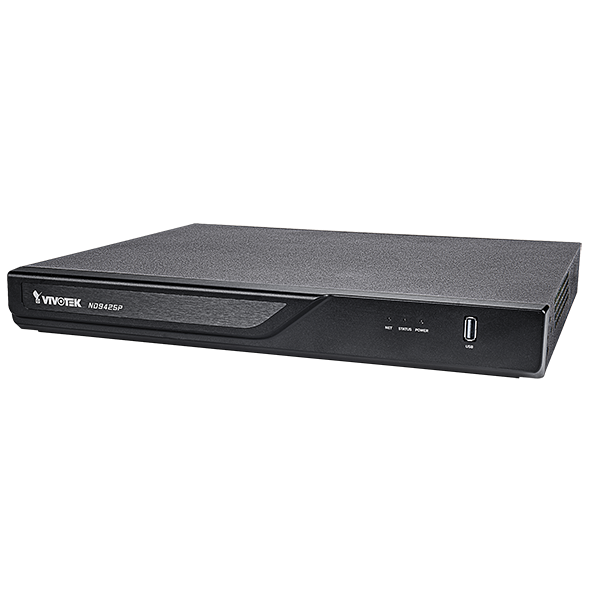

Vivotek H.265 16-CH Embedded PoE NVR - ND9425P

Vivotek H.265 16-CH Embedded PoE NVR - ND9425P

$560.00 USD
$560.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Specification

Device 16-CH Embedded PoE NVR
OS Embedded Linux
Watchdog Hardware + Software
Power Restoration System Restart Automatically after Power Recovery
Display LiveView Display (16 Channels)
Multi-Layout Display 1x1, 2x2, 3x3, 4x4, 1M+5, 1M+7, 1M+12, 1P+3, 1P+6, 2P+3, 2V+3, 1V+6, 3V

Video Output & Stream

Video Output HDMI x1, VGA x1
Display Resolution 3840x2160, 1920x1080, 1280x720
Stream Application Constant/Auto Stream
Fisheye Dewarp Local: 1O, 1R, 1O3R, 1O8R; Web: 1O, 1R, 1P
PTZ Operation Direction Control, Home, Iris, Preset, Patrol (Group)

Video Format & Decoding

Video Format MJPEG, H.264, H.265
Graphic Decoder Hardware decoding
Decoding Resolution Up to 3840x2160
Decoding Capability 3840x2160 @ 30 fps (1-CH), 1920x1080 @ 120 fps (4-CH), 1280x720 @ 240fps (8-CH), 720x480 @ 480fps (16-CH)

Audio

| Audio Format | G.711, G.726 |

Recording Specifications

Recording Time (sec.) Pre-Record: 5 (Max. 10), Post-Record: 20 (Max. 300)
Recording Stream Single
Recording Throughput 64Mbps
Recording Mode Continuous, Schedule, Manual, Event
Recording Setting Recycle (unit: Day)
Watermark Supported

Storage & Backup

DISK Devices Internal x2 (3.5") (HDD purchased separately)
HDD Max. Capacity Refer to HDD supported list on VIVOTEK website
RAID RAID 0, 1
Disk Management Create, Format, Remove Disk, HDD S.M.A.R.T
External Storage USB Storage (USB 3.0)
Video Clip Export USB pen drive (FAT Format)
Schedule Backup FTP

Playback

Playback Display 4 Channels
Multi Layout Display 1x1, 2x2, 1P+3, 1V+3
Playback Control Regular (Play, Pause, Stop), Rewind, Next/Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)
Video Search By Calendar, Date/Time, and Alarm
Thumbnail Explorer (Storyboard) Listing the thumbnail of recorded video (Max. 2 CH)
Snapshot JPEG
Video Clip Export EXE

Network

Ethernet 10/100/1000Mbps Ethernet (RJ-45) x1
Network Throughput 88 Mbps
PoE 802.3at/af compliant PoE ports x 16 (total Max. 200W)
PoE Management Supported
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
External Interface USB (Front x1: USB 3.0, Back x1: USB 2.0)
Alarm In 4
Alarm Out 1
Audio In 3.5 Phone Jack Audio Input x1 (HW available, FW feature not supported yet)
Audio Out 3.5 Phone Jack Audio Output x1

System

Camera Integration ONVIF Profile S
Event Motion Detection, Smart VCA Event, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error
Event Action Video Recording, Email with Snapshot, Buzzer, PTZ, FTP, DO (camera, system), Full Screen, Send to CMS, VIVOCloud APP Notification
User Management User Level: Administrator, Regular User
Log System, Recording, User, Error
Date & Time Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Language Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic

Advanced Features

VCA Counting Solution Supported
VCA Event Search Supported
Trend Micro IoT Security Supported (3-year free trial)
Cybersecurity Management Supported

Remote Client & Mobile App

Remote Client Software Shepherd, VAST 2, VSS
Mobile/Tablet App iViewer (Android & iOS)
Web Browser Internet Explorer 10 (32-bit) or later/Windows, Chrome v68.0.3 or later/Windows for new web
Cloud Service VIVOCloud

General

Power Input 100-240V AC, 50/60Hz
Power Consumption Max. 255W
Dimensions 366 (W) x 320 (D) x 46 (H)mm
Weight 2.5 kg (without HDD)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Humidity 0 ~ 95%
Safety Certifications CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
