Vivotek

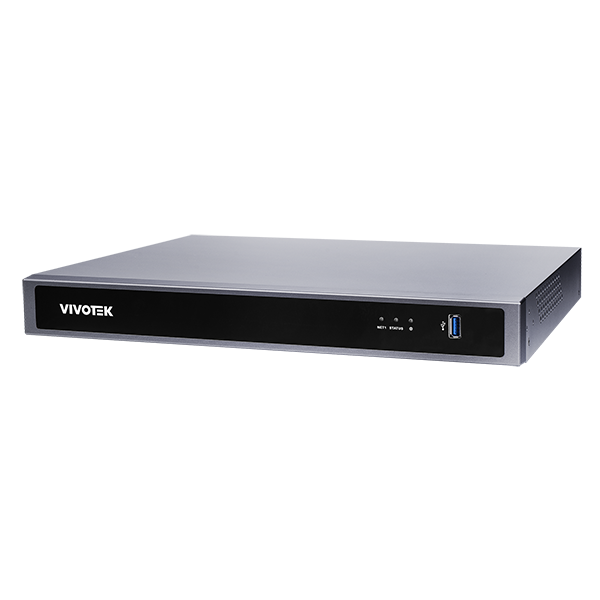

Vivotek Core+ AI H.265 8-CH Embedded PoE NVR - ND9326P

Vivotek Core+ AI H.265 8-CH Embedded PoE NVR - ND9326P

$680.00 USD
$680.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Specification

Device

Feature Specification
OS Embedded Linux
Watchdog Hardware + Software
Power Restoration System Restart Automatically after Power Recovery

Display

Feature Specification
LiveView Display 8 Channels
Multi Layout Display 1x1, 2x2, 3x3, 1M+5, 1P+3, 1P+6, 2P+3, 3V
Video Output HDMI x1, VGA x1
Display Resolution 3840x2160, 1920x1080, 1280x720
Dual Monitor Supported

Stream Application

Feature Specification
Constant/Auto Adaptive Stream Supported
Fisheye Dewarp Local: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R
Web: 1O, 1R, 1P

PTZ Operation

Feature Specification
Direction Control Supported
Home Supported
Iris Supported
Preset Supported
Patrol (Group) Supported

Video

Feature Specification
Video Format MJPEG, H.264, H.265
Graphic Decoder Hardware decoding
Decoding Resolution Up to 7680x2560
Decoding Capability H.265/H.264: 3840x2160 @ 120 fps
1920x1080 @ 480 fps

Audio

Feature Specification
Audio Format G.711, G.726, MPEG-2 AAC-LC
Recording Pre-Record: 5 sec (Max. 10)
Post-Record: 20 sec (Max. 300)
Recording Stream Dual
Recording Throughput 192Mbps

Storage & Backup

Feature Specification
DISK Devices Internal x2 (3.5")
HDD Max. Capacity Refer to HDD supported list on VIVOTEK website
RAID RAID 0, 1
Disk Management Create, Format and Remove Disk
HDD S.M.A.R.T
External Storage USB Storage (USB 3.0)
Video Clip Export USB pen drive (FAT Format)
Schedule Backup FTP

Playback

Feature Specification
Playback Display 4 Channels
Multi Layout Display 1x1, 2x2, 1P+3, 3V
Playback Control Regular (Play, Pause, Stop), Rewind, Next/Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)
Video Search By Calendar, Date/Time, and Alarm
Thumbnail Explorer Listing the thumbnail of recorded video (Max. 2 CH)
Snapshot JPEG
Video Clip Export EXE

Network

Feature Specification
Ethernet 10/100/1000Mbps Ethernet (RJ-45) x 2
Network Throughput 224 Mbps
PoE 802.3at/af Compliant PoE Ports x 8 (Total Max. 120W)
PoE Management Supported
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS

External Interface

Feature Specification
USB Front: 1 (USB 3.0)
Back: 2 (USB 2.0)
Alarm In 4
Alarm Out 1
Audio In 3.5 Phone Jack Audio Input x1
Audio Out 3.5 Phone Jack Audio Output x1

System

Feature Specification
Camera Integration ONVIF Profile S
Event Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Video loss
Event Action Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, APP Notification by cloud service
User Management User level: administrator, regular user
Log System, Recording, User, Error
Date&Time Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time

Advanced Features

Feature Specification
VCA Counting Solution Supported
VCA Event Search Smart VCA, Smart 360 VCA
Smart Search II Supported
Trend Micro IoT Security Supported (3-year free trial)
Cybersecurity Management Supported

Remote Client

Feature Specification
Software AP Shepherd, VSS
Mobile/Tablet App iViewer (Android & iOS)
Web Browser Chrome
Cloud service VORTEX Connect

General

Feature Specification
Power Input 100-240V AC, 50/60Hz
Power Consumption Max. 190W
Dimensions 365 (W) x 315 (D) x 44 (H)mm
Weight 2.65 kg (without HDD)
Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)
Humidity 0 ~ 95%
Safety Certifications CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
