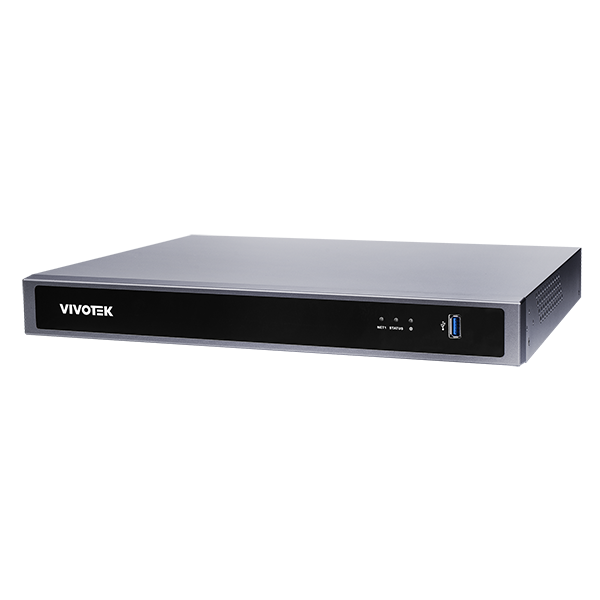

Vivotek Core+ AI H.265 16-CH Embedded PoE NVR - ND9426P

Vivotek Core+ AI H.265 16-CH Embedded PoE NVR - ND9426P

$765.00 USD
$765.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Specification

Device 16-CH Embedded PoE NVR
OS Embedded Linux
Watchdog Hardware + Software
Power Restoration System Restart Automatically after Power Recovery

Technical Specifications

Display LiveView Display 16 Channels
Multi Layout Display 1x1, 2x2, 3x3, 4x4, 1M+5, 1M+12, 1P+3, 1P+6, 2P+3, 3V
Video Output HDMI x1, VGA x1
Display Resolution 3840x2160, 1920x1080, 1280x720
Dual Monitor Supported
Stream Application Constant\Auto Adaptive Stream
Fisheye Dewarp Local: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R
Web: 1O, 1R, 1P
PTZ Operation Direction Control, Home, Iris, Preset, Patrol (Group)

Video

Video Format MJPEG, H.264, H.265
Graphic Decoder Hardware decoding
Decoding Resolution Up to 7680x2560
Decoding Capability H.265/H.264: 3840x2160 @ 120 fps, 1920x1080 @ 480 fps

Audio

Audio Format G.711, G.726, MPEG-2 AAC-LC

Record

Recording Time (sec.) Pre-Record: 5 (Max. 10), Post-Record: 20 (Max. 300)
Recording Stream Dual
Recording Throughput 192Mbps
Recording Mode Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
Recording Setting Recycle (unit: Day)
Watermark Supported
Seamless Recording Supported

Storage & Backup

DISK Devices Internal x2 (3.5") (HDD is purchased separately)
HDD Max. Capacity Please refer to HDD supported list on VIVOTEK website
RAID RAID 0, 1
Disk Management Create, Format and Remove Disk, HDD S.M.A.R.T
External Storage USB Storage (USB 3.0)
Video Clip Export USB pen drive (FAT Format)
Schedule Backup FTP

Playback

Playback Display 4 Channels
Multi Layout Display 1x1, 2x2, 1P+3, 3V
Playback Control Regular (Play, Pause, Stop), Rewind, Next/Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)
Video Search By Calendar, Date/Time, and Alarm
Thumbnail Explorer Listing the thumbnail of recorded video (Max. 2 CH)
Snapshot JPEG
Video Clip Export EXE

Network

Ethernet 10/100/1000Mbps Ethernet (RJ-45) x 2
Network Throughput in total 224 Mbps
PoE 802.3at/af Compliant PoE Ports x 16 (Total Max. 200W)
PoE Management Supported
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS

External Interface

USB Front: 1 (USB 3.0), Back: 2 (USB 2.0)
Alarm In 4
Alarm Out 1
Audio In 3.5 Phone Jack Audio Input x1 (HW available, FW feature not supported yet)
Audio Out 3.5 Phone Jack Audio Output x1

System

Camera Integration ONVIF Profile S
Event Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Video loss
Event Action Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, APP Notification by cloud service
User Management User level: administrator, regular user
Log System, Recording, User, Error
Date&Time Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Language Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic
Deep Search Object search (People, Vehicle), Scene search (Line crossing, Intrusion, Loitering), Attribute search (People: Gender, Age, Clothing Color, Accessories; Vehicles: Type, Color)

Advance Features

VCA Counting Solution Supported
VCA Event Search Smart VCA, Smart 360 VCA
Smart Search II Supported
Trend Micro IoT Security Supported (3-year free trial)
Cybersecurity Management Supported

Remote Client

Software AP Shepherd, VSS
Mobile/Tablet App iViewer(Android & iOS)
Web Browser Chrome
Cloud Service VORTEX Connect

General

Power Input 100-240V AC, 50/60Hz
Power Consumption Max. 270W
Dimensions 365 (W) x 315 (D) x 44 (H) mm
Weight 2.78 kg (without HDD)
Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)
Humidity 0 ~ 95%
Safety Certifications CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
