Vivotek

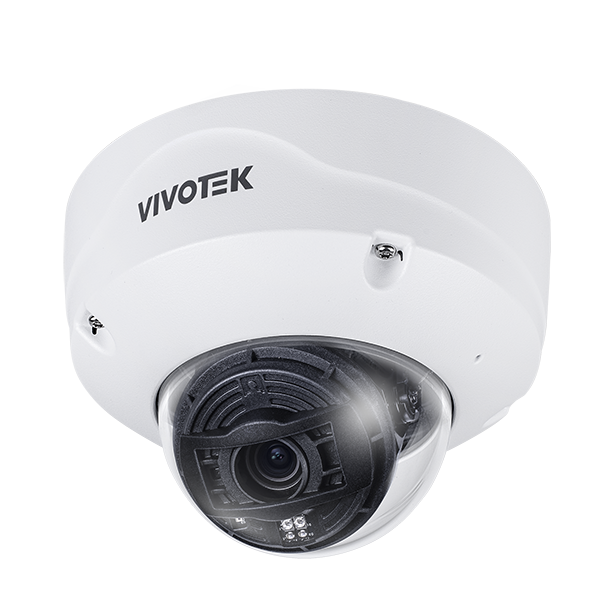

Vivotek 8MP Outdoor Fixed Dome AI Camera - FD9391-EHTV-V2
Vivotek 8MP Outdoor Fixed Dome AI Camera - FD9391-EHTV-V2
Regular price
$1,550.00 USD
Regular price
Sale price
$1,550.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
System Information
| Component | Specification |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
Camera Specifications
| Component | Specification |
|---|---|
| Image Sensor | 1/1.8" Progressive CMOS |
| Max. Resolution | 3840x2160 (8MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 4.4 ~ 10.2 mm (equivalent focal length @ 1/2.8" is f = 2.8~10.3mm) |
| Aperture | F1.38 ~ F2.24 |
| Iris Type | P-iris |
| Field of View | 110° ~ 43° (Horizontal), 57° ~ 24° (Vertical), 133° ~ 49° (Diagonal) |
| Shutter Time | 1 sec. to 1/100,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 50 meters with Smart IR III, IR LED*4 (50IRE) |
| Minimum Illumination | 0.01 lux @ F1.38 (Color), <0.005 lux @ F1.38 (B/W), 0 lux with IR illumination |
| Pan Range | ±175° |
| Tilt Range | 80° |
| Rotation Range | ±175° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB Capacity Supported), Network-attached storage (NAS) |
Built-in Installation Aids
| Component | Specification |
|---|---|
| Installation Features | Remote focus, remote zoom, Micro USB*, pixel calculator |
| Note | Requires Wi-Fi dongle and Micro B converter |
Video Specifications
| Component | Specification |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 3840x2160 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 58 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality, constant bit rate control, Smart Stream III |
Image Settings
| Component | Specification |
|---|---|
| General Settings | Video title and timestamp overlay, Video orientation (flip, mirror, rotation), Day/night settings |
| Illuminators | Smart IR (target zone) |
| Image Settings | White balance, brightness, contrast, saturation, sharpness, gamma curve, defog, 3DNR, LDC, EIS, scene mode (auto, deblur) |
| Exposure | BLC, HLC, exposure control, AE speed adjustment, WDR |
| Focus | Zoom, focus |
| Privacy Mask | Pixel calculator |
| Scheduled Profile Settings | Yes |
Audio
| Component | Specification |
|---|---|
| Audio Capability | Two-way audio (Full duplex) |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone, External microphone Input, External line output |
| Effective Range | 5 meters |
Network
| Component | Specification |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | Access list, Audit log, Configurable password protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Signed firmware, Trend Micro IoT Security |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet |
| ONVIF | Profile G, S, T supported |
AI Analytics
| Component | Specification |
|---|---|
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection (People, Vehicle detection, Attributes like gender, color, type) |
| Application | Smart Motion Detection, Smart VCA (Intrusion, Loitering, Line crossing, Unattended object detection, Face detection, Crowd detection) |
| AI-powered Image Enhancement | Smart IR III, RealSight Engine (Smart IR III, Deblur, WDR) |
Alarm and Event
| Component | Specification |
|---|---|
| Event Trigger | Audio detection, camera tampering, cybersecurity events, digital input, motion detection, SD card life expectancy |
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server |
General
| Component | Specification |
|---|---|
| Connectors | RJ-45, Audio line input/output, DC 12V, AC 24V power input, Digital I/O (2), Micro USB |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V/DC 12V, IEEE 802.3at PoE Class 4 |
| Power Consumption | PoE: 14.25/10.81 W, DC 12V: 14.40/10.96 W, AC 24V: 11.64/8.20 W |
| Dimensions | ø 174 x 123 mm |
| Weight | 1.39 kg |
Certifications
| Component | Specification |
|---|---|
| EMC | CE, FCC, UKCA, RCM, VCCI, IC |
| Safety | UL, CB, LVD, UKCA |
| Environment | IK10+, IP66/67, NEMA Type 4X, IP6K9K, IEC 60068-2-11 |
| IA | BIS, BSMI |
Operating Conditions
| Component | Specification |
|---|---|
| Operating Temperature | -50°C ~ 60°C (IR off), -50°C ~ 50°C (IR on) |
| Humidity | 98% RH (non-condensing) |
System Requirements
| Component | Specification |
|---|---|
| Operating System | Windows 10/8/7, Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0+, Internet Explorer 11 |
| Other Players | VLC: 1.1.11 or above |
