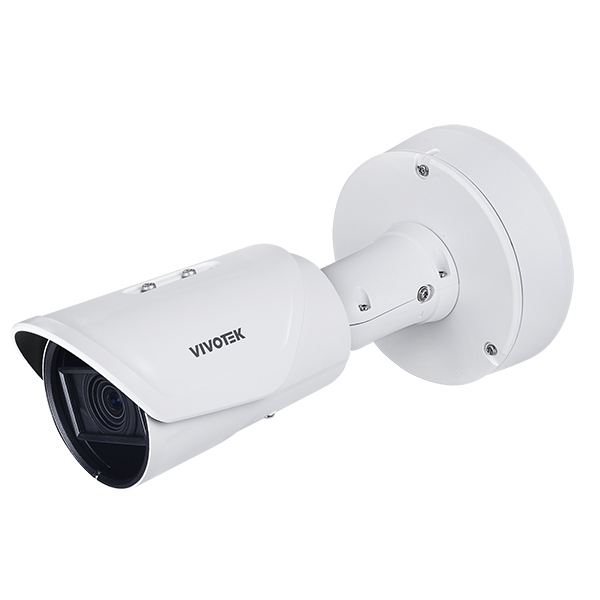

Vivotek 8MP Outdoor Bullet AI Camera - IB9391-EHTV-V2
Vivotek 8MP Outdoor Bullet AI Camera - IB9391-EHTV-V2
Regular price
$1,550.00 USD
Regular price
Sale price
$1,550.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
System Information
| Component | Specification |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
Camera Specifications
| Feature | Specification |
|---|---|
| Image Sensor | 1/1.8" Progressive CMOS |
| Max. Resolution | 3840x2160 (8MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 4.4 ~ 10.2 mm (equivalent f = 3.2 ~ 10.3mm) |
| Aperture | F1.38 ~ F2.24 |
| Iris Type | P-iris |
| Field of View | Horizontal: 100° ~ 43° Vertical: 50° ~ 24° Diagonal: 110° ~ 49° |
| Shutter Time | 1 sec to 1/100,000 sec |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-Cut Filter | Yes |
| Illuminators | Built-in IR illuminators (up to 50 meters with Smart IR III, IR LED*4) |
| Minimum Illumination | Color: 0.01 lux @ F1.38 B/W: <0.005 lux @ F1.38 0 lux with IR illumination |
| Pan Range | ±180° |
| Tilt Range | 90° |
| Rotation Range | ±180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
Storage
| Feature | Specification |
|---|---|
| Storage Type | MicroSD/SDHC/SDXC (1TB supported), NAS recording |
| Built-in Installation Aids | Remote focus, remote zoom, Micro USB*, pixel calculator *Requires Wi-Fi dongle and Micro B converter |
Video Specifications
| Feature | Specification |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 3840x2160 |
| Maximum Streams | 3 video streams (up to 8 configurable profiles) |
| S/N Ratio | 58 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality, constant bit rate control, Smart Stream III |
Audio
| Feature | Specification |
|---|---|
| Audio Capability | Two-way audio (Full duplex) |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | External microphone input, external line output |
Network Specifications
| Feature | Specification |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | Access list, configurable password protection, HTTPS, secure boot, Trend Micro IoT Security, signed firmware |
| Protocols | 802.1X, ARP, IPv4/IPv6, RTSP/RTP/RTCP, TLS 1.2, UPnP |
AI Analytics
| Feature | Specification |
|---|---|
| Object Detection | People, vehicles (2-wheeled, 4-wheeled) |
| Attribute Extraction | People: gender, color, bag, hat Vehicles: type, color |
| Applications | Smart Motion Detection, VCA (Intrusion, Loitering, Line Crossing, etc.) |
| AI-Powered Features | Smart IR III, Deblur, WDR, White Balance, Exposure Control |
Power & Physical Specifications
| Feature | Specification |
|---|---|
| Power Input | AC 24V, DC 12V, PoE IEEE 802.3at (Class 4) |
| Power Consumption | PoE: 19.38/15.80 W (IR on/off) DC: 15.84/12.26 W (IR on/off) |
| Dimensions | Ø 153 x 283 mm |
| Weight | 1.87 kg |
Environmental Specifications
| Feature | Specification |
|---|---|
| Operating Temperature | Starting: -30°C ~ 60°C (-22°F ~ 140°F) Working: -50°C ~ 60°C (IR off) / -50°C ~ 50°C (IR on) |
| Humidity | 98% RH (non-condensing) |
| Certifications | EMC: CE, FCC, RCM, VCCI Safety: UL, CB, LVD Environment: IK10, IP66/67, NEMA |
