Vivotek

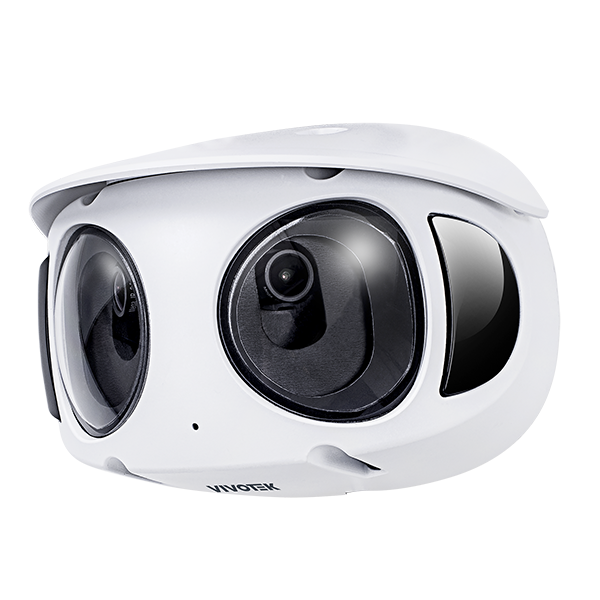

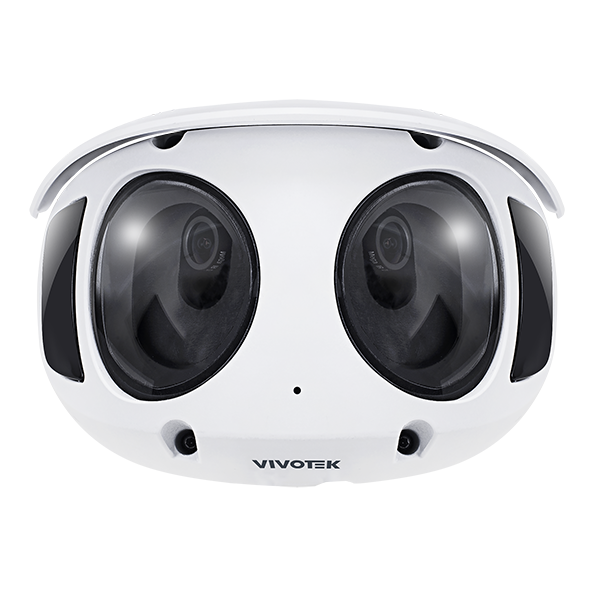

Vivotek 8MP Multi-sensor Panoramic AI Camera - MS9390-EHV-V2
Vivotek 8MP Multi-sensor Panoramic AI Camera - MS9390-EHV-V2
Regular price
$1,500.00 USD
Regular price
Sale price
$1,500.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Category | Details |
|---|---|
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8GB |
| RAM | 4GB |
Camera Specifications
| Category | Details |
|---|---|
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 4864x1632 (8MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F1.2 |
| Iris Type | Fixed iris |
| Field of View | 180° (Horizontal), 50° (Vertical), 180° (Diagonal) |
| Shutter Time | 1/30 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators up to 20 meters with Smart IR, IR LED*8 |
| Minimum Illumination | 0.018 lux @ F1.2 (Color), 0.01 lux @ F1.2 (B/W), 0 lux with IR on |
| Tilt Range | 20° |
| Storage | Seamless recording to MicroSD/SDHC/SDXC (1TB supported), NAS |
| Built-in Installation Aids | Pixel calculator |
Video
| Category | Details |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 4864x1632 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 57.9 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality, bit rate control, Smart Stream III |
| Image Settings | Video title, timestamp overlay, day/night settings, white balance, etc. |
| Exposure | BLC, HLC, exposure control, AE speed adjustment, WDR |
| Privacy Mask | Yes |
| Lens Alignment | Yes |
| Scheduled Profile Settings | Yes |
Audio
| Category | Details |
|---|---|
| Audio Capability | One-way Audio |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone |
| Effective Range | 5 meters |
Network
| Category | Details |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | Access list, CSRF protection, digest authentication, HTTPS, etc. |
| Protocols | 802.1X, ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, SNMP, and more |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ-45) |
| ONVIF | Profile G, S, T supported |
AI Analytics
| Category | Details |
|---|---|
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object detection (people, vehicle) |
| Attribute Extraction | People (gender, color, bag, hat), Vehicle (bike, bus, car, etc.) |
| Re-Search Extraction | Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) |
| Available Applications | Running detection, Parking Violation Detection, Restricted Zone Detection |
Alarm and Event
| Category | Details |
|---|---|
| Event Trigger | Audio detection, camera tampering, motion detection, etc. |
| Event Action | Event notifications via email, push, FTP, NAS server, SD card, etc. |
General
| Category | Details |
|---|---|
| Connectors | RJ-45, Audio input, output, Digital input, Digital output (DO+) |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3at PoE Class 4 |
| Power Consumption | Max. 20 W/13.5W (IR on/off) |
| Dimensions | 165 x 112 x 119 mm |
| Weight | 1.2 kg |
Certifications
| Category | Details |
|---|---|
| EMC | CE, UKCA, FCC, RCM, VCCI, ICES-003, etc. |
| Safety | UL, CB, LVD, UKCA |
| Environment | IK10, IP66, IA |
Operating Conditions
| Category | Details |
|---|---|
| Operating Temperature | Starting: -30°C ~ 55°C, Working: -40°C ~ 55°C (IR off), -40°C ~ 50°C (IR on) |
| Humidity | 98% RH (non-condensing) |
System Requirements
| Category | Details |
|---|---|
| Operating System | Microsoft Windows 10/8/7, Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above, Internet Explorer 10/11 |
| Other Players | VLC 1.1.11 or above |
