Vivotek

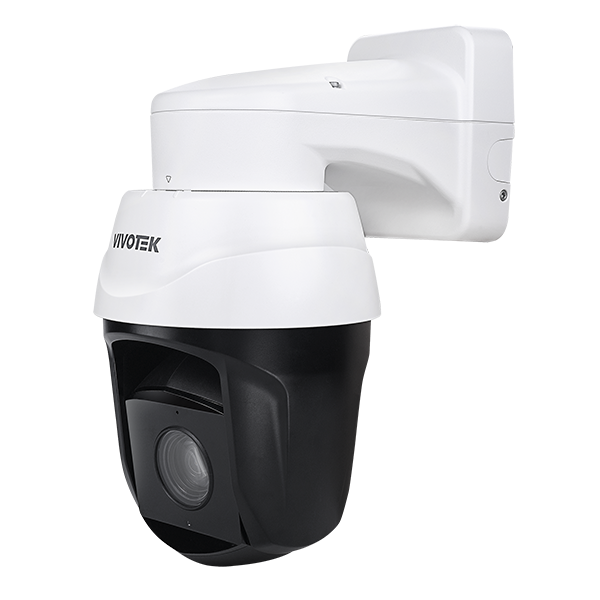

Vivotek 8MP AI PTZ Camera - SD9394-EHL
Vivotek 8MP AI PTZ Camera - SD9394-EHL
Regular price
$5,000.00 USD
Regular price
Sale price
$5,000.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
System Information
| Component | Specification |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
Camera Specifications
| Component | Specification |
|---|---|
| Image Sensor | 1/1.8" Progressive CMOS |
| Max. Resolution | 3840x2160 (8M) |
| Lens Type | 32x Optical Zoom, Auto Focus |
| Focal Length | 6.5~212mm (32x zoom) |
| Aperture | F1.4~4.9 |
| Iris Type | P-Iris |
| Field of View (Horizontal) | 63.5° ~ 2.0° |
| Field of View (Vertical) | 37.4° ~ 1.1° |
| Field of View (Diagonal) | 70.7° ~ 2.3° |
| Shutter Time | 1 sec. to 1/100,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators up to 250 meters with Smart IR, IR LED*8 |
| Minimum Illumination (Color) | 0.02 lux @ F1.4 (30IRE) |
| Minimum Illumination (B/W) | <0.005 lux @ F1.4 |
| Pan Speed | 0.05° ~ 450°/sec |
| Pan Range | 360° endless |
| Tilt Speed | 0.05° ~ 450°/sec |
| Tilt Range | 110° |
| Preset Location | 256 preset locations, 128 presets per tour |
| Pan/Tilt/Zoom Functionalities | 32x digital zoom (4x on IE plug-in, 8x built-in), Auto Pan mode, Auto Patrol mode, Mechanical Auto flip |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to NAS |
| Built-in Installation Aids | Remote focus, remote zoom |
Video
| Component | Specification |
|---|---|
| Compression | H265, H264, MJPEG |
| Maximum Frame Rate | 30 fps @ 3840x2160 (WDR on) |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 67 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality, and constrained bit rate control, Smart Stream III |
| Image Settings | Video settings, video orientation (flip, mirror), day/night settings, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, EIS (built-in gyro sensor), scene mode (auto) |
| Exposure | Exposure strategy (measurement window, metering mode), exposure control (level, iris adjustment, exposure time, gain control), AE speed adjustment, WDR |
Audio
| Component | Specification |
|---|---|
| Audio Capability | Two-Way Audio (full duplex) |
| Compression | MPEG-2 AAC-LC, G.711, G.726 |
| Interface | External line input, External line output |
Network
| Component | Specification |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45), CAT5e & CAT6 cables recommended |
| ONVIF | Profile G, S, T supported |
AI Analytics
| Component | Specification |
|---|---|
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection (People, Vehicle), Attribute Extraction (People: gender, clothing color, bag, hat, Vehicle: bike, bus, car, motorcycle, truck, color), Re-Search Extraction, Path Extraction |
| Application | Deep Learning VCA (Smart Tracking Advanced), Intrusion detection, Loitering detection, Line crossing detection, Face detection, Unattended object detection, Missing object detection, Parking Violation Detection, Restricted Zone Detection (license required) |
Alarm and Event
| Component | Specification |
|---|---|
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events, digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, smart tracking advanced trigger, system boot, preset reached |
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification |
General
| Component | Specification |
|---|---|
| Connectors | RJ-45 cable connector, Audio line input, Audio line output, DC 48V power input, AC 24V power input, Digital input2, Digital output1, RS-485*1 |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V, DC48V, IEEE 802.3 bt Class 6 PoE (Simultaneous Power Redundancy Supported) |
| Power Consumption | PoE: Max: 51W/26W (IR on/off), DC 48V: Max: 51W/26W (IR on/off), AC 24V: Max: 51W/26W (IR on/off) |
| Dimensions | 256 x 336 mm |
| Weight | 7.3 kg |
Certifications
| Category | Specification |
|---|---|
| EMC | CE (EN 55032 Class A, EN55035, EN50121-4), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003:2020 Issue7, Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A) |
| Safety | UKCA (BS EN 62368-1:2014+A11:2017), UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) |
| Environment | IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X) |
| IA | BIS (IS 13252), BSMI (Optional) |
Operating Conditions
| Category | Specification |
|---|---|
| Operating Temperature | Starting Temperature: -40°C ~ 55°C, Working Temperature: -40°C ~ 55°C (IR off), -40°C ~ 50°C (IR on) |
| Humidity | 98% RH (non-condensing) |
System Requirements
| Component | Specification |
|---|---|
| Operating System | Microsoft Windows 10/8/7, Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above, Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
