Vivotek

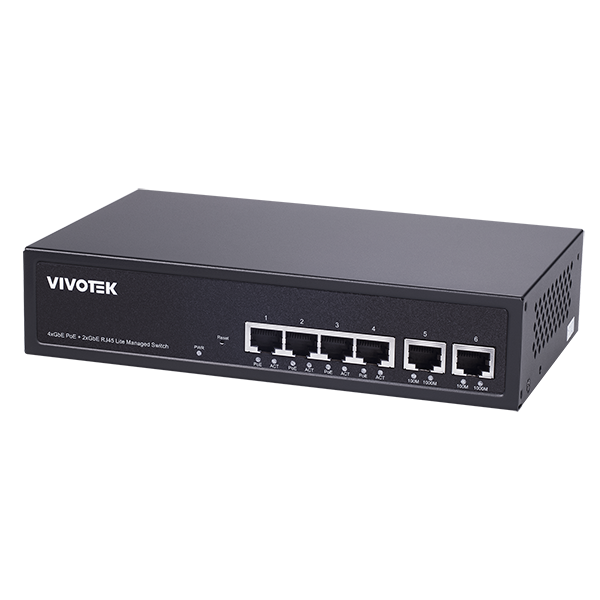

Vivotek 6 Ports Lite Managed PoE Switch - AW-GEL-065A-060
Vivotek 6 Ports Lite Managed PoE Switch - AW-GEL-065A-060
Regular price
$160.00 USD
Regular price
Sale price
$160.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Specification | Details |
|---|---|
| Segment | Lite Managed PoE Switch |
| Product Description | 4xGbE PoE + 2xGbE RJ45 Lite Managed Switch |
| PoE Port Ethernet | 4xGbE PoE |
| Uplink Port Ethernet | 2xGbE RJ45 |
| Total Ports | 6 |
| PoE Function | PoE Port |
| Max. PoE Output Power | 30W |
| PoE Power Budget | 60W |
| PoE Standard | 802.3 af/at |
| PoE Pin Assignment | 1/2 (+), 3/6 (-) |
| Surge Protection | 4KV |
| Switching Bandwidth | 12 Gbps |
| Buffer Memory | 1Mb |
| Forwarding Rate | 8.928 Mpps |
| MAC Address | 4k |
| Jumbo Frames | 9216 Bytes |
| Max. Power Consumption | 65W |
L2 Managed Features
| Feature | Details |
|---|---|
| Spanning Tree | IEEE802.1D (STP), IEEE802.1w (RSTP) |
| Trunking | IEEE802.1d (LACP) |
| Static Aggregation | Supported |
| VLAN | 802.1Q Tag-based VLAN, 4096 VLAN IDs |
| Port-based VLAN | Supported |
| Management | Port Mirroring, Firmware Upgrade |
| PoE Management | PoE On/Off Control, PoE Alive Checking for PD, Non-Stop PoE, Extended PoE Mode (up to 250m/10mbps) |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 10 ~ 90% RH |
Mechanical Specifications
| Specification | Details |
|---|---|
| Dimensions | 200 (W) x 118 (D) x 44 (H) mm |
| Weight | 0.66 kg |
Power Source
| Specification | Details |
|---|---|
| Power Input | 100V ~ 240V |
| Frequency | 50 ~ 60 Hz |
Certifications
| Specification | Details |
|---|---|
| Types | CE, FCC, UKCA, LVD, VCCI, BSMI |
