Vivotek

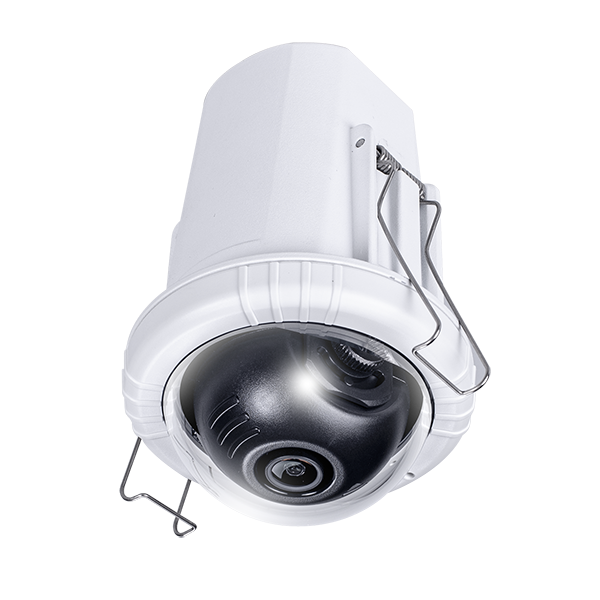

Vivotek 5MP Recessed Dome Network Camera - FD9182-H
Vivotek 5MP Recessed Dome Network Camera - FD9182-H
Regular price
$380.00 USD
Regular price
Sale price
$380.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specifications
System Information
| Feature | Details |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 512 MB |
Camera Specifications
| Feature | Details |
|---|---|
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F2.0 |
| Iris Type | Fixed iris |
| Field of View | Horizontal: 103° Vertical: 76° Diagonal: 134° |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR PRO |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Minimum Illumination | 0.03 lux @ F2.0 (Color) <0.005 lux @ F2.0 (B/W) |
| Pan Range | ±80° |
| Tilt Range | 65° |
| PTZ Functionalities | 48x digital zoom (4x on IE, 12x built-in) |
| Storage | MicroSD/SDHC/SDXC card (1TB capacity supported), NAS |
Video
| Feature | Details |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Max. Frame Rate | 20 fps @ 2560x1920 |
| Max. Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 65 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality, Smart Stream III |
| Image Settings | Brightness, contrast, saturation, sharpness, WDR, privacy masks |
Audio
| Feature | Details |
|---|---|
| Audio Capability | One-way Audio |
| Compression | G.711/G.726 |
| Interface | Built-in microphone |
| Effective Range | 5 meters |
Network
| Feature | Details |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security |
| Protocols | IPv4, IPv6, RTSP, TLS 1.2, DDNS, FTP, etc. |
| Interface | 10/100 Mbps Ethernet (RJ-45) |
| ONVIF | Profile G, S, T supported |
Solution Integration
| Feature | Details |
|---|---|
| Event Triggers | Audio detection, motion detection, tampering, cybersecurity events |
| Event Actions | Notifications via email, FTP, NAS, SD card |
General
| Feature | Details |
|---|---|
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | PoE: Max. 3.6W |
| Dimensions | ø 82 x 122 mm |
| Weight | 353 g |
| Certifications | CE, FCC, UL, IK10 (metal housing) |
| Operating Temp. | -10°C to 50°C (14°F to 140°F) |
| Humidity | 90% RH (non-condensing) |
System Requirements
| Feature | Details |
|---|---|
| Operating System | Windows 10/8/7, Mac 10.12 (Chrome only) |
| Browser | Chrome 58.0 or above, IE 11 |
| Other Players | VLC 1.1.11 or above |
