Vivotek

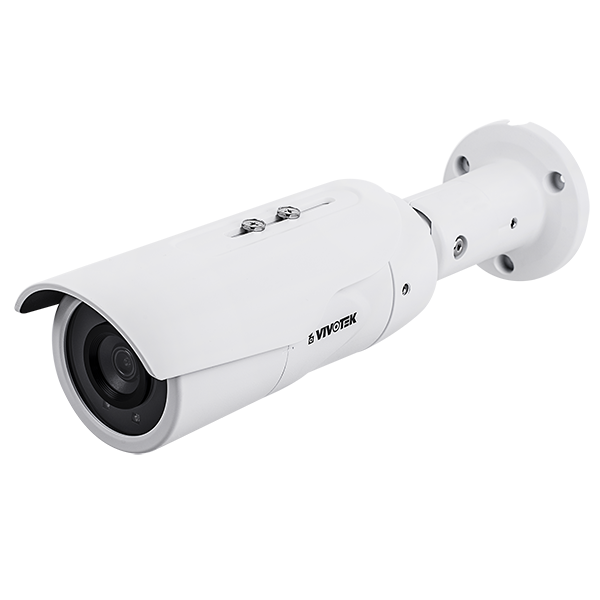

Vivotek 5MP Outdoor Bullet AI Camera - IB9389-EH-V2
Vivotek 5MP Outdoor Bullet AI Camera - IB9389-EH-V2
Regular price
$421.20 USD
Regular price
Sale price
$421.20 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
System Information
| Component | Specification |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 1 GB |
Camera Specifications
| Feature | Specification |
|---|---|
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 3.6 mm |
| Aperture | F2.0 |
| Iris Type | Fixed iris |
| Field of View | 76° (H), 56° (V), 100° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| IR-cut Filter | Removable |
| Illuminators | Built-in IR, up to 30 meters, Smart IR LED |
| Min. Illumination | 0.06 lux (Color), 0.01 lux (B/W), 0 lux (IR) |
| Tilt Range | 90° |
| Rotation Range | 180° |
Pan/Tilt/Zoom Functionalities
| Feature | Specification |
|---|---|
| ePTZ | 48x digital zoom (4x on IE plug-in, 12x built-in) |
Storage
| Feature | Specification |
|---|---|
| Recording | MicroSD/SDHC/SDXC (1TB), NAS supported |
Video
| Feature | Specification |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Max. Frame Rate | 30 fps @ 5MP (WDR on), 60 fps @ 2MP (WDR off) |
| Max. Streams | 3 streams (8 profiles) |
| S/N Ratio | > 55dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality, bit rate |
Image Settings
| General | Settings |
|---|---|
| Settings | Overlay, orientation, defog, 3DNR, EIS, scene modes |
| Exposure | BLC, HLC, WDR, AE speed, gain control |
| Privacy Mask | Yes |
Network
| Feature | Specification |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | HTTPS, Secure boot, Signed firmware |
| Protocols | IPv4, IPv6, RTSP, SNMP, TLS 1.2, UPnP |
| Interface | RJ-45 (10/100 Mbps PoE) |
| ONVIF | Profiles G, S, T |
AI Analytics
| Feature | Capability |
|---|---|
| Object Detection | People, vehicles |
| Attributes | Gender, color, bag, hat, vehicle type |
| Smart Detection | Motion, loitering, face detection, etc. |
Power and Environment
| Feature | Specification |
|---|---|
| Power Input | IEEE 802.3af PoE Class 0 |
| Power Consumption | Max 11 W (IR on), 8 W (IR off) |
| Operating Temp. | -40°C to 60°C (-40°F to 140°F) |
| Humidity | 98% RH (non-condensing) |
Certifications
| Type | Details |
|---|---|
| EMC | CE, FCC, RCM, VCCI |
| Safety | UL, CB |
| Environment | IK10, IP66 |
