Vivotek

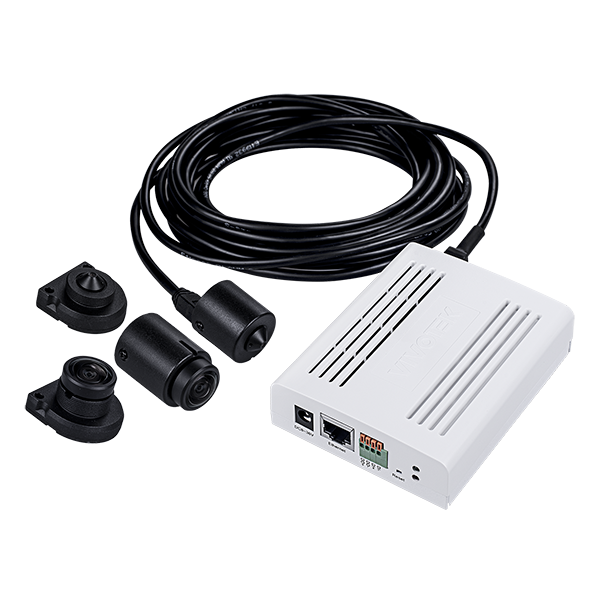

Vivotek 5MP Modular Network Camera - VC9101
Vivotek 5MP Modular Network Camera - VC9101
Regular price
$370.00 USD
Regular price
Sale price
$370.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
System Information
| Specification | Details |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
Camera Specifications
| Specification | Details |
|---|---|
| Max. Resolution | Depends on CU version; 2688x1520/1920x1920 |
| WDR Technology | WDR Pro |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card slot (1TB test Required) and recording to network-attached storage (NAS) |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | Depends on CU sensor |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| Dynamic Range | 120 dB |
Audio
| Specification | Details |
|---|---|
| Audio Capability | Two-way Audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | External microphone input; External line output |
Network
| Specification | Details |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, CSRF protection |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
AI Analytics
| Specification | Details |
|---|---|
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection (People, Vehicle - 4-wheeled, 2-wheeled) |
| Attribute Extraction | People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) |
| Re-Search Extraction | Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) |
| Application Available with License | Running detection, Parking Violation Detection, Restricted Zone Detection |
| Solution Integration | VADP Package, Trend Micro IoT Security (Default 3 years), Face Check |
Alarm and Event
| Specification | Details |
|---|---|
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot |
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification, File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
General
| Specification | Details |
|---|---|
| Connectors | RJ-45 cable connector for 10/100Mbps Network/PoE connection, Audio line input, Audio line output, DC 12V power input, Digital input *1, Digital output *1 (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) |
| LED Indicator | System power and status indicator |
| Power Input | DC 8V-36V, IEEE 802.3af PoE Class 0 (Simultaneous Power Redundancy Supported) |
| Power Consumption | < 8.5W |
| Dimensions | 105 (W) x 84 (D) x 30 (H) mm |
| Weight | 190 g |
Certifications
| Specification | Details |
|---|---|
| EMC | CE (EN55032, EN55024 Class B), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B) |
| Safety | UL (UL62368-1), CB (IEC/EN 62368-1) |
| Environment | IA |
| Operating Temperature | Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F), Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) |
| Humidity | Indoor series 90% RH (non-condensing) |
System Requirements
| Specification | Details |
|---|---|
| Operating System | Microsoft Windows 10/8/7, Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above, Internet Explorer 11 |
| Other Players | VLC: 1.1.11 or above |
