Vivotek

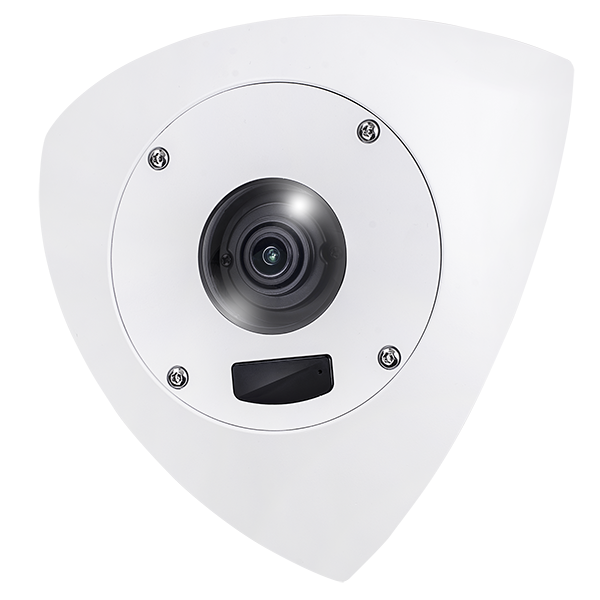

Vivotek 5MP Corner Dome AI Camera - CD9381-HNVF2
Vivotek 5MP Corner Dome AI Camera - CD9381-HNVF2
Regular price
$1,100.00 USD
Regular price
Sale price
$1,100.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specifications
| Category | Details |
|---|---|
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | eMMC 8 GB |
| RAM | DDR4 2 GB |
| Camera Specifications | |
|---|---|
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560 × 1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.4 mm |
| Aperture | F2.1 |
| Iris Type | Fixed-iris |
| Field of View | 124° (Horizontal), 92° (Vertical), 156° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in invisible IR illuminators, effective up to 10 meters with Smart IR, IR LED ×2 |
| Minimum Illumination | 0.07 lux (Color, 30IRE), <0.005 lux (B/W), 0 lux with IR on |
| Storage | |
|---|---|
| MicroSD Slot | Supports up to 1TB |
| Network Storage | Recording to NAS |
| Video | |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560 × 1920 (WDR Pro), 60 fps @ 1920 × 1080 (WDR off) |
| Streams | 3 video streams (up to 8 configurable profiles) |
| Audio | |
|---|---|
| Capability | Two-way audio (Full duplex) |
| Compression | G.711, G.726 |
| Network | |
|---|---|
| Protocols | 802.1X, IPv4, IPv6, HTTPS, FTP/SFTP, RTSP/RTP/RTCP, etc. |
| ONVIF | Profiles G, S, T |
| AI Analytics | |
|---|---|
| Object Detection | People, vehicles (2-wheeled, 4-wheeled) |
| Attributes | People (gender, clothing, accessories), Vehicles (type, color) |
| Smart Motion Detection | Intrusion, line crossing, loitering, unattended/missing object |
| General Information | |
|---|---|
| Operating Temp. | -10°C ~ 55°C |
| Power Input | PoE, DC 12V, AC 24V |
| Certifications | CE, FCC, IK10+, IP67, IP6K9K |
| Dimensions | 226 × 221 × 112 mm |
| Weight | 1.5 kg |
