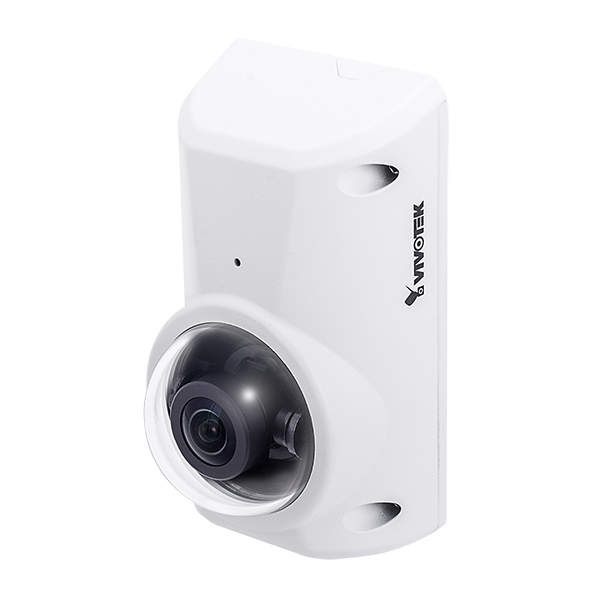

Vivotek 5MP Compact Panoramic Network Camera - CC9380-HV

System Information

• CPU:

  • Multimedia SoC (System-on-Chip)

• Flash:

  • 256 MB

• RAM:

  • 512 MB

Camera Specifications

• Image Sensor:

  • 1/2.7" Progressive CMOS

• Max. Resolution:

  • 2560x1920 (5MP)

• Lens Type:

  • Fixed-focal

• Focal Length:

  • f = 1.45 mm

• Aperture:

  • F2.2

• Iris Type:

  • Fixed iris

• Field of View:

  • Horizontal: 180°
  • Vertical: 120°
  • Diagonal: 180°

• Shutter Time:

  • 1/5 sec. to 1/32,000 sec.

• WDR Technology:

  • WDR Pro

• Day/Night:

  • Yes

• Removable IR-cut Filter:

  • Yes

• Minimum Illumination:

  • 0.11 lux @ F2.2 (Color)
  • 0.01 lux @ F2.2 (B/W)

• Tilt Range:

  • ±25°

• Pan/Tilt/Zoom Functionalities:

  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

• Storage:

  • Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported)
  • Recording to network-attached storage (NAS)

Video

• Compression:

  • H.265, H.264, MJPEG

• Maximum Frame Rate:

  • H.265:
    • 20 fps/30 fps @ 2560x1920 (WDR Pro on/off)
  • H.264:
    • 20 fps/25 fps @ 2560x1920 (WDR Pro on/off)
  • MJPEG:
    • 20 fps/20 fps @ 2560x1920 (WDR Pro on/off)

• Maximum Streams:

  • 3 video streams (Up to 8 configurable profiles)

• S/N Ratio:

  • 62 dB

• Dynamic Range:

  • 120 dB

• Video Streaming:

  • Adjustable resolution, quality, and constrained bit rate control
  • Smart Stream III

• Image Settings:

  • General Settings:
    • Video title and time stamp overlay
    • Video orientation (flip, mirror)
    • Day/night settings
  • Image Settings:
    • White balance
    • Image adjustment (brightness, contrast, saturation, sharpness, gamma curve)
    • Defog
    • 3DNR (3D Noise Reduction)
    • HLM (High Light Mode)
    • DIS (Digital Image Stabilization)
    • Scene mode (auto, deblur)

• Exposure Settings:

  • BLC (Backlight Compensation)
  • HLC (High Light Compensation)
  • Exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode)
  • AE speed adjustment
  • WDR (Wide Dynamic Range)

• Privacy Mask:

  • Yes

• Scheduled Profile Settings:

  • Yes

Audio

• Audio Capability:

  • One-way Audio

• Compression:

  • G.711, G.726

• Interface:

  • Built-in microphone

• Effective Range:

  • 5 meters

Network

• Users:

  • Live viewing for up to 10 clients

• Security:

  • Access list
  • Digest authentication
  • HTTPS
  • IEEE 802.1x
  • Password protection
  • Signed firmware
  • Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
  • User access log
  • User account management

• Protocols:

  • 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

• Interface:

  • 10Base-T/100 BaseTX Ethernet (RJ-45)
  • It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard

Solution Integration

Video Motion Detection:

• • Motion Detection (Five-window video motion detection)

Alarm and Event

• Event Trigger:

  • Audio detection
  • Camera tampering detection
  • Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
  • Manual trigger
  • Motion detection
  • Periodical trigger
  • Recording notification
  • SD card life expectancy
  • System boot

• Event Action:

  • Event notification via email, HTTP, FTP, NAS server, SD card, push notification
  • File upload via email, HTTP, FTP, NAS server, SD card

General

• Connectors:

  • RJ-45 cable connector for 10/100 Mbps Network/PoE connection

• LED Indicator:

  • System power and status indicator

• Power Input:

  • IEEE 802.3af PoE Class 1

• Power Consumption:

  • PoE: Max. 5W

• Dimensions:

  • 115 x 65 x 59 mm

• Weight:

  • 338 g

• Certifications (EMC):

  • CE (EN 55032 Class B, EN 55024)
  • FCC (FCC Part 15 Subpart B Class B)
  • VCCI (VCCI-CISPR 32 Class B)

• Certifications (Safety):

  • UL (UL 62368-1)
  • CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)

• Environment Certifications:

  • IK10 (IEC 62262)
  • IP66 (IEC 60529)

• IA Certifications:

  • BIS (IS 13252)

• Operating Temperature:

  • Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F)

• Humidity:

  • 90% RH (non-condensing)

System Requirements

• Operating System:

  • Microsoft Windows 10/8/7
  • Mac 10.12 (Chrome only)

• Web Browser:

  • Chrome 58.0 or above
  • Internet Explorer 10/11

• Other Players:

  • VLC: 1.1.11 or above
