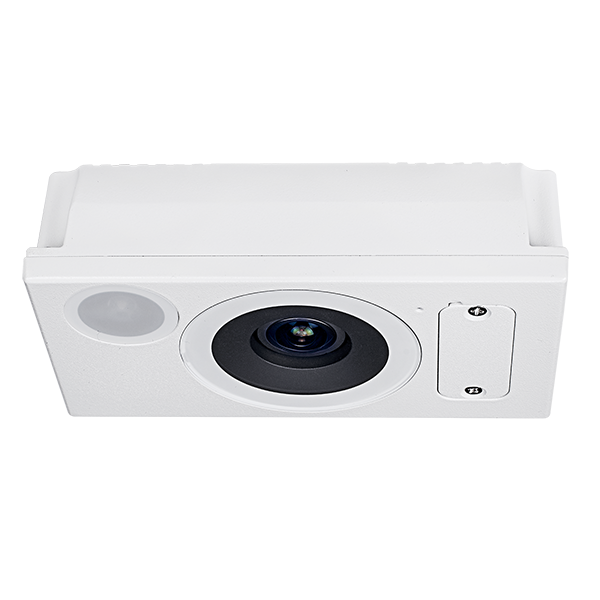

Vivotek 3MP Counting Network Camera - SC9133-RTL
Vivotek 3MP Counting Network Camera - SC9133-RTL
Regular price
$1,800.00 USD
Regular price
Sale price
$1,800.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Feature | Details |
|---|---|
| Product | Embedded Video Decoder |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8GB eMMC |
| RAM | 2GB |
| Power Input | PoE IEEE 802.3af Class 3, DC 9-48V |
| Power Consumption | PoE: Max. 12.5W, DC: Max. 13.3W |
| Dimensions (WxDxH) | 140 (D) x 76 (W) x 42 (H) mm |
| Weight | 492g |
| Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL, BIS, BSMI, UK CE |
| Operating Temperature | PoE/DC: Starting temperature: -30°C ~ 60°C (-22°F ~ 140°F), Working temperature: -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 90% |
System Information
| Category | Specification |
|---|---|
| OS | Windows 10/8/7, Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above, Internet Explorer 10/11 |
| Other Players | VLC 1.1.11 or above |
Camera Specifications
| Feature | Details |
|---|---|
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 1792 x 1792 (3MP) |
| Lens Type | Fixed Focal |
| Focal Length | f = 1.47mm |
| Aperture | F2.7 |
| Iris Type | Fixed-iris |
| Field of View | 140° (Horizontal), 140° (Vertical), 140° (Diagonal) |
| Shutter Time | 1/60 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | No |
| Illuminators | Built-in White Light & IR LED |
| Minimum Illumination | 0 lux with illumination on |
| Tilt Range | 0 ~ 20° |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB Capacity Supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Micro USB, pixel calculator (requires Wi-Fi dongle and Micro USB converter) |
Video
| Category | Specification |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 1792 x 1792 @ 30 fps, 896 x 896 @ 30 fps, 448 x 448 @ 30 fps |
| Maximum Streams | 4 simultaneous streams |
| Main Stream | 30fps @ 1792x1792, 896x896, 448x448 |
| 2nd Stream | 30fps @ 1792x1792, 896x896, 448x448 |
| 3rd Stream | 30fps @ 896x896, 448x448 |
| S/N Ratio | 60.7 dB |
| Dynamic Range | 92 dB |
| Image Settings | White balance, brightness, contrast, saturation, sharpness, gamma curve, defog, highlight mask, 3DNR, scene mode |
| Exposure | BLC, HLC, exposure control, AE speed adjustment, WDR |
| Privacy Mask | Yes |
Audio
| Feature | Details |
|---|---|
| Audio Capability | One-way audio |
| Compression | G.711, G.726 |
| Interface | Built-in microphone |
| Effective Range | 5 meters |
Network
| Feature | Details |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS, IBIS |
| Interface | 10Base-T/100BaseTX Ethernet (M12, Female, 4Pin, D-coded) |
AI Analytics
| Category | Specification |
|---|---|
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Application | Smart Counter |
| Available with License | Staff Exclusion |
| Solution Integration | VADP Package, Device Center, Trend Micro IoT Security (3-year free trial) |
Alarm and Event
| Feature | Details |
|---|---|
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot |
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card. File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
