Vivotek

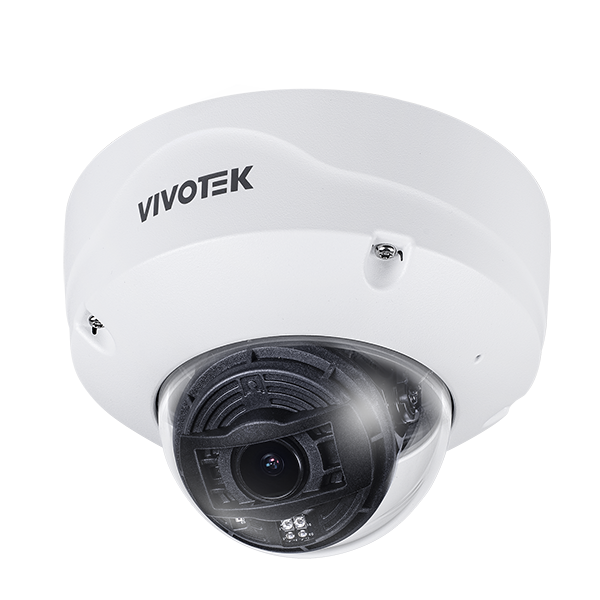

Vivotek 2MP Outdoor Fixed Dome Network Camera - FD9365-EHTV-V2
Vivotek 2MP Outdoor Fixed Dome Network Camera - FD9365-EHTV-V2
Regular price
$1,200.00 USD
Regular price
Sale price
$1,200.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specifications
| Category | Specification |
|---|---|
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
Camera Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1/2" Progressive CMOS |
| Max. Resolution | 1920x1080 (2MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 4 ~ 9 mm (f = 2.8 ~ 11.4 mm, equivalent focal length @ 1/2.8") |
| Aperture | F1.3 ~ 2.2 |
| Iris Type | P-iris |
| Field of View | 120° ~ 46° (Horizontal), 60° ~ 26° (Vertical), 148° ~ 53° (Diagonal) |
| Shutter Time | 1 sec. to 1/100,000 sec. |
| WDR Technology | WDR Pro II |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 50 meters with Smart IR III, IR LED*4 (50IRE) |
| Minimum Illumination | 0.040 lux @ F1.3 (Color), 50IRE 0.015 lux @ F1.3 (Color), 30IRE <0.005 lux @ F1.3 (B/W) |
| Pan Range | ±175° |
| Tilt Range | 80° |
| Rotation Range | ±175° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
Storage
| Category | Specification |
|---|---|
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB Capacity Supported) and recording to NAS |
Built-in Installation Aids
| Category | Specification |
|---|---|
| Installation Aids | Remote focus, remote zoom, Micro USB*, pixel calculator (*Requires Wi-Fi dongle and Micro B converter) |
Video
| Category | Specification |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 60 fps @ 1920x1080 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 58 dB |
| Dynamic Range | 140dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
Audio
| Category | Specification |
|---|---|
| Audio Capability | Two-way audio (Full duplex) |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone, External microphone Input, External line output |
| Effective Range | 5 meters |
Network
| Category | Specification |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | Access list, Account block, HTTPS, IEEE 802.1x, Secure boot, Session timeout, User access log |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP |
| Interface | 10 Base-T/100 Base-TX Ethernet |
AI Analytics
| Category | Specification |
|---|---|
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection (people, vehicle (4-wheeled, 2-wheeled)) |
| Application | Smart Motion Detection, Smart VCA (Intrusion, Loitering, Line Crossing, etc.) |
General
| Category | Specification |
|---|---|
| Connectors | RJ-45 for 10/100 Mbps PoE, Audio input/output, DC 12V/AC 24V power input, Digital input/output, Micro USB |
| Power Input | AC 24V/DC 12V, IEEE 802.3at PoE Class 4 (Power Redundancy) |
| Power Consumption | PoE: 13.11W/9.67W, DC 12V: 14.00W/10.56W, AC 24V: 10.79W/7.35W |
| Dimensions | ø 174 x 123 mm |
| Weight | 1.38 kg |
| Certifications | CE, FCC, UKCA, VCCI, IC, UL, CB, IK10+, IP66/67, NEMA 250 Type 4X |
| Operating Temperature | -30°C ~ 60°C (Start), -50°C ~ 60°C (Work, IR off), -50°C ~ 50°C (Work, IR on) |
| Humidity | 98% RH (non-condensing) |
System Requirements
| Category | Specification |
|---|---|
| Operating System | Microsoft Windows 10/8/7, Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above, Internet Explorer 11 |
| Other Players | VLC: 1.1.11 or above |
