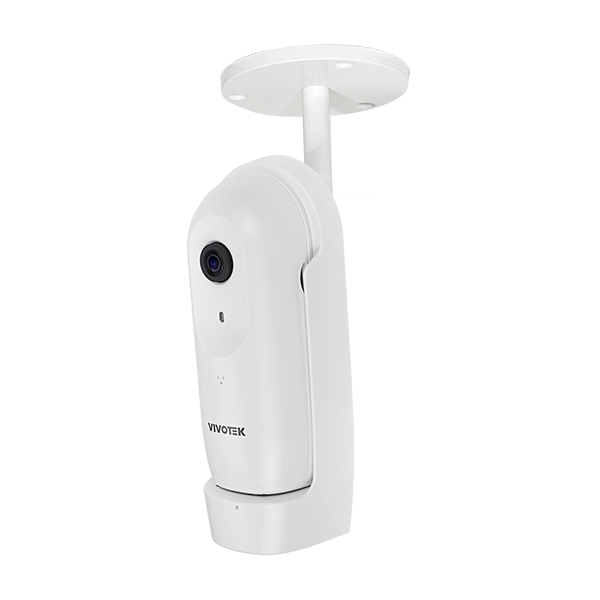

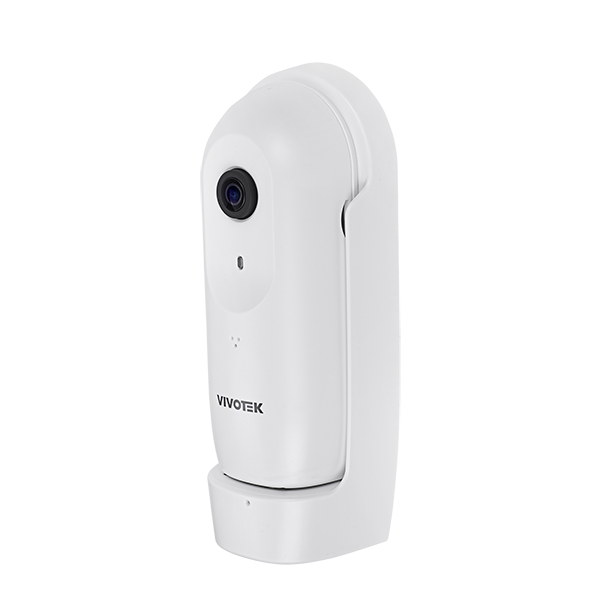

Vivotek 2MP Compact Panoramic Network Camera - CC9160-H

Product Information

• CPU: Multimedia SoC (System-on-Chip)
• Flash: 256 MB
• RAM: 512 MB

Camera Specifications

• Image Sensor: 1/2.8" Progressive CMOS
• Max. Resolution: 1920x1080 (2MP)
• Lens Type: Fixed-focal
• Focal Length: f = 1.66 mm
• Aperture: F1.95
• Iris Type: Fixed iris
• Field of View:
  • Horizontal: 180°
  • Vertical: 100°
  • Diagonal: 180°
• Shutter Time: 1/5 sec. to 1/32,000 sec.
• WDR Technology: WDR Pro
• Minimum Illumination: 0.03 lux@F1.95
• Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Storage: Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)

Video

• Compression: H.265, H.264, MJPEG
• Maximum Frame Rate: 30 fps @ 1920x1080
• Maximum Streams: 3 video streams (Up to 8 configurable profiles)
• S/N Ratio: 66.2 dB
• Dynamic Range: 120 dB
• Video Streaming: Adjustable resolution, quality, and constrained bit rate control, Smart Stream III
• Image Settings:
  • Video title and timestamp overlay
  • Video orientation (flip, mirror)
  • General image settings
• Exposure Settings:
  • BLC (Backlight Compensation), HLC (Highlight Compensation)
  • Exposure control (exposure level, exposure time, gain control)
  • AE (Auto Exposure) speed adjustment
  • WDR (Wide Dynamic Range)
• Privacy Mask: Yes (for masking parts of the image)
• Scheduled Profile Settings: Yes (to schedule recording profiles)

Audio

• Audio Capability: One-way Audio
• Compression: G.711, G.726
• Interface: Built-in microphone
• Effective Range: 5 meters

Network

• Users: Live viewing for up to 10 clients
• Security:
  • Access list
  • Digest authentication
  • HTTPS
  • IEEE 802.1x
  • Password protection
  • Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
  • User access log
  • User account management
• Protocols:
  802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
• Interface:
  • 10Base-T/100 BaseTX Ethernet (RJ-45)
  • It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.

Solution Integration

• Video Motion Detection: Motion Detection (Five-window video motion detection)

Alarm and Event

Event Trigger:

• Audio detection
• Camera tampering detection
• Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
• Manual trigger
• Motion detection
• Periodical trigger
• Recording notification
• SD card life expectancy
• System boot
• Digital input

Event Action:

• Event notification via email, HTTP, FTP, NAS server, SD card, push notification, digital output
• File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors:

• RJ-45 cable connector for 10/100 Mbps Network/PoE connection
• Digital input
• Digital output (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)

LED Indicator:

• System power and status indicator

Power Input:

• IEEE 802.3af PoE Class 2

Power Consumption:

• PoE: Max. 5W

Dimensions:

• 61 x 147 x 41 mm

Weight:

• 127 g

Certifications (EMC):

• CE (EN 55032 Class B, EN 55035)
• FCC (FCC Part 15 Subpart B Class B)
• UKCA (BS EN 55032: 2015 +A11: 2020)
• RCM (AS/NZS CISPR 32 Class B)
• VCCI (VCCI-CISPR 32 Class B)

Certifications (Safety):

• UL (UL 62368-1)
• CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
• UKCA (BS EN IEC 62368-1: 2020 +A11: 2020)

Certifications (IA):

• BIS (IS 13252)
• BSMI (EMC: CNS 13438, Safety: CNS 14336-1)

Operating Temperature:

• Starting Temperature: 0°C ~ 45°C (32°F ~113°F)
• Working Temperature: -10°C ~ 45°C (14°F ~113°F)

Humidity:

• 90% RH (non-condensing)

System Requirements

Operating System:

• Microsoft Windows 10/8/7
• Mac 10.12 (Chrome only)

Web Browser:

• Chrome 58.0 or above
• Internet Explorer 10/11

Other Players:

• VLC: 1.1.11 or above
