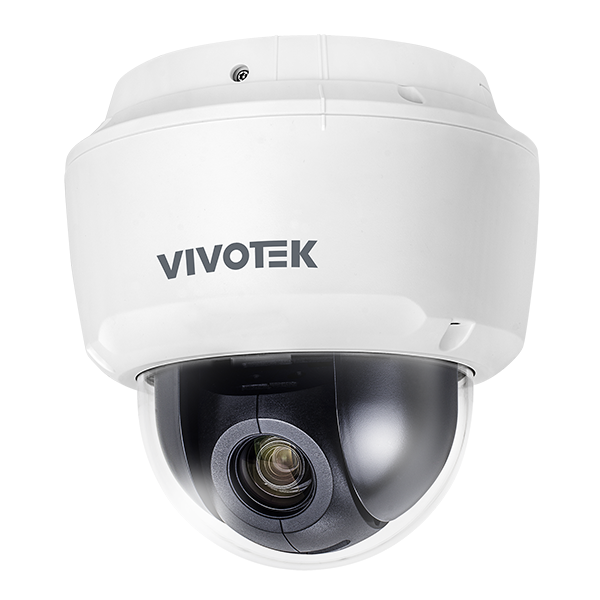

Vivotek 2MP AI PTZ Camera - SD9161-H-V2
Vivotek 2MP AI PTZ Camera - SD9161-H-V2
Regular price
$1,300.00 USD
Regular price
Sale price
$1,300.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
System Information
| Specification | Details |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
Camera Specifications
| Specification | Details |
|---|---|
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 1920x1080 (2MP) |
| Lens Type | 10x Optical Zoom, Auto Focus |
| Focal Length | 5.1~51mm (10x zoom) |
| Aperture | F1.6~1.8 |
| Iris Type | DC-Iris |
| Field of View | 55.2° ~ 7.1° (Horizontal), 31.8° ~ 4.1° (Vertical), 62.4° ~ 8.1° (Diagonal) |
| Shutter Time | 1/8 sec. to 1/30,000 sec. |
| WDR Technology | WDR Pro |
| Removable IR-cut filter | Yes |
| Minimum Illumination | 0.14 Lux @ F1.6 (Color), 0.005 Lux @ F1.6 (B/W) |
| Pan Speed | 0.05° ~ 360° /sec |
| Pan Range | 360° endless |
| Tilt Speed | 0.05° ~ 360° /sec |
| Tilt Range | 180° |
| Preset Location | 256 preset locations, 128 presets per tour |
| Pan/Tilt/Zoom Functionalities | 32x digital zoom (4x on IE plug-in, 8x built-in), Auto Pan mode, Auto Patrol mode |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Remote focus, remote zoom |
Video
| Specification | Details |
|---|---|
| Compression | H265, H264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 (WDR on), 60 fps @ 1920x1080 (WDR off) |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 73 dB |
| Dynamic Range | 100 dB |
| Video Streaming | Adjustable resolution, quality and constrained bit rate control, Smart Stream III |
| Image Settings | Video settings, video orientation (flip, mirror), day/night settings, white balance, brightness, contrast, saturation, sharpness, gamma curve, defog, 3DNR, HLM, EIS(built-in gyro sensor), scene mode (auto) |
| Exposure | Exposure strategy (measurement window, metering mode), exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR |
| Focus | Zoom, focus |
| Privacy Mask | Pixel calculator |
| Scheduled Profile Settings | Yes |
Audio
| Specification | Details |
|---|---|
| Audio Capability | Two-Way Audio (full duplex) |
| Compression | MPEG-2 AAC-LC, G.711, G.726 |
| Interface | External line input, External line output |
Network
| Specification | Details |
|---|---|
| Users | Live viewing for up to 10 clients |
| Security | Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security, User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| ONVIF | Profile G, S, T supported |
AI Analytics
| Specification | Details |
|---|---|
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection (People, Vehicle - 4-wheeled, 2-wheeled), Attribute Extraction (People - gender, clothing color, bag, hat; Vehicle - bike, bus, car, motorcycle, truck, color), Re-Search Extraction, Path Extraction |
| Application | Deep Learning VCA (Smart Tracking Advanced), Smart Tracking Advanced (Intrusion detection, Loitering detection, Line crossing detection, Face detection, Unattended object detection, Missing object detection) |
| License Required Applications | Parking Violation Detection, Restricted Zone Detection |
Alarm and Event
| Specification | Details |
|---|---|
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events, digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, smart tracking advanced trigger, system boot, preset reached |
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification, file upload |
General
| Specification | Details |
|---|---|
| Connectors | RJ-45 cable connector for 10/100Mbps Network/PoE connection, Audio line input, Audio line output, AC/DC 24V power input, Digital input2, Digital output1 |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V, DC 24V, IEEE 802.3at PoE Class 4 |
| Power Consumption | PoE Max: 17W, AC/DC 24V Max: 17W |
| Dimensions | 172 x 157 mm |
| Weight | 1 kg |
Certifications
| Specification | Details |
|---|---|
| EMC | CE, UKCA, FCC, IC, RCM, VCCI |
| Safety | UKCA, UL, CB |
| IA | BIS, BSMI |
Environmental
| Specification | Details |
|---|---|
| Operating Temperature | Starting Temperature: -10°C ~ 55°C (14°F ~ 131°F), Working Temperature: -10°C ~ 55°C (14°F ~ 131°F) |
| Humidity | 98% RH (non-condensing) |
System Requirements
| Specification | Details |
|---|---|
| Operating System | Microsoft Windows 10/8/7, Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above, Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
