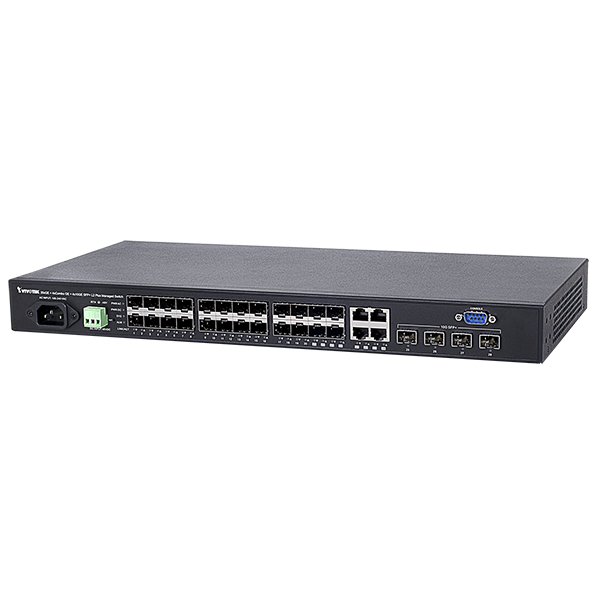

Vivotek 28 Ports VIVOCAM L2+ Managed Switch - AW-GTS-287A
Vivotek 28 Ports VIVOCAM L2+ Managed Switch - AW-GTS-287A
Regular price
$2,300.00 USD
Regular price
Sale price
$2,300.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Specification | Details |
|---|---|
| Segment | 10G L2+ Managed Switch |
| Product Description | 20xGE SFP + 4xCombo GE + 4x10G SFP+ Layer 2 Plus Managed Switch |
| Port Ethernet | 20xGbE SFP |
| Uplink Port Ethernet | 4xGbE Combo + 4x10G SFP |
| 10G SFP+ Port | 4 |
| Total Ports | 28 |
| Console Port | 1xRS232 |
HW Performance
| Specification | Details |
|---|---|
| Switching Bandwidth | 128 Gbps |
| Buffer Memory | 32Mb |
| Forwarding Rate | 95.232 Mpps |
| MAC Address | 32K |
| Jumbo Frames | 10056 Bytes |
| Max. Power Consumption | 30W |
Surveillance Features
| Feature | Details |
|---|---|
| Management | Auto Search VIVOTEK Device, Up to 1024 pcs |
| PoE Reboot | Surveillance Device Management List |
| DHCP Server Function | VIVOTEK Device Account/Password Setting |
| VIVOTEK Device Grouping Setting for VLAN | VIVOTEK Device Name Edit |
| E-Map View | Topology View, Floor View, Google Map View |
| Maintenance | VIVOTEK Camera/Video Server Configuration File Export/Import |
| Cable Diagnostics | Traffic Monitoring |
L2 Managed Features
| Feature | Details |
|---|---|
| Spanning Tree | IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP) |
| Trunking | IEEE802.1d (LACP), Static Aggregation |
| VLAN | 802.1Q Tag-based VLAN, 4096 VLAN IDs |
| Port-based VLAN | Private VLAN Edge (PVE), GARP VLAN, Q-in-Q (Double Tag) |
| Protocol-based VLAN | MAC-based VLAN, Voice VLAN, IP Subnet-based VLAN |
| Multicast VLAN Registration | IGMP Snooping (v1/v2), MLD v1/v2 Snooping |
| QoS Features | Hardware Queues 8, Port-based Classification |
| Security | IEEE802.1x RADIUS Authentication, Secure Sockets Layer (SSL) |
| Management | SNMP (v1, v2c, v3), RMON (1,2,3 & 9 groups) |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 10 ~ 90% RH |
Mechanical Specifications
| Specification | Details |
|---|---|
| Dimensions | 44 (H) x 442 (W) x 211 (D) mm |
| Weight | 3.1 kg |
Power Source
| Specification | Details |
|---|---|
| Power Input | 100 |
| Frequency | 50 ~ 60 Hz |
Certifications
| Specification | Details |
|---|---|
| Types | CE, FCC, LVD, VCCI |
