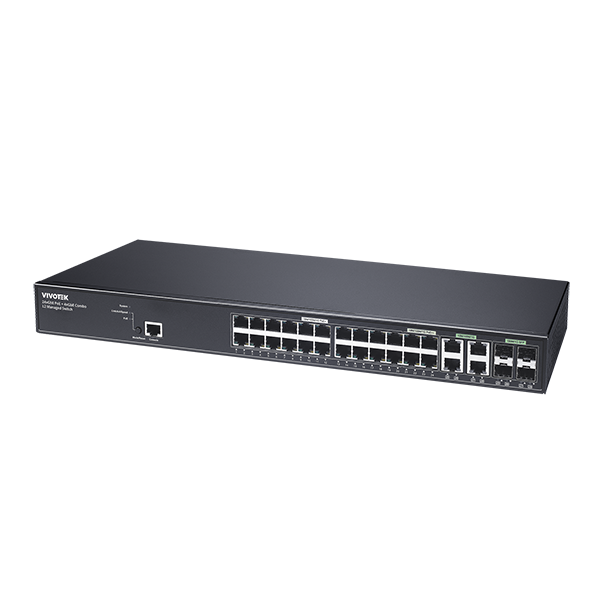

Vivotek 28 Ports VIVOCAM L2 Managed PoE Switch - AW-GEV-288A-370
Vivotek 28 Ports VIVOCAM L2 Managed PoE Switch - AW-GEV-288A-370
Regular price
$1,120.00 USD
Regular price
Sale price
$1,120.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Specification | Details |
|---|---|
| Segment | L2 Managed PoE Switch |
| Product Description | 4xGbE bt 90W PoE + 20xGbE PoE + 4xGbE Combo VivoCam L2 Managed PoE Switch |
| PoE Port Ethernet | 24xGbE PoE |
| Uplink Port Ethernet | 4xGbE Combo |
| Total Ports | 28 |
| Console Port | 1xRJ45 |
| PoE Function | PoE Port |
| Max. PoE Output Power | Port 1-20 at 30W, Port 21-24 bt 90W |
| PoE Power Budget | 370W |
| PoE Standard | 802.3 af/at/bt |
| PoE Pin Assignment | Port 21-24 bt: 4 pairs 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-); Port 1-20 af/at: 2 pairs 1/2 (+), 3/6 (-) |
| Surge Protection | 6KV |
| Switching Bandwidth | 56Gbps |
| Buffer Memory | 4.1Mb |
| Forwarding Rate | 41.664 Mpps |
| MAC Address | 8K |
| Jumbo Frames | 9216 Bytes |
| Max. Power Consumption | 390W |
Surveillance Features
| Feature | Details |
|---|---|
| Management | Auto Search VIVOTEK Device up to 256 pcs |
| PoE Reboot | Surveillance Device Management List |
| DHCP Server Function | VIVOTEK Device Account/Password Setting |
| VIVOTEK Device Grouping Setting for VLAN | VIVOTEK Device Name Edit |
| E-Map View | Topology View, Floor View, Google Map View |
| Maintenance | VIVOTEK Camera/Video Server Configuration File Export/Import |
| Cable Diagnostics | Traffic Monitoring |
L2 Managed Features
| Feature | Details |
|---|---|
| Spanning Tree | IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP) |
| Trunking | IEEE802.1d (LACP), Static Aggregation |
| VLAN | 802.1Q Tag-based VLAN, 4096 VLAN IDs |
| Port-based VLAN | Private VLAN Edge (PVE), GARP VLAN, Q-in-Q (Double Tag) |
| Protocol-based VLAN | MAC-based VLAN, Voice VLAN, IP Subnet-based VLAN |
| Multicast VLAN Registration | IGMP Snooping (v1/v2), MLD v1/v2 Snooping |
| QoS Features | Hardware Queues 8, Port-based Classification |
| Security | IEEE802.1x RADIUS Authentication, Secure Sockets Layer (SSL) |
| Management | SNMP (v1, v2c, v3), RMON (1,2,3 & 9 groups) |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 10 ~ 90% RH |
Mechanical Specifications
| Specification | Details |
|---|---|
| Dimensions | 442 (W) x 44 (H) x 211(D) mm |
| Weight | 3.2 kg |
Power Source
| Specification | Details |
|---|---|
| Power Input | 100V ~ 240V |
| Frequency | 50 ~ 60 Hz |
Certifications
| Specification | Details |
|---|---|
| Types | UL, CE, UKCA, FCC, VCCI, LVD, ICES |
