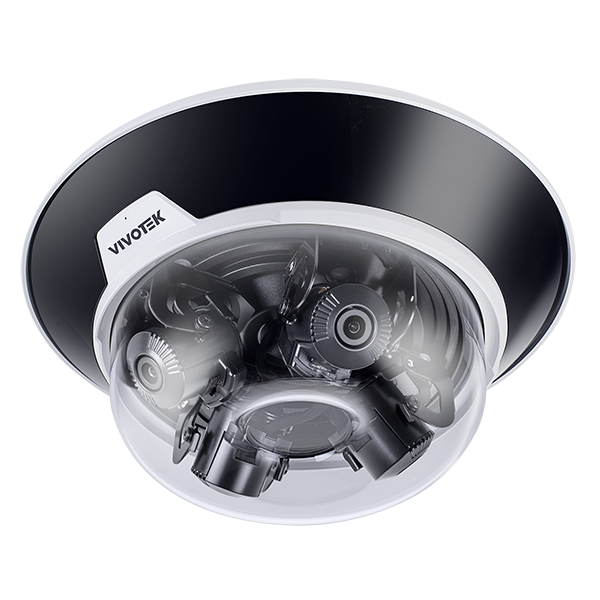

Vivotek 20MP Multi-Directional Panoramic Camera - MA9322-EHTVL
Vivotek 20MP Multi-Directional Panoramic Camera - MA9322-EHTVL
Regular price
$2,700.00 USD
Regular price
Sale price
$2,700.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
System Information
| Feature | Specification |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 1GB |
| RAM | 4 GB |
Camera Specifications
| Feature | Specification |
|---|---|
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2688x1920 (5MP) x 4 |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 3.7 ~ 7.7mm |
| Aperture | F1.9 ~ F2.9 |
| Iris Type | Fixed Iris |
| Field of View | 88.6° ~ 40.1° (Horizontal) 61.2° ~ 28.6° (Vertical) 115.5° ~ 49.5° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminator up to 30 meters with Smart IR, IR LED*8 |
| Minimum Illumination | 0.035 lux @ F1.9 (Color) 0.005 lux @ F1.9 (B/W) 0 lux with IR illumination on |
| Tilt Range | 0° ~ 105° each lens |
| Rotation Range | ±90° each lens |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless recording to MicroSD/SDHC/SDXC card (1T capacity supported) Network-attached storage (NAS) |
| Built-in Installation Aids | Remote Focus, Remote Zoom, Pixel Calculator |
Video
| Feature | Specification |
|---|---|
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 15 fps @ (2688x1920) x 4 30 fps @ (2560x1440) x 4 |
| Maximum Streams | 2 streams each channel (up to total 13 profiles) |
| S/N Ratio | 60 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constrained bit rate control |
| Image Settings | Video title and time stamp overlay Video orientation (flip, mirror) Day/night settings |
| Illuminators | Anti-overexposure settings |
| Image Adjustments | White balance, brightness, contrast, saturation, sharpness, gamma curve, defog, 3DNR, HLM |
| Exposure | BLC, HLC, exposure control (level, iris, exposure time, gain), AE speed adjustment, WDR |
| Privacy Mask | Pixel calculator |
| Scheduled Profile Settings | Yes |
Audio
| Feature | Specification |
|---|---|
| Audio Capability | Two-Way Audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | Built-in microphone External microphone input* External line output* *Requires AO-006 cable. |
| Effective Range | 5 meters |
Network
| Feature | Specification |
|---|---|
| Users | Live viewing for up to 20 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, Password protection, user access log, user account management |
| Protocols | 802.1X, ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 BaseTX/1000 Base-T Ethernet (RJ-45) Highly recommended: standard CAT5e & CAT6 cables compliant with 3P/ETL standard |
Solution Integration
| Feature | Specification |
|---|---|
| Video Motion Detection | Five-window video motion detection |
Alarm and Event
| Feature | Specification |
|---|---|
| Event Trigger | Audio detection*, camera tampering detection, digital input*, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot Requires AO-006 cable. |
| Event Action | Event notification via audio clip*, camera link, digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card Requires AO-006 cable. |
General
| Feature | Specification |
|---|---|
| Connectors | RJ-45 cable connector for 10/100/1000 Mbps network/PoE connection Audio line input* Audio line output* AC 24V power input* Digital input* Digital output (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)* Requires AO-006 cable. |
| LED Indicator | System power and status indicator |
| Power Input | AC 24V*, IEEE 802.3 at PoE Class 4 Requires AO-006 cable. |
| Power Consumption | Max 25W |
| Dimensions | 275 x 118 mm (L x W) |
| Weight | 2.7 kg |
Certifications
| Feature | Specification |
|---|---|
| EMC Certifications | CE (EN 55032 Class A, EN 55024), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A) |
| Safety Certifications | UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) |
| Environmental Certifications | IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X) |
Environment
| Feature | Specification |
|---|---|
| Operating Temperature | Start Temperature: -30°C ~ 50°C (-22°F ~ 122°F) Working temperature: -40°C ~ 50°C (-40°F ~ 122°F) (IR on) |
| Humidity | 90% RH (non-condensing) |
System Requirements
| Feature | Specification |
|---|---|
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
