Vivotek

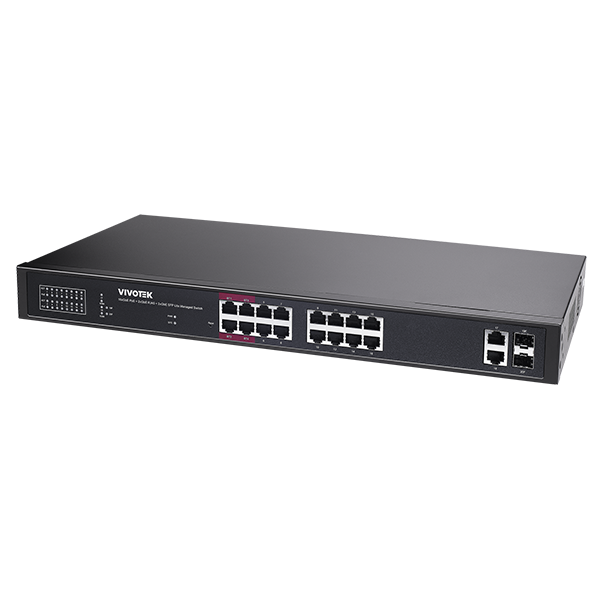

Vivotek 20 Ports Lite Managed PoE Switch - AW-GEL-205A-260

Vivotek 20 Ports Lite Managed PoE Switch - AW-GEL-205A-260

$600.00 USD
$600.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Specification

Specification Details
Segment Lite Managed PoE Switch
Product Description 4xGbE bt 90W PoE + 12xGbE PoE + 2xGbE RJ45 + 2xGbE SFP Lite Managed Switch
PoE Port Ethernet 16xGbE PoE
Uplink Port Ethernet 2xGbE RJ45 + 2xGbE SFP
Total Ports 20
PoE Function PoE Port
Max. PoE Output Power Port 1-4 bt 90W, Port 5-16 at 30W
PoE Power Budget 260W
PoE Standard 802.3 af/at/bt
PoE Pin Assignment Port 1-4 bt: 4 pairs 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-)
Port 5-16 af/at: 2 pairs 1/2 (+), 3/6 (-)
Surge Protection 4KV
Switching Bandwidth 40 Gbps
Buffer Memory 4.1Mb
Forwarding Rate 26.784 Mpps
MAC Address 8K
Jumbo Frames 9216 Bytes
Max. Power Consumption 270W

L2 Managed Features

Feature Details
Spanning Tree IEEE802.1D (STP), IEEE802.1w (RSTP)
Trunking IEEE802.1d (LACP)
Static Aggregation Supported
VLAN 802.1Q Tag-based VLAN, 4096 VLAN IDs
Port-based VLAN Supported
QoS Features Hardware Queues: 8
Classification Port Based, 802.1p
Rate Limiting Ingress, Egress, Per Port
Priority Queue Scheduling WRR
DSCP & Class of Service Supported
Management Port Mirroring, Firmware Upgrade
PoE Management PoE On/Off Control, PoE Alive Checking for PD, Non-Stop PoE, Extended PoE Mode (up to 250m/10mbps)

Environmental Specifications

Specification Details
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 10 ~ 90% RH

Mechanical Specifications

Specification Details
Dimensions 440 (W) x 210 (D) x 44 (H) mm
Weight 2.67 kg

Power Source

Specification Details
Power Input 100V ~ 240V
Frequency 50 ~ 60 Hz

Certifications

Specification Details
Types CE, FCC, UKCA, LVD, VCCI, BSMI
View full details
