Vivotek

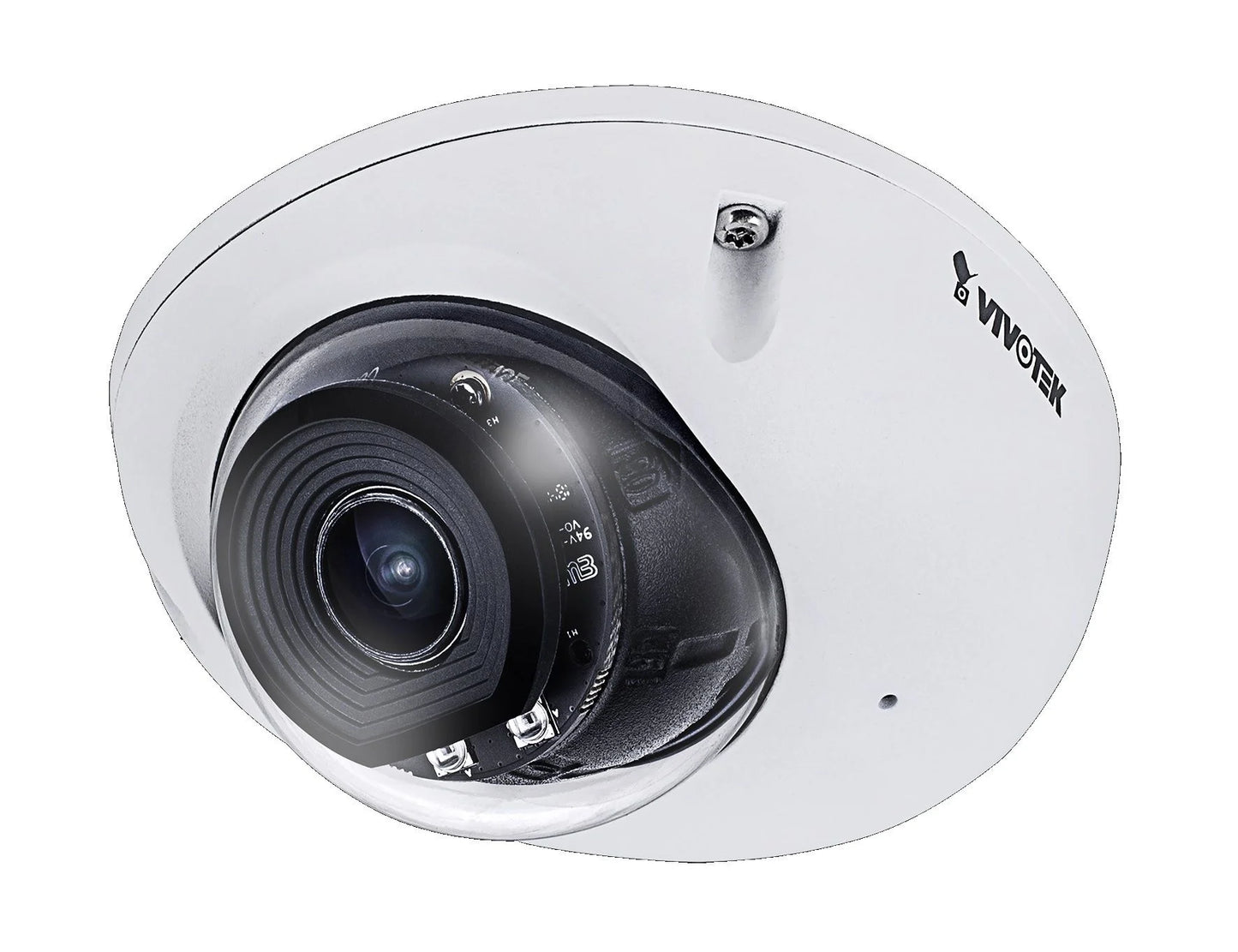

Vivotek 2 Megapixel Network IR Outdoor Mobile Dome Camera - MD9560-HF3
Vivotek 2 Megapixel Network IR Outdoor Mobile Dome Camera - MD9560-HF3
Regular price
$756.00 USD
Regular price
Sale price
$756.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specifications
| Specification | Details |
|---|---|
| SKU | MD9560-DHF2 |
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vivotek |
| NDAA Compliant | Yes |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 98 x 54 x 110.8 mm |
| Electronic Shutter | 1/5 sec. to 1/32,000 sec |
| Image Device | 1/2.9" Progressive CMOS |
| IR LEDs | 2 |
| Minimum Scene Illumination | 0.13 Lux @ F1.8 (Color), 0.01 Lux @ F1.8 (B/W), 0 Lux with IR illumination on |
| Operating Humidity | 98% RH (non-condensing) |
| Operating Temperature | Starting Temperature: -25°C ~ 55°C (-13°F~ 131°F); Working Temperature: -25°C ~ 60°C (-13°F~ 140°F) (IR off), -25°C ~ 55°C (-13°F~ 131°F) (IR on); Maximum (intermittent): 70 °C (158 °F) |
| Power Consumption | Max. 5.5 W (IR on), Max. 3.3 W (IR off) |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| S/N Ratio | 60 dB |
| Scanning System | Progressive |
| Weatherproof | IP66, IP67 |
| Digital Noise Reduction | 3DNR |
| Angle of View | 108° (Horizontal), 60° (Vertical), 124° (Diagonal) |
| Rotation Angle | ±180° |
| Motion Detection Tracking | Five-window video motion detection |
| IR Distance | 20m / 65.61ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
