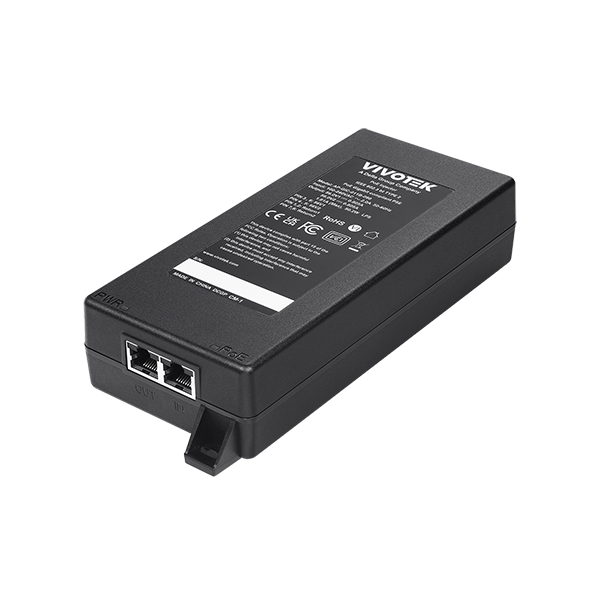

Vivotek 1xGE 90W bt PoE Injector - AP-GIC-011B-090
Vivotek 1xGE 90W bt PoE Injector - AP-GIC-011B-090
Regular price
$212.00 USD
Regular price
Sale price
$212.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Specification | Details |
|---|---|
| Ethernet | Gigabit Ethernet 10/100/1000Mbps (Data in) 1 |
Standards
| Specification | Details |
|---|---|
| IEEE 802.3 10-BASE-T (Ethernet) | Supported |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) | Supported |
| IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) | Supported |
| IEEE 802.3 af/at/bt | Supported |
PoE Function
| Specification | Details |
|---|---|
| Number of PoE Output Port | 1 |
| Max. PoE Output Power | 90W |
| IEEE PoE Standard | 802.3af/at/bt |
| Over Current Protection | Supported |
| Circuit Shorting Protection | Supported |
| Total PoE Power Budget | 90W |
| Power Pin Assignment | 3,6 / 4,5 (+), Pin 1,2 / 7,8 (-) |
| PoE PD Auto Detection | Supported |
General
| Specification | Details |
|---|---|
| Input Voltage Range | 100 |
| Output Voltage/Current | 56VDC/1.61A |
| Electrostatic Discharge (ESD) | Contact discharge: ±6KV, Air discharge: ±8KV |
| MTBF | 200k hours of continuous operation at 25°C |
| Dimensions | 173 (L) x 80 (W) x 39.8 (H) mm |
| Weight | 0.45 kg |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) @ 90W |
| Operating Temperature (80W) | -10°C ~ 50°C (14°F ~ 122°F) @ 80W |
| Storage Temperature | -25°C ~ 65°C (-13°F ~ 149°F) |
| Humidity | Operating: 5 |
Safety Certifications
| Specification | Details |
|---|---|
| Safety Certifications | CE, CB, FCC, VCCI |
Warranty
| Specification | Details |
|---|---|
| Warranty |
24 Months |
