Vivotek

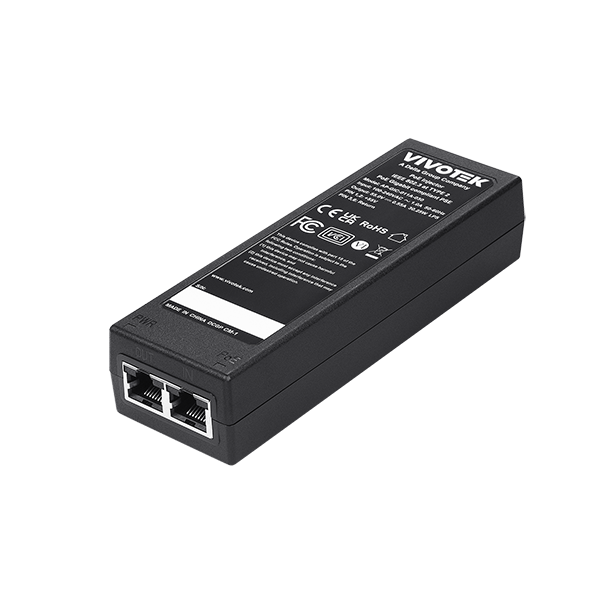

Vivotek 1xGE 30W af/at PoE Injector - AP-GIC-011A-030
Vivotek 1xGE 30W af/at PoE Injector - AP-GIC-011A-030
Regular price
$64.00 USD
Regular price
Sale price
$64.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Specification | Details |
|---|---|
| Ethernet | Gigabit Ethernet 10/100/1000Mbps (Data in) 1 |
Standards
| Specification | Details |
|---|---|
| IEEE 802.3 10-BASE-T (Ethernet) | Supported |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) | Supported |
| IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) | Supported |
| IEEE 802.3 af/at/bt | Supported |
PoE Function
| Specification | Details |
|---|---|
| Number of PoE Output Port | 1 |
| Max. PoE Output Power | 30W |
| IEEE PoE Standard | 802.3af/at |
| Over Current Protection | Supported |
| Circuit Shorting Protection | Supported |
| Total PoE Power Budget | 30W |
| Power Pin Assignment | 1,2 (+)/3,6 (-) |
| PoE PD Auto Detection | Supported |
General
| Specification | Details |
|---|---|
| Input Voltage Range | 100 |
| Output Voltage/Current | 55VDC/0.55A |
| Electrostatic Discharge (ESD) | Contact discharge: ±6KV, Air discharge: ±8KV, Criterion B |
| MTBF | 200k hours of continuous operation at 25°C |
| Dimensions | 140 (L) x 45.5 (W) x 30 (H) mm |
| Weight | 0.14 kg |
| Operating Temperature | -10°C ~ 45°C (14°F ~ 113°F) |
| Storage Temperature | -25°C ~ 65°C (-13°F ~ 149°F) |
| Humidity | Operating: 5 |
Safety Certifications
| Specification | Details |
|---|---|
| Safety Certifications | CE, CB, FCC, VCCI |
Warranty
| Specification | Details |
|---|---|
| Warranty | 24 Months |
