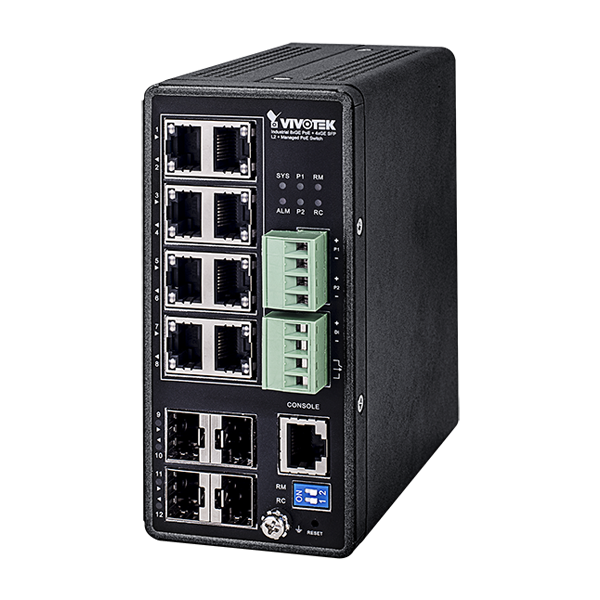

Vivotek 12 Ports VIVOCAM L2+ Managed PoE Switch - AW-IHT-1271
Vivotek 12 Ports VIVOCAM L2+ Managed PoE Switch - AW-IHT-1271
Regular price
$1,220.40 USD
Regular price
Sale price
$1,220.40 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Specification
| Specification | Details |
|---|---|
| Segment | L2 Managed PoE Switch |
| Product Description | Industrial 8xGbE PoE + 4xGbE SFP L2 Managed Switch |
| PoE Port Ethernet | 8xGbE PoE |
| Uplink Port Ethernet | 4xGbE SFP |
| Total Ports | 12 |
| Console Port | 1xRJ45 |
| PoE Port | 8 |
PoE Output and Power
| Specification | Details |
|---|---|
| Max. PoE Output Power | 30W |
| PoE Power Budget | 240W |
| PoE Standard | 802.3 af/at |
| PoE Pin Assignment | 1/2 (+), 3/6 (-) |
| Surge Protection | 6KV |
HW Performance
| Specification | Details |
|---|---|
| Switching Bandwidth | 24 Gbps |
| Buffer Memory | 4.1Mb |
| Forwarding Rate | 17.856 Mpps |
| MAC Address | 8K |
| Jumbo Frames | 9600 Bytes |
| Max. Power Consumption | 250W |
Surveillance Features
| Specification | Details |
|---|---|
| Management | Auto Search VIVOTEK Device (up to 1024 pcs) |
| PoE Reboot | Yes |
| Surveillance Device Management List | Yes |
| DHCP Server Function | Yes |
| VIVOTEK Device Settings | Account/Password, Grouping for VLAN, Name Edit |
| Reboot/Restore Default | Yes |
| VIVOTEK Device On/Off Line Status | Yes |
| E-Map View | Yes |
| Topology View | Yes |
| Floor View | Yes |
| Google Map View | Yes |
| Maintenance | Configuration File Export/Import, Image Management |
| Cable Diagnostics | Yes |
| Traffic Monitoring | Yes |
L2 Managed Features
| Specification | Details |
|---|---|
| Spanning Tree | IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP) |
| Trunking | IEEE802.1d (LACP), Static Aggregation |
| VLAN | 802.1Q Tag-based VLAN, Port-based VLAN, Private VLAN Edge (PVE), etc. |
| IGMP Snooping | v1/v2 |
| QoS Features | Hardware Queues: 8, Classification, WRR, DSCP & Class of Service |
| Security Features | IEEE802.1x RADIUS Authentication, Port Security, Storm Control, DHCP Snooping, ACLs (Up to 384 entries) |
| Management | SNMP (v1, v2c, v3), RMON (1,2,3 & 9 groups), Port Mirroring, NTP, etc. |
PoE Management
| Specification | Details |
|---|---|
| PoE On/Off Control | Yes |
| PoE Alive Checking for PD | Yes |
| PoE Scheduling | Yes |
| Non-Stop PoE | Yes |
| Extended PoE Mode | Up to 250m/10mbps |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -40°C ~ 75°C (-40°F ~ 167°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 5% ~ 90% Non-Condensing |
Mechanical Specifications
| Specification | Details |
|---|---|
| Dimensions | 62(W) x 135(H) x 130(D) mm |
| Weight | 0.68 kg |
Power Source
| Specification | Details |
|---|---|
| Power Input | PW1: 48 ~ 57VDC |
| PW2: 48 ~ 57VDC |
Certifications
| Specification | Details |
|---|---|
| Types | CE, FCC, LVD, VCCI |
