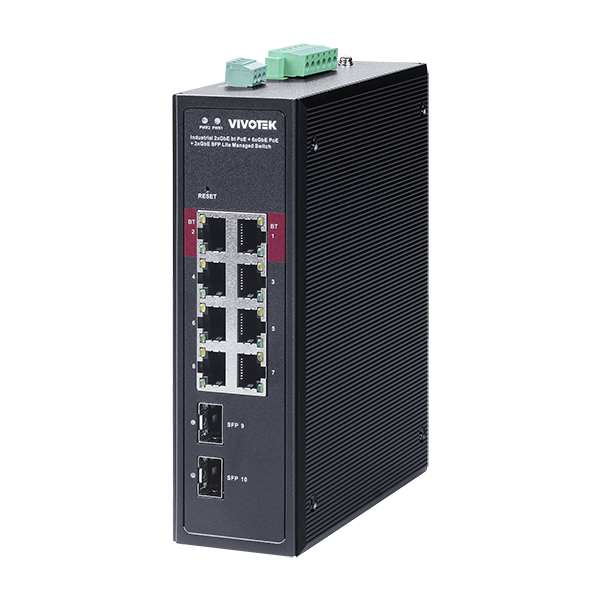

Vivotek 10 Ports Lite Managed PoE Switch - AW-IHB-1040

Vivotek 10 Ports Lite Managed PoE Switch - AW-IHB-1040

$400.00 USD
$400.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Specification

Specification Details
Segment Lite Managed PoE Switch
Product Description Industrial 2xGbE bt 90W + 6xGbE at 30W + 2xGbE SFP Lite Managed Switch
PoE Port Ethernet 8xGbE PoE
Uplink Port Ethernet 2xGbE SFP
Total Ports 10
PoE Function PoE Port
PoE Port 8

PoE Output and Power

Specification Details
Max. PoE Output Power Port 1-2 bt 90W
Port 3-8 at 30W
PoE Power Budget 300W
PoE Standard 802.3 af/at/bt
PoE Pin Assignment Port 1-4 bt: 4 pairs 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-)
Port 5-8 af/at: 2 pairs 1/2 (+), 3/6 (-)

HW Performance

Specification Details
Switching Bandwidth 20 Gbps
Buffer Memory 1.5Mb
Forwarding Rate 14.88 Mpps
MAC Address 4K
Jumbo Frames 9216 Bytes
Max. Power Consumption 310W

L2 Managed Features

Feature Details
Spanning Tree IEEE802.1D (STP), IEEE802.1w (RSTP)
Trunking IEEE802.1d (LACP), Static Aggregation
VLAN 802.1Q Tag-based VLAN, 4096 VLAN IDs
Port-based VLAN QoS Features
Hardware Queues 8
Rate Limiting Ingress, Egress, Per Port
Priority Queue Scheduling WRR, DSCP & Class of Service
PoE Management PoE On/Off Control, PoE Alive Checking for PD, Non-Stop PoE
Extended PoE Mode (up to 250m/10mbps)

Environmental Specifications

Specification Details
Operating Temperature -40°C ~ 75°C (-40°F ~ 167°F)
Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
Operating Humidity 5% ~ 90% Non-Condensing

Mechanical Specifications

Specification Details
Dimensions 165 (W) x 123 (D) x 53.5 (H) mm
Weight 0.9 kg

Power Source

Specification Details
Power Input 48-52VDC bt port up to 60W
52-56VDC bt port up to 90W
Redundant power backup

Certifications

Specification Details
Types CE, UKCA, FCC, VCCI, BSMI
