Vivotek

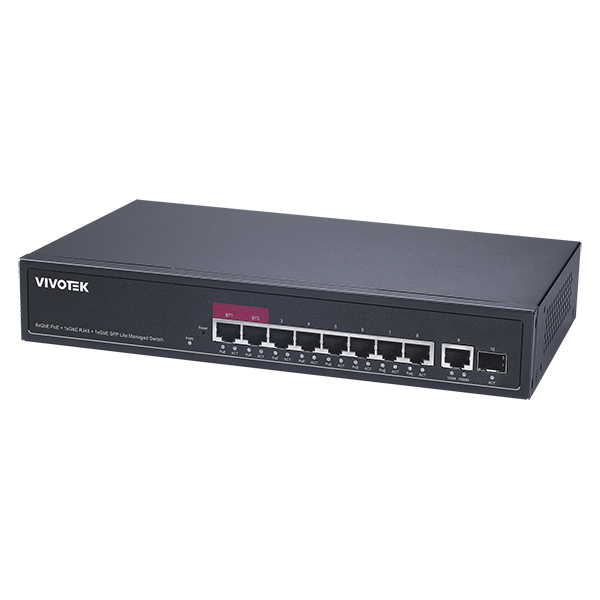

Vivotek 10 Ports Lite Managed PoE Switch - AW-GEL-105A-110

Vivotek 10 Ports Lite Managed PoE Switch - AW-GEL-105A-110

$300.00 USD
$300.00 USD
Sale Sold out
Shipping calculated at checkout.

Product Specification

Specification Details
Segment Lite Managed PoE Switch
Product Description 2xGbE bt 90W PoE + 6xGbE PoE + 1xGbE RJ45 + 1xGbE SFP Lite Managed Switch
PoE Port Ethernet 8xGbE PoE
Uplink Port Ethernet 1xGbE RJ45 + 1xGbE SFP
Total Ports 10
PoE Function PoE Port
Max. PoE Output Power Port 1,2 bt 90W, Port 3-8 at 30W
PoE Power Budget 110W
PoE Standard 802.3 af/at/bt
PoE Pin Assignment Port 1,2 bt: 4 pairs 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-)
Port 3-8 af/at: 2 pairs 1/2 (+), 3/6 (-)
Surge Protection 4KV
Switching Bandwidth 20 Gbps
Buffer Memory 1.5Mb
Forwarding Rate 14.88 Mpps
MAC Address 4K
Jumbo Frames 9216 Bytes
Max. Power Consumption 120W

L2 Managed Features

Feature Details
Spanning Tree IEEE802.1D (STP), IEEE802.1w (RSTP)
Trunking IEEE802.1d (LACP)
Static Aggregation Supported
VLAN 802.1Q Tag-based VLAN, 4096 VLAN IDs
Port-based VLAN Supported
Management Port Mirroring, Firmware Upgrade
PoE Management PoE On/Off Control, PoE Alive Checking for PD, Non-Stop PoE, Extended PoE Mode (up to 250m/10mbps)

Environmental Specifications

Specification Details
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 10 ~ 90% RH

Mechanical Specifications

Specification Details
Dimensions 270 (W) x 181 (D) x 44 (H) mm
Weight 1.15 kg

Power Source

Specification Details
Power Input 100V ~ 240V
Frequency 50 ~ 60 Hz

Certifications

Specification Details
Types CE, FCC, UKCA, LVD, VCCI, BSMI
