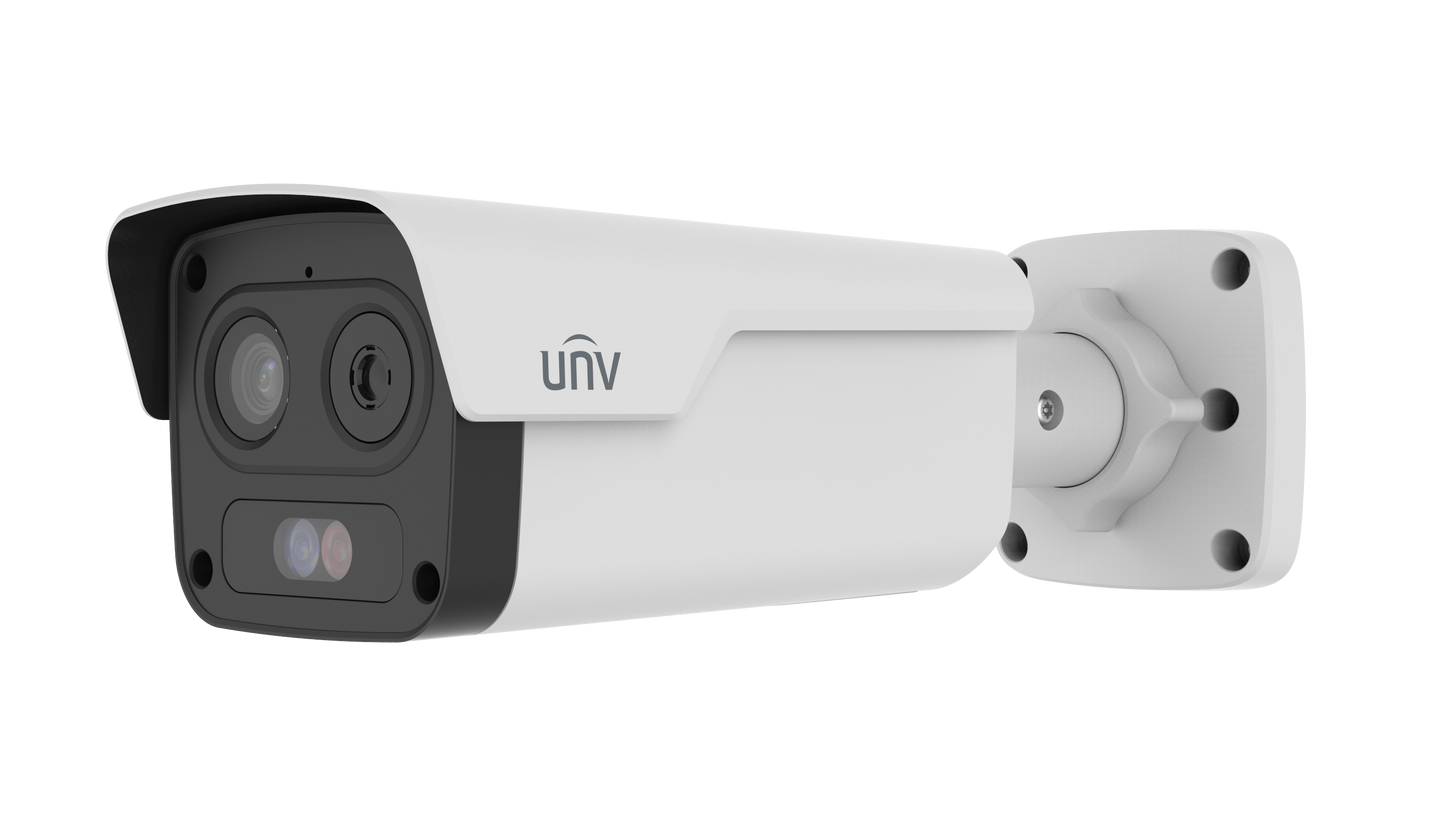

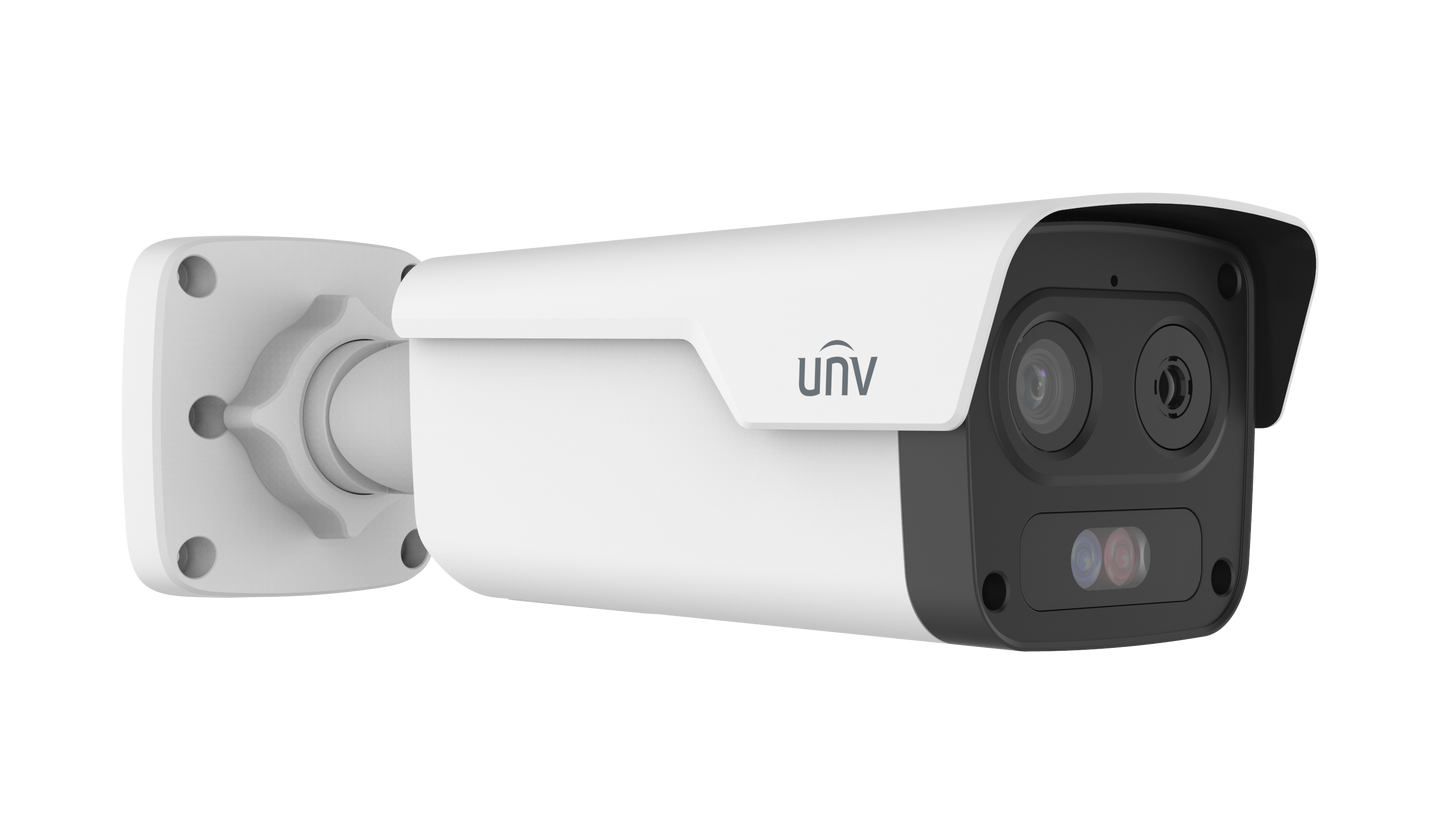

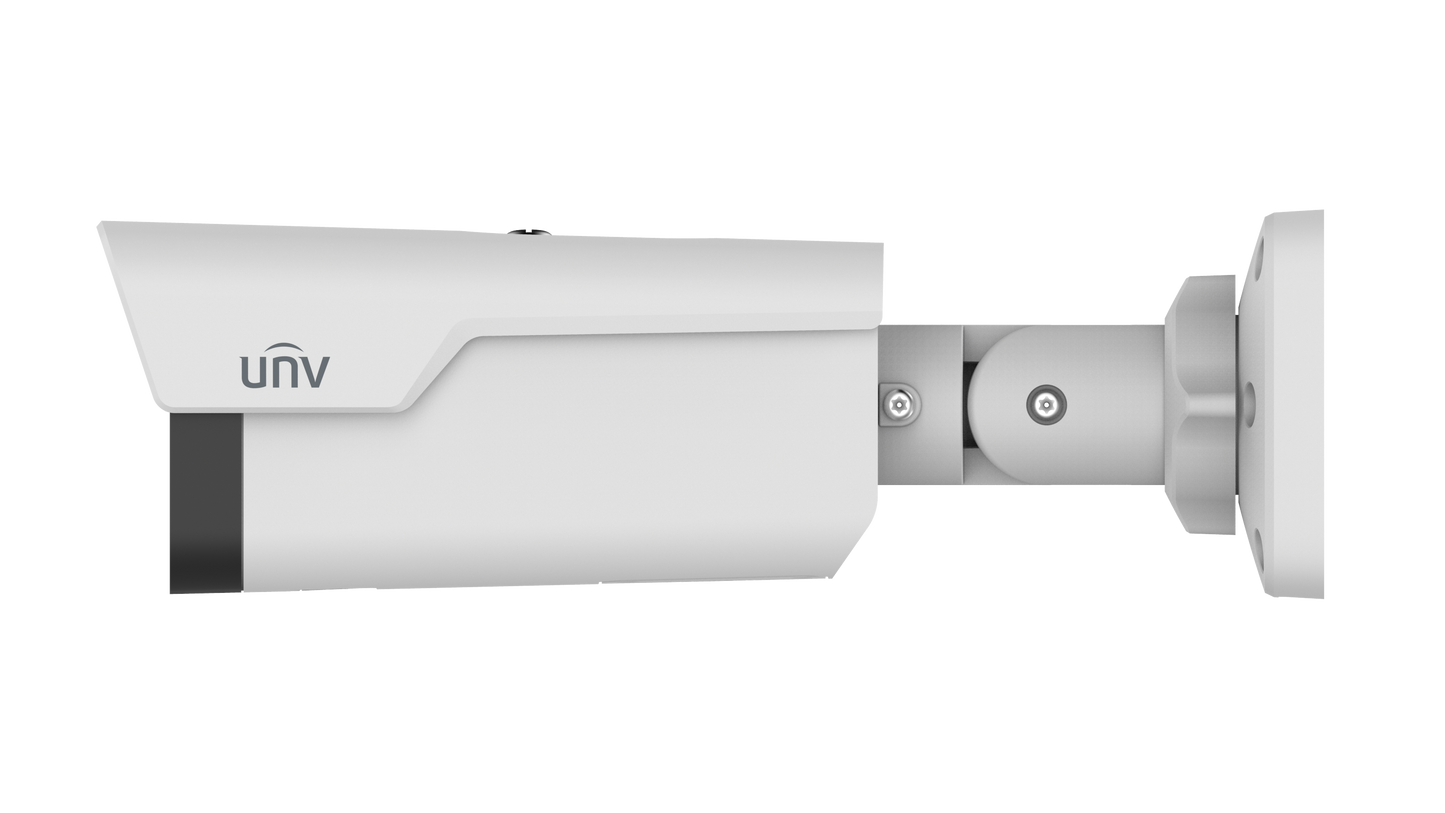

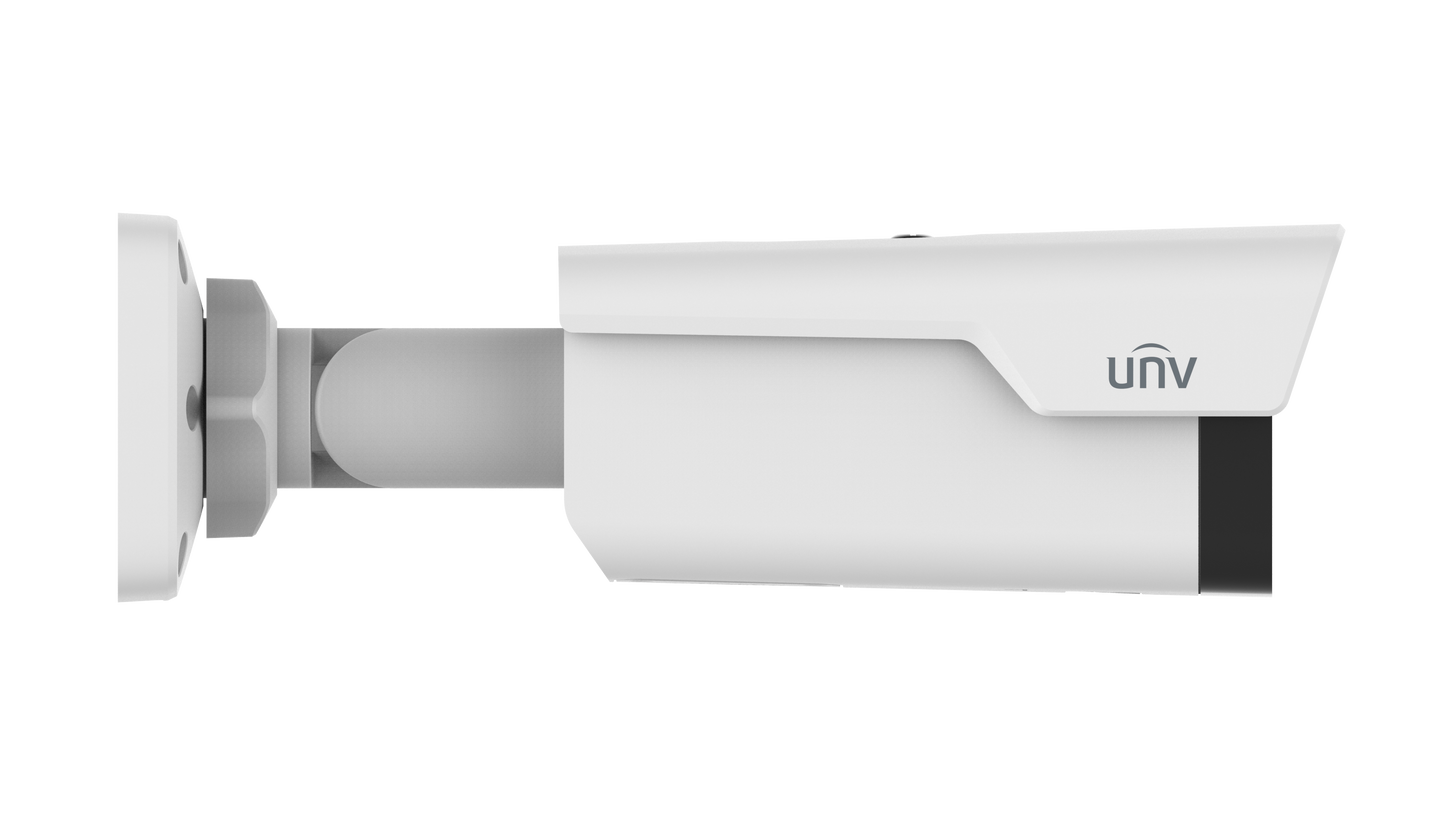

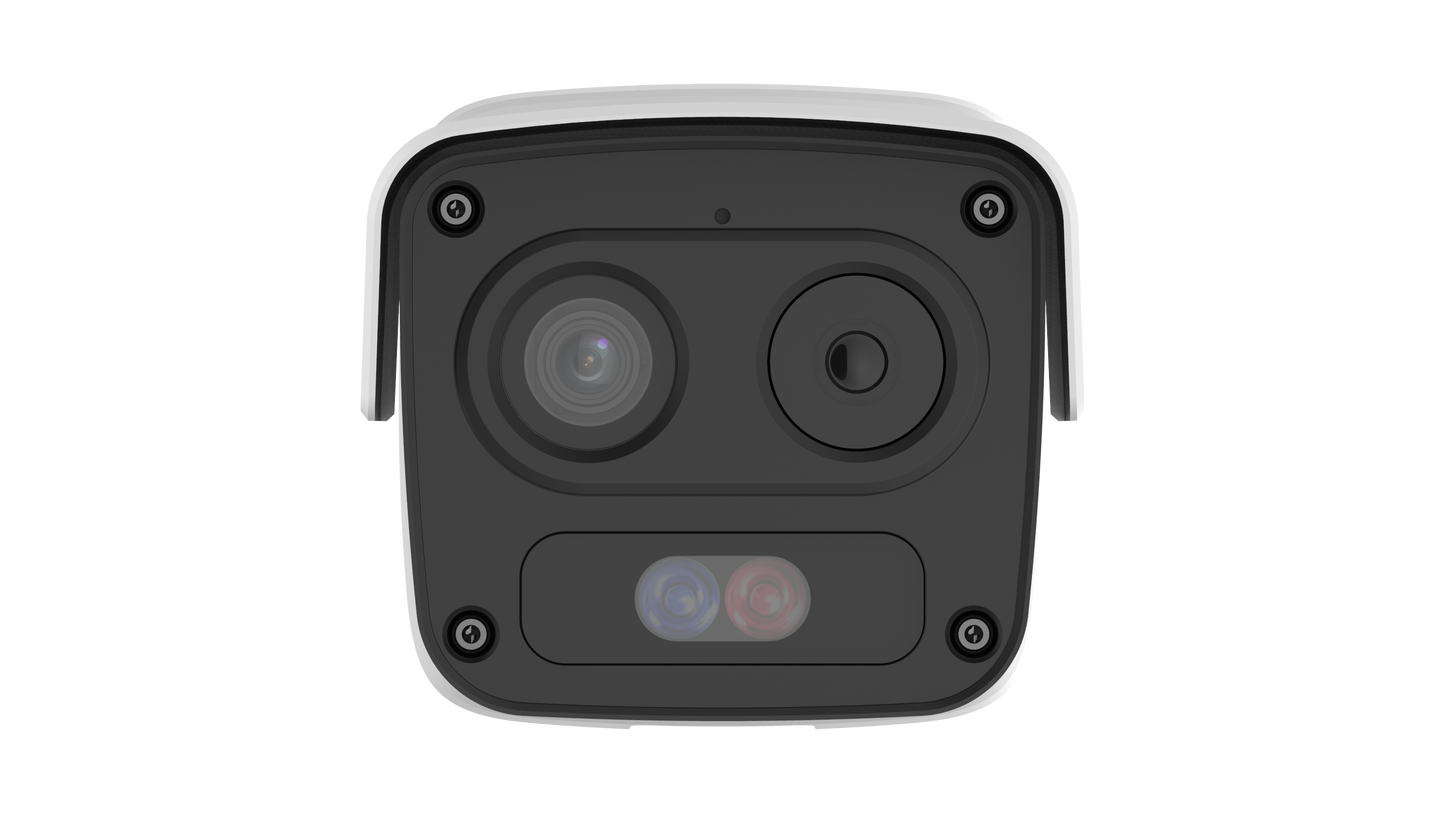

Uniview Thermal & Optical Dual-spectrum Bullet Network Camera - TIC2A32SA-F7-4F6AC-I1
Uniview Thermal & Optical Dual-spectrum Bullet Network Camera - TIC2A32SA-F7-4F6AC-I1
Couldn't load pickup availability
This Uniview Thermal & Optical Dual-spectrum Bullet Network Camera offers enhanced surveillance capabilities with its advanced thermal and optical dual-spectrum technology. It provides accurate and reliable temperature readings, even in low light conditions. With high resolution imaging and a durable design, this camera is perfect for monitoring and securing a wide range of environments.
Features
• Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to more various scenes
• 1/2.8" target surface, high sensitivity sensor, satisfy the need of starlight monitoring
• Thermal module support reliable fire detection, smoking detection and fire shield area
• Thermal module supports temperature detection and cold&hot spot tracking which highlights the abnormal temperature, and link to alarm
• Thermal & Optical dual-spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
• Optical module supports smog recognition, which can help with fire alarm reconfirm
• Support picture-in-picture mode, real-time contrast live, more convenient and clear
• Support audio and light alarm, with red and blue warning lights built in
• Ultra 265, H.265, H.264, MJPEG
• Max 2688*1520@30fps in the optical module and Max 960P@30fps in the thermal module
• DC12V±25% or PoE power supply
• Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 G
Specifications
| Camera | ||||||||||||
| Sensor-Optical | 1/2.8" CMOS | |||||||||||
| Min. Illumination-Optical | Colour: 0.003 lux (F1.6, AGC ON) B/W: 0.002 lux(F1.6,AGC ON) 0 lux with IR |
|||||||||||
| Day/Night-Optical | IR-cut filter with auto switch (ICR) | |||||||||||
| Sensor-Thermal | Vanadium Oxide Uncooled Focal Plane Arrays | |||||||||||
| Original Resolution-Thermal | 256*192 | |||||||||||
| NETD | < 50 mk @ F1.0 @ 25 ℃ | |||||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s |
|||||||||||
| WDR | 120dB | |||||||||||
| S/N | >56dB | |||||||||||
| Lens | ||||||||||||
| Lens Type-Optical | 6.0 mm | 4mm | 8.0 mm | |||||||||
| Iris-Optical | F1.6 | |||||||||||
| Lens Type-Thermal | 7.0 mm | 3.2 mm | 10.0 mm | |||||||||
| DORI | ||||||||||||
| DORI Distance (Detect)-Optical | 135.0m(442.9ft) | 90.0m(295.3ft) | 180.0m(590.6ft) | |||||||||
| DORI Distance (Observe)-Optical | 54.0m(177.2ft) | 36.0m(118.1ft) | 72.0m(236.2ft) | |||||||||
| DORI Distance (Recognize)-Optical | 27.0m(88.6ft) | 18.0m(59.1ft) | 36.0m(118.1ft) | |||||||||
| DORI Distance (Identify)-Optical | 13.5m(44.3ft) | 9.0m(29.5ft) | 18.0m(59.1ft) | |||||||||
| Illuminator | ||||||||||||
| IR Range-Optical | 50m | 50m | 40m | |||||||||
| Light On/Off Control | Auto/Manual | |||||||||||
| Video | ||||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||||
| Video Resolution-Optical | 4MP(2688*1520), Max 30fps | |||||||||||
| Video Resolution-Thermal | 960P(1280*960), Max 30fps | |||||||||||
| Video Bit Rate | 128 Kbps ~ 16 Mbps | |||||||||||
| U-code | Support | |||||||||||
| ROI | Up to 8 areas | |||||||||||
| Video Stream | Triple Streams | |||||||||||
| OSD | Up to 8 OSDs | |||||||||||
| Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) | |||||||||||
| Image | ||||||||||||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||||||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise | |||||||||||
| Defog | Digital Defog | |||||||||||
| Palette-Thermal | white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce | |||||||||||
| Intelligent | ||||||||||||
| Smart Intrusion Prevention | Thermal or Optical channel: Support False Alarm Filtering: Line Crossing Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection | |||||||||||
| Smoke and Fire Detection | Optical channel support detecting smoke directly or helping in double-check the fire alarm | |||||||||||
| Temperature Measurement Accuracy | ±8°C (±14.4°F) or ±8% (whichever is greater) | |||||||||||
| Temperature Range | Selectable between -20°C ~ 150°C (-4°F ~ 302°F) and 100°C ~ 550°C (212°F ~ 1022°F) | |||||||||||
| Temperature Detection-Thermal | Thermal channel supports rule-based temperature measurements.Supports real-time display of the highest, lowest, and average temperatures in the rule-defined area on the screen | |||||||||||
| Smoking Detection-Thermal | Thermal channel supports the detection of smoking behavior in the environment | |||||||||||
| Events | ||||||||||||
| Fire Detection | Thermal channel supports the detection of fire point in the environment | |||||||||||
| Basic Detection-Optical | Motion Detection, Tampering Alarm, Audio Detection | |||||||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | |||||||||||
| Audio | ||||||||||||
| Audio Compression | G.711U, G.711A | |||||||||||
| Audio Bitrate | 128 Kbps | |||||||||||
| Two-way Audio | Support | |||||||||||
| Suppression | Support | |||||||||||
| Sampling Rate | 16KHZ | |||||||||||
| Storage | ||||||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||||||
| Network Storage | ANR | |||||||||||
| Network | ||||||||||||
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH | |||||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||||||
| Client | EZStation, EZLive, EZView | |||||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||||||
| Interface | ||||||||||||
| Audio I/O | 1/1 | |||||||||||
| Alarm I/O | 2/2 | |||||||||||
| Serial Port | 1 channel RS485 interface | |||||||||||
| Built-in Mic | Support | |||||||||||
| Built-in Speaker | Support | |||||||||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||||||||||
| Video Output | Supported (Thermal module) | |||||||||||
| General | ||||||||||||
| Power | DC12V(±25%), PoE(IEEE802.3af) | |||||||||||
| Power Consumption | Max 12W | |||||||||||
| Power Interface | Ø 5.5 mm coaxial power plug | |||||||||||
| Dimensions | 269.1 x 95.7 x 83mm(10.6" x 3.75" x 3.25") | |||||||||||
| Weight | 0.95kg(2.1lb) | |||||||||||
| Working Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing) | |||||||||||
| Surge Protection | 6KV | |||||||||||
| Certification | ||||||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||||||||
| Safety | CE LVD (EN IEC 62368-1:2020+A11:2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||||||
