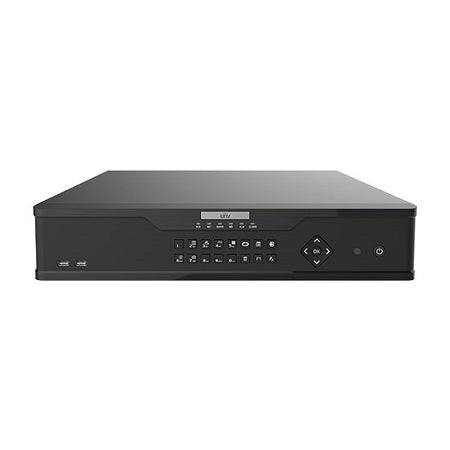

Uniview Prime X Series 32 Channel NVR - NVR304-32X
Uniview Prime X Series 32 Channel NVR - NVR304-32X
Regular price
$2,509.00 USD
Regular price
Sale price
$2,509.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Expertly manage your surveillance system with the Uniview Prime X Series 32 Channel NVR. With 32 channels, this NVR provides robust and reliable recording and playback capabilities for your security footage. Stay in control of your security with the NVR304-32X.
Features
- Uniview
- NVR for IP cameras
- Prime range
- 32CH
- 384 Mbps bandwidth supported
- Maximum resolution 12 Megapixel
- Intelligent functions in 16 Channels
- Alarms
- Audio
- Output 2 x HDMI 4K and VGA
- Space for 4 HDD up to 10 TB
- RAID function
- 1 x eSATA
- RS232, RS485, 3 x USB
- 2 x RJ45
- Output 12 V
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Inputs for IP cameras | LAN port up to 32 channels |
| IP compatible cameras | UNIVIEW, ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Video outputs | 2 HDMI 4K, 1 VGA |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Display resolution | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60H |
| Total bandwidth | 384 Mbps downstream / 384 Mbps upstream |
| Main Stream recording | 12Mpx / 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p / D1 / 2CIF / CIF |
| Capacity | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080p@30, 32 x 960p@25 |
| Alarms | 16 inputs / 4 relay |
| Recording method | Manual, programmed, motion detection |
| Intelligent functions | People Counting, Face Detection, Intrusion Detection, Line Crossing, Scenery Change, Blur Detection, Auto Tracking, Removed object, Abandoned object |
| Smart Intrusion Prevention | Available at 16 channels |
| Facial recognition channels | 16 channels |
| LPR Channels | 8 channels |
| Fisheye | Dewarping |
| POS (Point of Sale) | No |
| External Backup | USB Memory Stick / USB HDD / eSATA |
| RAID | 1/5 (Redundant mode) |
| Internal memory | 4 SATA HDD 3.5" of up to 10 TB (not included) |
| Communication | 3 x USB / 2 x RJ45 (Ethernet) |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | AC 100-240 V / < <25W |
| Dimensions / Weight | 89 (H) x 442 (W) x 426 (D) mm / 5.7 Kg |
