TriStar Security Products

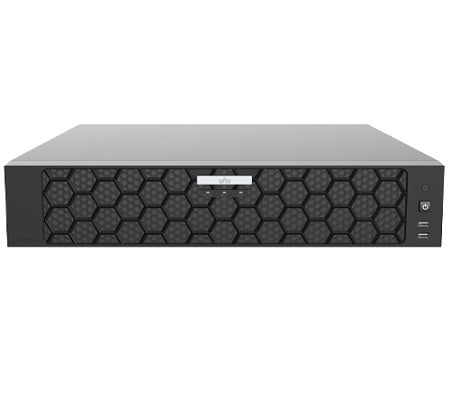

Uniview Prime B Series 32 Channel NVR - NVR508-32B

Uniview Prime B Series 32 Channel NVR - NVR508-32B

Regular price $3,009.00 USD
Regular price Sale price $3,009.00 USD
Sale Sold out
Shipping calculated at checkout.

The Uniview Prime B Series 32 Channel NVR - NVR508-32B offers advanced surveillance capabilities with its 32 channel capacity. Designed with Uniview's advanced technology, this NVR provides efficient and reliable video storage and management for your security needs.

Features

  • Uniview
  • NVR for IP cameras
  • Prime range
  • 32 CH
  • 320 Mbps bandwidth supported
  • Maximum resolution 16 Megapixel
  • 2 x RJ45
  • Compression Ultra265/H.265/H.264
  • VGA and HDMI 4K output
  • Mouse
  • Space for 8 HDD
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible


Specifications

Brand Uniview
Range Prime
IP compatible cameras UNIVIEW, ONVIF
Video outputs 1 HDMI 4K, 1 VGA
Video compression format Ultra H.265 / H.265 / H.264
Network interface 2 RJ-45 10M / 100M / 1000M
Total bandwidth 320 Mbps downstream / 160 Mbps upstream
Main Stream recording 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Display resolution HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60

VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Capacity Ultra 265/H.265: 2x16MP@30, 2x12MP@30, 4x4K@30, 6x5MP@30, 8x4MP@30, 10x3MP@30, 16x1080P@30, 32x960P@25, 36x720P@30, 64xD1

H.264: 2x16MP(4800x2688)@30, 2x12MP@30, 2x4K@30, 4x5MP@30, 6x4MP@30, 8x3MP@30, 14x1080P@30, 28x960P@25, 30x720P@30, 64xD1
Smart features by camera 8 channels
VCA detection by camera Intrusion detection, Cross line detection, Entry area, Exit area, Blur detection, Scene change detection, Object left behind, Object removed, Auto tracking, UMD (Ultra Motion Detection)
Recording method Manual, programmed, motion detection
External Backup USB / HDD USB memory
Bidirectional audio 1 input / 1 RCA output
Alarms 16 Inputs / 4 Outputs
Internal memory 8 SATA HDD 3.5" of up to 8 TB (not included)
Communication 2 x USB 2.0 / 1 x RJ45 (Ethernet)
Remote access Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Power 100~240V AC / 32W
Dimensions / Weight 442mm × 426mm × 89mm / 4 Kg
