TriStar Security Products

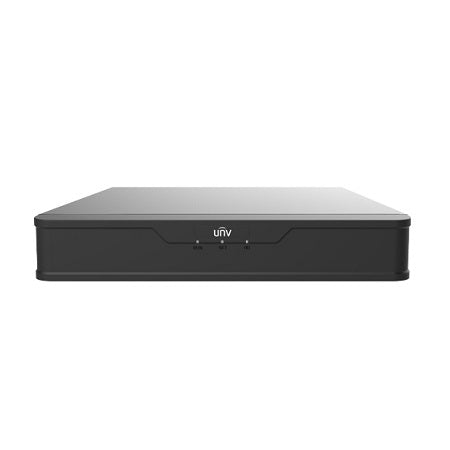

Uniview Prime B Series 16 Channel NVR - NVR501-16B
Uniview Prime B Series 16 Channel NVR - NVR501-16B
Regular price
$409.00 USD
Regular price
Sale price
$409.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Uniview Prime B Series 16 Channel NVR - NVR501-16B offers reliable and efficient video recording for your surveillance needs. With 16 channels and advanced technology, you can easily monitor your property with peace of mind. Experience top-quality video footage with this professional-grade NVR.
Features
- Support Ultra 265/H.265 video formats
- 4/8/16-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 1 SATA HDD, up to 8TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Complies with Section 889 of the NDAA
Specifications
| Category | Specifications |
|---|---|
| Video/Audio Input | |
| IP Video Input | 16-ch |
| Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Browser | |
| Internet Explorer | IE10/11 (for Windows) |
| Firefox | Version 52.0 and above (for Windows) |
| Chrome | Version 45 and above (for Windows) |
| Edge | Version 79 and above (for Windows) |
| Video/Audio Output | |
| HDMI Output | 4K (3840x2160)@30, 1920x1080p@60/50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 |
| VGA Output | 1920x1080p@60/50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch |
| Liveview Display | 1/4/6/8/9/16 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding Format | Ultra 265/H.265 |
| Live View/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF |
| Capability | 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30 |
| Hard Disk | |
| SATA Interface | 1 SATA interface |
| Capacity | Up to 8TB per disk (The maximum HDD capacity varies with environment temperature) |
| Smart Features | |
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, SMD (Smart Motion Detection) |
| VCA Search | Behavior Search, People Counting Report |
| People Counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP) | Total 4-ch |
| General Alarm | |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, HDD Low Space, HDD Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet interface |
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 |
| RS232 | Not available |
| RS485 | Not available |
| Alarm In/Out | Not available |
| General | |
| Power Supply | 12V DC, Power Consumption: ≤ 6W (without HDD) |
| Working Environment | +14°F to +131°F (-10°C to +55°C), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 10.2" × 8.7" × 1.8" (260mm × 222mm × 47mm) |
| Weight (without HDD) | 2.16 lb (≤ 0.98 kg) |
| Certification | |
| CE Certification | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC Certification | Part15 Subpart B, ANSI C63.4 |
| Other Certifications | UL, RoHS, WEEE |
