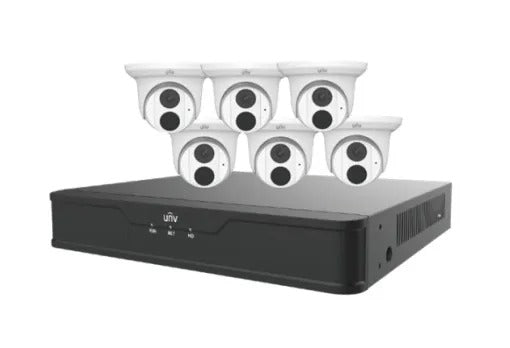

Uniview NVR kits with 6 Unit 4MP camera with 1 Recorder - EK-S31P8T46T2-V3
Uniview NVR kits with 6 Unit 4MP camera with 1 Recorder - EK-S31P8T46T2-V3
Regular price
$1,599.00 USD
Regular price
Sale price
$1,599.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Enhance your security with the Uniview NVR kit, featuring 6 high-resolution 4MP cameras and a powerful recorder. With advanced technology and easy installation, this kit provides comprehensive coverage for your property. Protect your assets and keep an eye on your surroundings with the EK-S31P8T46T2-V3 model.
Features
NVR301-08S3-P8
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Plug & Play with 8 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD
- Support cloud upgrade
EC-T4F28M-V3
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
Specifications
| Model | NVR301-08S3-P8 |
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Network | |
| Incoming Bandwidth | 64Mbps |
| Outgoing Bandwidth | 48Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 8-ch |
| Liveview display | 1/4/6/8/9 |
| Corridor Mode Screen | 3/4/5/7/9 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Live view/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 |
| Hard Disk | |
| SATA | 1 SATA interfaces |
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
| Smart | |
| VCA Detection by Camera | Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD) |
| VCA Search | Face Search, Behavior Search |
| General Alarm | |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100Mself-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| RS232 | NA |
| RS485 | NA |
| Alarm In | NA |
| Alarm Out | NA |
| PoE | |
| Interface | 8 RJ-45 10M/100Mself-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 75W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 52V DC Power Consumption: ≤9 W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8") |
| Weight (without HDD) | ≤1.1kg (2.43lb) |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC | Part15 Subpart B, ANSI C63.4 |
