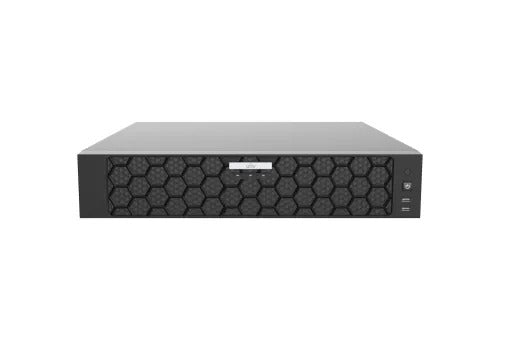

Uniview Network Video Recorder with 32 channel - NVR508-32E-IQ

Uniview Network Video Recorder with 32 channel - NVR508-32E-IQ

$3,669.00 USD
$3,669.00 USD
Sale Sold out
Shipping calculated at checkout.

The Uniview Network Video Recorder offers 32 channels for seamless video management. With the NVR508-32E-IQ, you can easily record, store, and access high-quality footage. Increase security and streamline surveillance with this advanced system.

Features

  • Support Ultra 265/H.265/H.264 video formats
  • 32/64‑channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols
  • Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
  • Up to 32 Megapixels resolution recording
  • Support N+1 Hot spare
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator


Specifications

Decoding Description
DecodingFormat Ultra 265,H.265,H.264
DecodingCapability NVR508‑32E‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30
Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 32 x 720P@30 NVR508‑64E‑IQ:Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30
Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30
AudioCompression G.711A,G.711U
Network Description
IncomingBandwidth Smart Off：384Mbps
Smart On：200Mbps
OutgoingBandwidth Smart Off：384Mbps
Smart On：200Mbps
RemoteUsers 128
Protocols TCP/IP;P2P;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6
Browser(Plugin) Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above)
Video/AudioInput Description
IPVideoInput NVR508‑32E‑IQ:32‑ch NVR508‑64E‑IQ:64‑ch
RCAAudioInput 1‑ch
Video/AudioOutput Description
HDMIOutput HDMI:4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGAOutput VGA:1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCAAudioOutput 2‑ch
LiveviewDisplay NVR508‑32E‑IQ:1/4/6/8/9/16/25/32 NVR508‑64E‑IQ:1/4/6/8/9/16/25/36/64
CorridorModeScreen 3/4/5/7/9/10/12/16/32
Two-wayAudio Description
Two-wayAudio 1‑ch,RCA(Using the audio input and output)
Snapshot Description
FTP/Schedule/EventSnapshot 16‑ch snapshot,up to 4K resolution
Recording Description
RecordingResolution 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Smart Description
VCADetectionbyIPC Face Detection;Vehicle Detection;SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection,Smoking Detection,Temperature Measurement,Smoke and Fire Detection);People Counting(People Flow Counting,Crowd Density Monitoring);Video Metadata;Traffic Monitoring
SmartbyNVR Face detection;Smart Intrusion Prevention (SIP);Ultra Motion Detection(UMD)
VCASearch Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map
SmartbyIPC All channels (up to 16 images/s in total)Face Detection,Vehicle Detection,Temperature Detection,SIP,UMD,Video Metadata,Traffic Monitoring
FacePictureLibrary Up to 128 face picture libraries,with up to 40,000 face pictures in total
VehiclePictureLibrary Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total
SIPbyNVR 8‑ch
UMDbyNVR 16‑ch
CapacityofSnapshotRecords 3 millions records for face snapshot;2 millions records for vehicle snapshot;2 millions records for SIP;2 millions records for video Metadata
Alarm Description
GeneralAlarm Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarm IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;Array Damaged;Array Degraded
GUILanguage Description
GUILanguage 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
HardDisk Description
SATA 8 SATA Interfaces
Capacity Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
DiskGroup Support
RedundantStorage Support
DiskArrayType RAID 0,1,5,6,10
ExternalInterface Description
NetworkInterface 2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USB Front panel: 2 x USB2.0;Rear panel: 2 x USB3.0
RS485 1
RS232 1
AlarmIn 16‑ch
AlarmOut 10‑ch
eSATA 1
PowerOutput 12V
PowerSupply AC 100~240V
WorkingEnvironment Description
WorkingTemperature ‑10°C ~ + 50°C (+14°F ~ +122°F)
WorkingHumidity ≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD) ≤ 20W
Dimensions Description
Weight(withoutHDD) ≤ 5.5Kg (12.1lb)
Height 2U
Dimensions 442mm × 432mm × 86mm (17.4"×17.0"×3.4")
Certification Description
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC Part15 Subpart B
