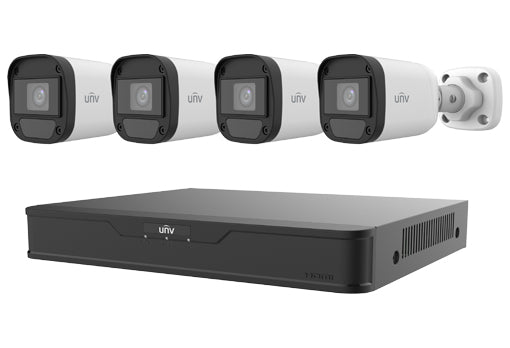

Uniview KIT XVR301-04G3 UAC-B112-F28
Uniview KIT XVR301-04G3 UAC-B112-F28
Regular price
$169.00 USD
Regular price
Sale price
$169.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This Uniview KIT includes the XVR301-04G3 and the UAC-B112-F28, providing advanced surveillance capabilities for your business. Featuring secure and reliable technology, this kit allows for seamless integration and up to 4K resolution. Protect your assets with confidence and peace of mind.
Features
XVR301-04G3
- Supports H.265/H.264 video formats
- Compatible with TVI, AHD, CVI, CVBS, and IP cameras with adaptive access
- 4-channel BNC input
- 1-channel HDMI output and 1-channel VGA output, up to 1920*1080 resolution
UAC-B112-F28
- 2MP high quality image
- Supports TVI/AHD/CVI/CVBS video formats
- IR-cut filter with automatic switch (ICR)
- Supports 180° horizontal flip and 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design for high reliability
- OSD configuration menu available in 11 languages
Specifications
| Model | XVR301-04G3 | |
| Video/Audio Input | ||
| Analog Video Input | 4-ch, BNC | |
| IP Video Input | 2-ch(only IP up to 6ch), each channel up to 4MP | |
| Supported Analog Camera Types |
Support AHD input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps Support TVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps Support CVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
|
| Audio Input | 1-ch, RCA | |
| Audio Compression | G.711U | |
| Video/Audio Output | ||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | HD:2-ch SD:4-ch |
|
| Live view display | HDMI/VGA: 1/4/6/8/9 | |
| Two-way Audio | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 16Mbps (Up to 24Mbps after all analog channel conversion) | |
| Outgoing Bandwidth | 48Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|
| Encoding | ||
| Recording Resolution | 5MP Lite/4MP Lite/1080P/720P/CIF | |
| Recording Frame Rate |
Main stream: | Sub stream: |
| 5MP Lite@12fps | D1@12fps | |
| 4MP Lite@15fps | D1@15fps | |
| 1080P@15fps | D1@15fps | |
| 720P@25fps | D1@25fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |
| Audio Bit Rate | 64Kbps per channel | |
| Decoding | ||
| Capability | Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 |
|
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
|
| General Alarm | ||
| General Alarm | Motion detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 2 x USB2.0 | |
| General | ||
| Power Supply | DC 12V Power Consumption: ≤ 8 W( without HDD ) |
|
| Working Environment | -10°C to + 55°C ( +14°F to +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") | |
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |
| Certification | ||
| Certification | UL , CE , FCC , RoHS , WEEE | |
| Model | UAC-B112-F28 |
| Sensor | |
| Pixel | 2MP |
| Size | 1/3" |
| Minimum Illumination | 0.02 lux (F2.0, AGC ON) 0.00 lux (IR on) |
| Lens | |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Angle of View | H: 90.5° V: 49.6° D: 109.5° |
| Illuminator | |
| Illuminator | One IR illuminator |
| Illumination Distance | 20m |
| Lifetime | ≥60,000 hours |
| Video | |
| Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) |
| Frame Rate | TVI/AHD/CVI: 1080P@30fps, 1080P@25fps; 720P@30fps, 720P@25fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
| Image | |
| Exposure Mode | 4 modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 3 modes: Auto (default), Day, Night |
| Digital Noise Reduction | 2D |
| White Balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Smart IR | Support |
| Flip | Supports 180° horizontal flip, 180° vertical flip. |
| Interface | |
| Power | 5.5mm power interface |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30℃ to 60℃(-22℉ to 140℉) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge Protection | 4KV |
| Ingress Protection | IP67 |
| General | |
| Power | DC 12V(±25%), with reverse polarity protection and surge protection, Max 2.88W |
| Mount | 3D bracket supplied, surface mount (default), optional backbox, pole mount bracket |
| Dimensions | 142mm × 63mm × 65mm (5.6" × 2.5"× 2.6") (L×W×H) |
| Material | Plastic |
| Weight | 135g(0.30lb) |
| Certification | CB, CE, FCC |
