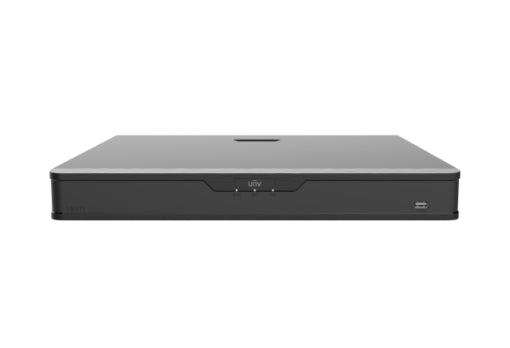

Uniview Digital Video Recorder - XVR302-16U3
Uniview Digital Video Recorder - XVR302-16U3
Regular price
$1,019.00 USD
Regular price
Sale price
$1,019.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Uniview Digital Video Recorder - XVR302-16U3 is a high-quality, reliable recording device for all your surveillance needs. With advanced technology and user-friendly features, this DVR offers unprecedented video quality and storage options. Its robust design ensures maximum durability and security, providing peace of mind for your home or business. Upgrade to the Uniview XVR302-16U3 and experience the benefits of cutting-edge surveillance technology.
Features
- Support H.265/H.264 video formats
- Support audio over coaxial cable (TVI cameras)
- Support TVI, AHD, CVI, CVBS, and IP cameras with adaptive access
- 16 channel BNC input
- Support 1 channel CVBS output, 1 channel VGA output, and 1 channel HDMI output at up to 4K (3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
Specifications
| Video/Audio Input | Description |
| IP Video Input | 16‑ch |
| Analog Video Input | 16‑ch, BNC |
| Max IP Video Input | 32‑ch |
| Supported Analog Camera Types | Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
| BNC Audio Input | 16‑ch, channel audio |
| RCA Audio Input | 4‑ch |
| Video/Audio Output | Description |
| HDMI Output | HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| BNC Video Output | 1‑ch |
| RCA Audio Output | 1‑ch |
| Live View Display | HDMI/VGA: 1/4/6/8/9/25/32 |
| Encoding/Decoding | Description |
| Recording Resolution | 8MP/5MP/4MP/1080P/720P/D1 |
| Recording Frame Rate | Main stream: 8MP@8fps Sub stream: D1@8fps Main stream: 5MP@12fps Sub stream: D1@12fps Main stream: 4MP@15fps Sub stream: D1@15fps Main stream: 1080P@25fps Sub stream: D1@25fps Main stream: 720P@30fps Sub stream: D1@30fps |
| Audio Sample Rate | 8KHz,16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Decoding Capability | Analog: 8 x 8MP@8, 8 x 5MP@12, 8 x 4MP@15, 8 x 1080P@25, 16 x 720@30 IP: 2 x 8MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 |
| Coaxial Cable | Description |
| Audio over Coaxial Cable(Form) | 16‑ch, One‑way Audio(TVI) |
| Two-way Audio | Description |
| Two-way Audio | 1‑ch, RCA(Using the audio input and output) |
| Analog Snapshot | Description |
| FTP/Schedule/Event Snapshot | Schedule/FTP/Event snapshot:16‑ch snapshot, up to 704*576 resolution |
| Network | Description |
| Incoming Bandwidth | 80 Mbps (Up to 112 Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP;P2P;UPnP;DHCP;HTTP;HTTPS;DNS;DDNS;SMTP |
| Browser(Plugin) | Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above) |
| Smart | Description |
| Analog Smart by XVR | SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Face Detection;Ultra Motion Detection(UMD) |
| IP Smart by IPC | Face Detection;SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Defocus Detection;Scene Change Detection;Object Removed;Object Left Behind;Auto Tracking |
| VCA Search | Face Search;Behavior Search |
| Smart Functions by XVR | 16‑ch(UMD), 8‑ch(SIP), 2‑ch(Face Detection) |
| Alarm | Description |
| General Alarm | Motion |
| Alert Alarm | IP Conflict;Network Disconnected;Disk offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
| Hard Disk | Description |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| External Interface | Description |
| Network Interface | 1 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface |
| USB | Rear panel: 1 x USB3.0;Front panel: 1 x USB2.0 |
| RS485 | 1 |
| RS232 | NA |
| Alarm In | 8‑ch |
| Alarm Out | 4‑ch |
| Power Supply | DC 12V/5A |
| Working Environment | Description |
| Working Temperature | ‑10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Working Humidity | ≤ 90% RH(non‑condensing) |
| Power Consumption (without HDD) | ≤ 38W |
| Dimensions | Description |
| Weight (without HDD) | ≤2.3 Kg ( 5.07lb ) |
| Dimensions | 380mm × 326mm × 53mm (15.0" × 12.8"×2.1") |
| Certification | Description |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130 |
| FCC | Part15 Subpart B |
