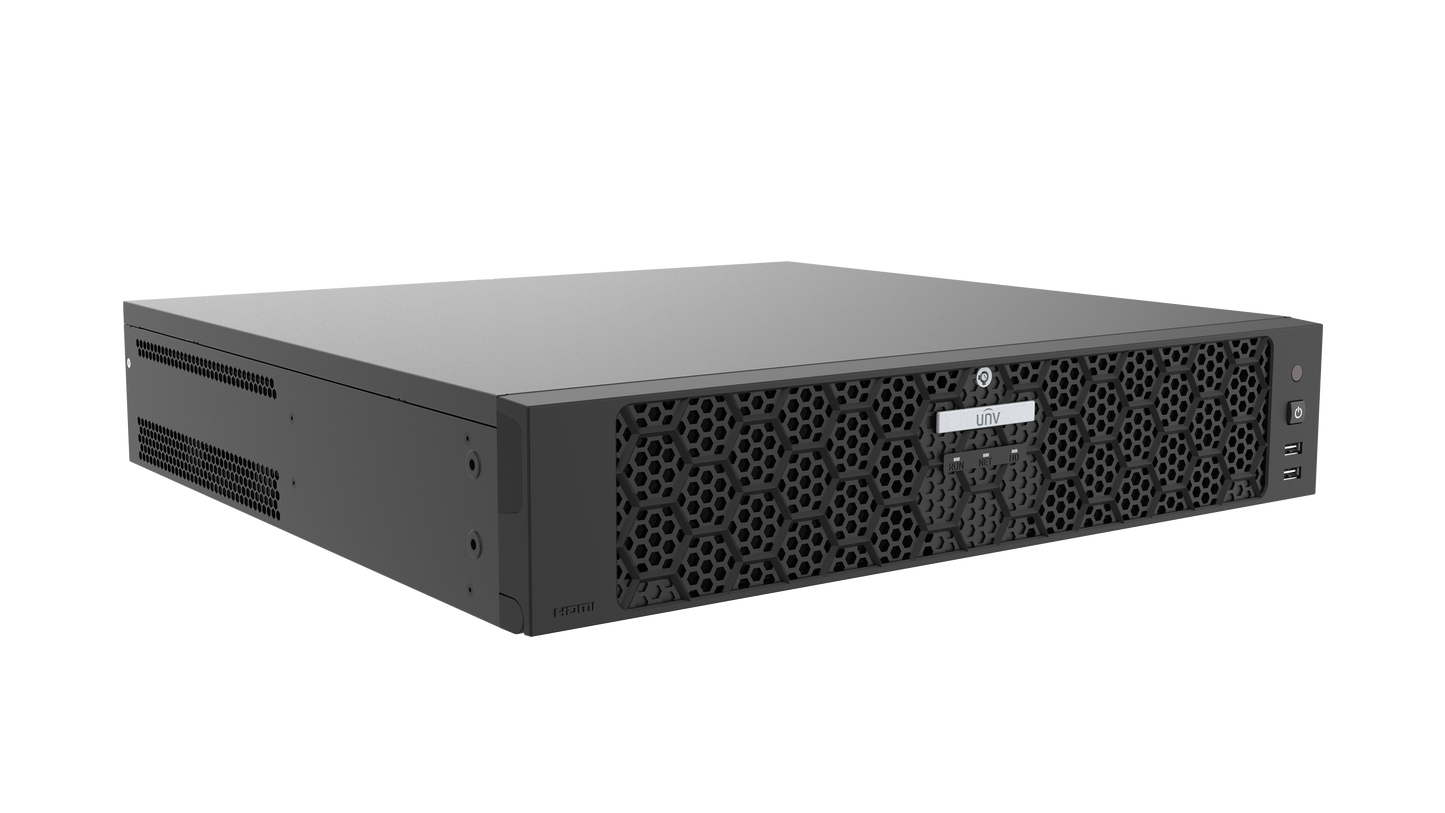

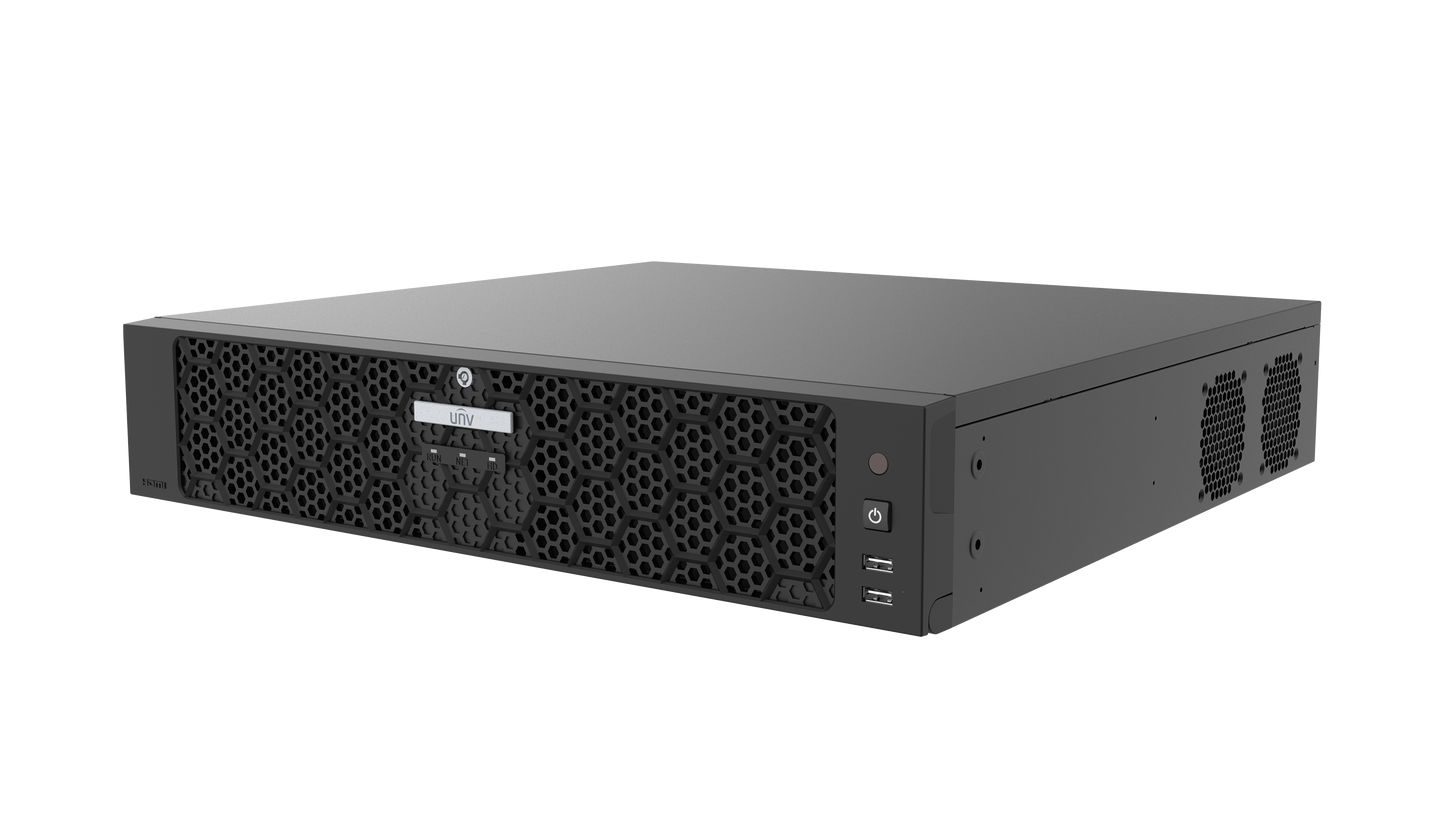

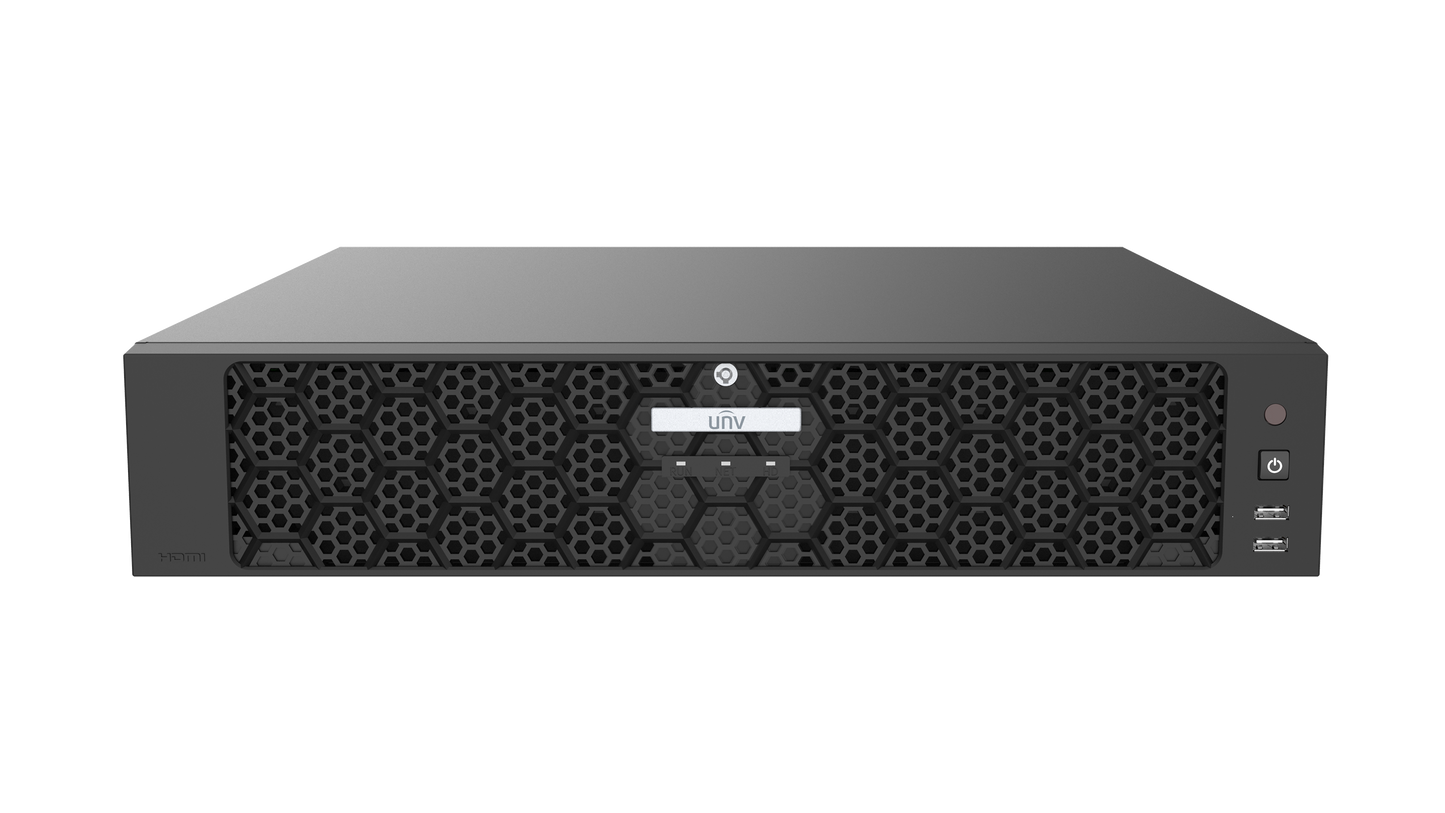

Uniview 8 HDDs 32-ch 2U Network Video Recorder - NVR508-32E-R-IQ
Uniview 8 HDDs 32-ch 2U Network Video Recorder - NVR508-32E-R-IQ
Couldn't load pickup availability
As a leading industry expert, the Uniview 8 HDDs 32-ch 2U Network Video Recorder - NVR508-32E-R-IQ is an advanced and reliable solution for managing and storing high-quality video footage. With the ability to support up to 8 HDDs and 32 camera channels, this 2U NVR provides a secure and efficient method for video recording and management.
Features
• Support Ultra 265/H.265/H.264 video formats
• 32/64-channel input
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols
• Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
• Up to 32 Megapixels resolution recording
• Support N+1 Hot spare
• Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
• Redundant power supply optional
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
Specifications
| Brand | Uniview |
| Range | Prime |
| IP compatible cameras | UNIVIEW, ONVIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Video outputs | 2 HDMI 4K, 2 VGA |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Network interface | 2 RJ-45 10M / 100M / 1000M |
| Decoding Capability | Smart Off: 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30 Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 32 x 720P@30 |
| Display resolution | 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | Smart Off：384Mbps input / 384 Mbps output Smart On：200Mbps / 200 Mbps output |
| Main Stream recording | 32Mpx / 16Mpx / 12Mpx / 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p / D1 / 2CIF / CIF |
| VCA detection by camera | Intrusion detection, Cross line detection, Entry area, Exit area, Blur detection, Scene change detection, Object left behind, Object removed, Auto tracking, UMD (Ultra Motion Detection) |
| VCA search | Motor vehicle search, non-motor vehicle search, human body search, general search, image search, head count report |
| Intelligent functions per camera | 32 channels |
| Intelligent Functions by NVR | SIP over NVR 8 channels UMD per NVR 16 channels |
| Vehicle Image Library | Up to 5 vehicle image libraries, with up to 25.000 images in total |
| Acusearch | Advanced search for specific targets. Allows you to select a target on the live image and search through recordings of the same target. |
| Smart Search + | Artificial intelligence-based VCA rule search on recordings |
| Alarms | 16 Inputs / 10 Outputs |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB / HDD USB memory |
| Internal memory | 8 SATA HDD 3.5" of up to 16 TB (not included) |
| Communication | 2 x USB 2.0 / 2 x RJ45 (Ethernet) |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | 100~240V AC / 50W |
| Dimensions / Weight | 442mm × 448mm × 93mm / 6.5 Kg |
