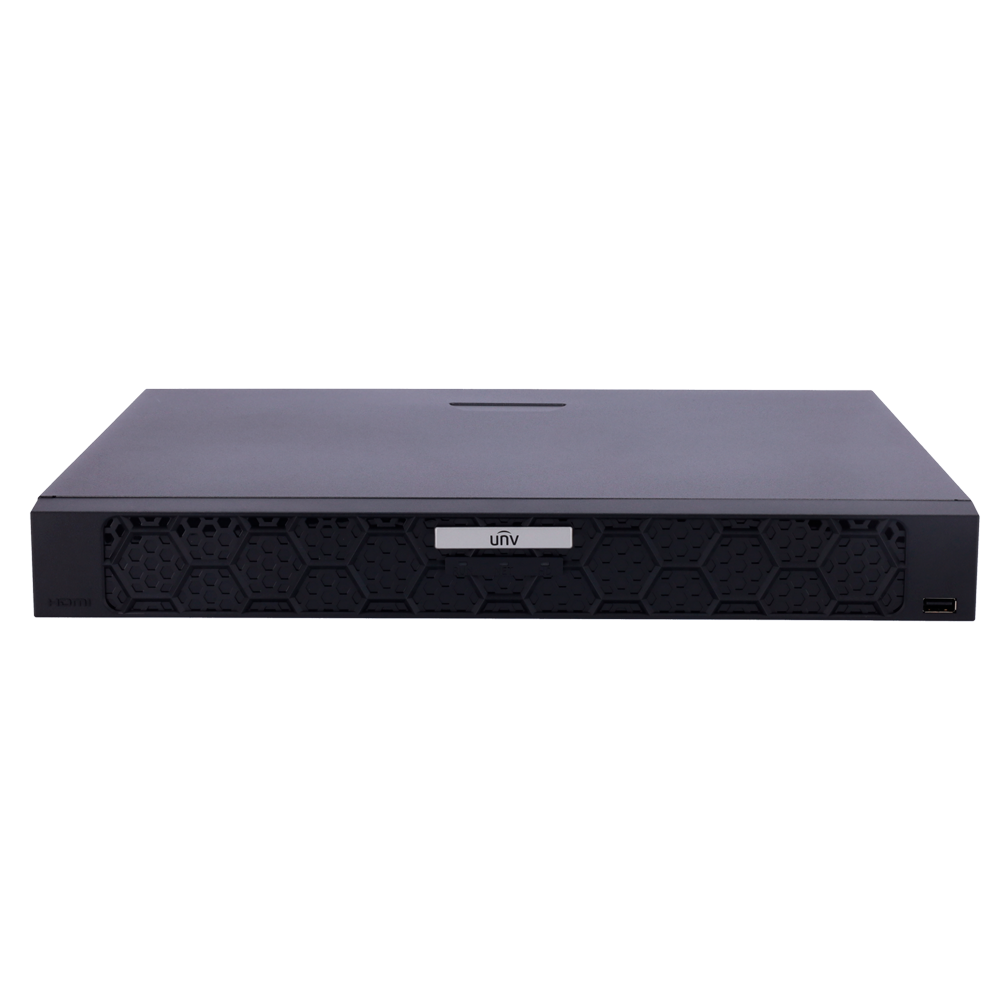

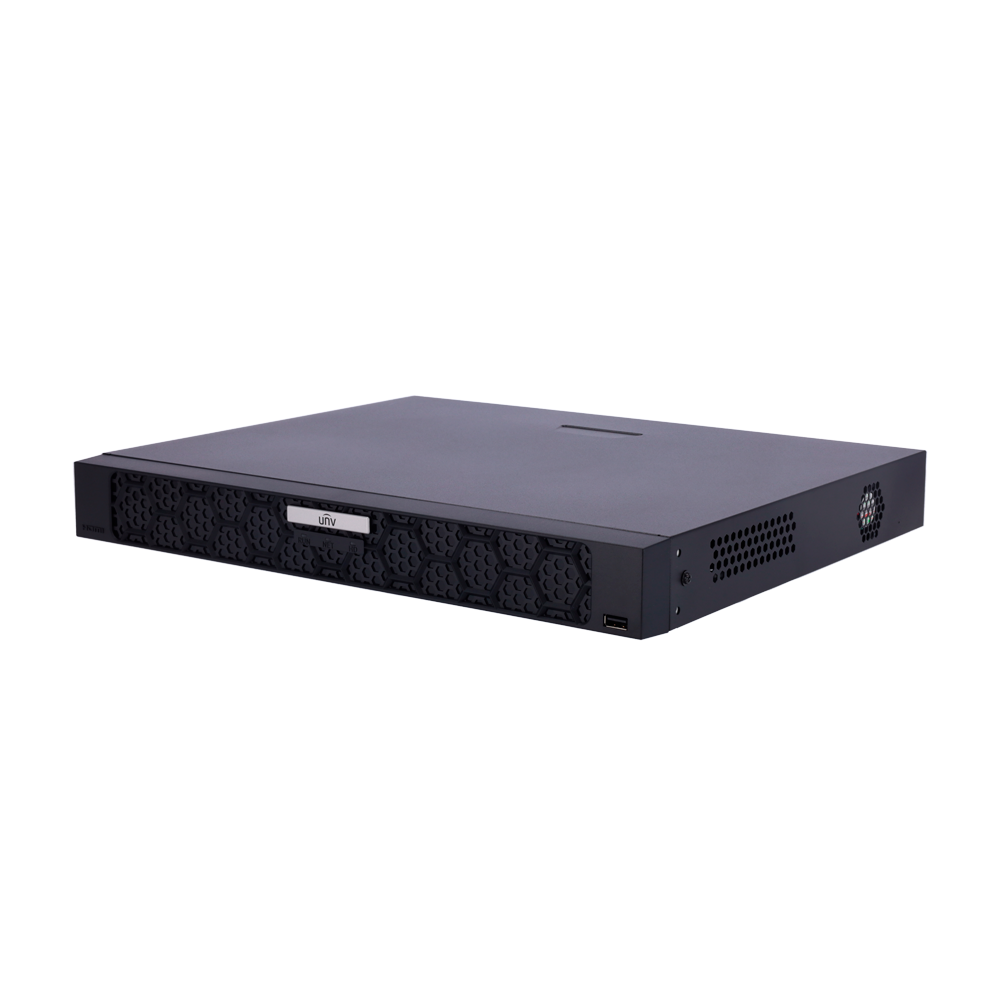

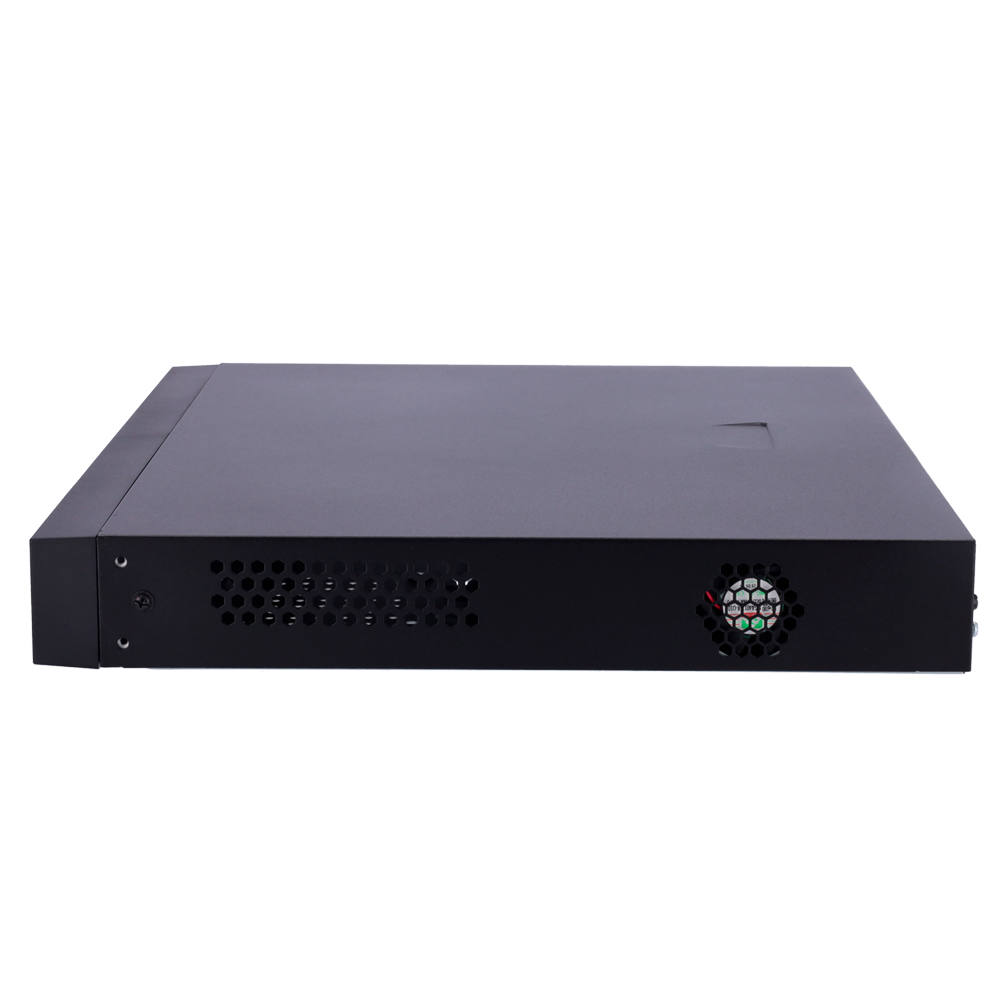

Uniview 8-channel Nvr - NVR502-08B-P8
Uniview 8-channel Nvr - NVR502-08B-P8
Regular price
$869.00 USD
Regular price
Sale price
$869.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Uniview 8-channel Nvr - NVR502-08B-P8 provides the ultimate surveillance solution. With its 8-channel capability and advanced NVR technology, it allows for seamless and efficient monitoring of your security cameras. Experience peace of mind with this state-of-the-art system.
Features
- Uniview
- NVR for IP cameras
- Prime range
- 8 CH
- 8 CH PoE
- 320 Mbps bandwidth supported
- Maximum resolution 8 Megapixel
- 2 x RJ45
- Compression Ultra265/H.265/H.264
- VGA and HDMI 4K output
- Mouse
- Space for 2 HDD
- ONVIF Compatible
- Smart Features
- Compatible with people counting
- Supports vehicle detection
- SIP compatible
- Supports fire and temperature detection
- UMD
Specifications
| Brand | Uniview |
| Range | Prime |
| Channels | 8 channels |
| PoE channels | 8 channels |
| PoE interface | 8 Self-adaptive Ethernet interface RJ-45 10M/100M |
| Maximum power | Max. 30 W for a single port Max. 130 W in total |
| IP compatible cameras | UNIVIEW, ONVIF |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Network interface | 2 RJ-45 10M / 100M / 1000M |
| Display resolution | 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | 320 Mbps downstream / 160 Mbps upstream |
| Main Stream recording | 8Mpx / 6Mpx 5Mpx 4Mpx / 3Mpx / 1080p 720p / D12CIF / CIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Smart features by camera | 8 channels |
| VCA detection by camera | Intrusion detection, Cross line detection, Entry area, Exit area, Blur detection, Scene change detection, Object left behind, Object removed, Auto tracking, UMD (Ultra Motion Detection) |
| People count | Crowd flow counting, crowd density monitoring |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB / HDD USB memory |
| Internal memory | 2 SATA HDD 3.5" of up to 8 TB (not included) |
| Alarms | 8 Inputs / 2 outputs |
| Communication | 2 x USB 2.0 / 2 x RJ45 (Ethernet) |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | 12 V CC/3,3 A ≤ 20 W (without hard disk) |
| Dimensions / Weight | 380mm × 315mm × 53mm / 2,6 Kg |
