TriStar Security Products

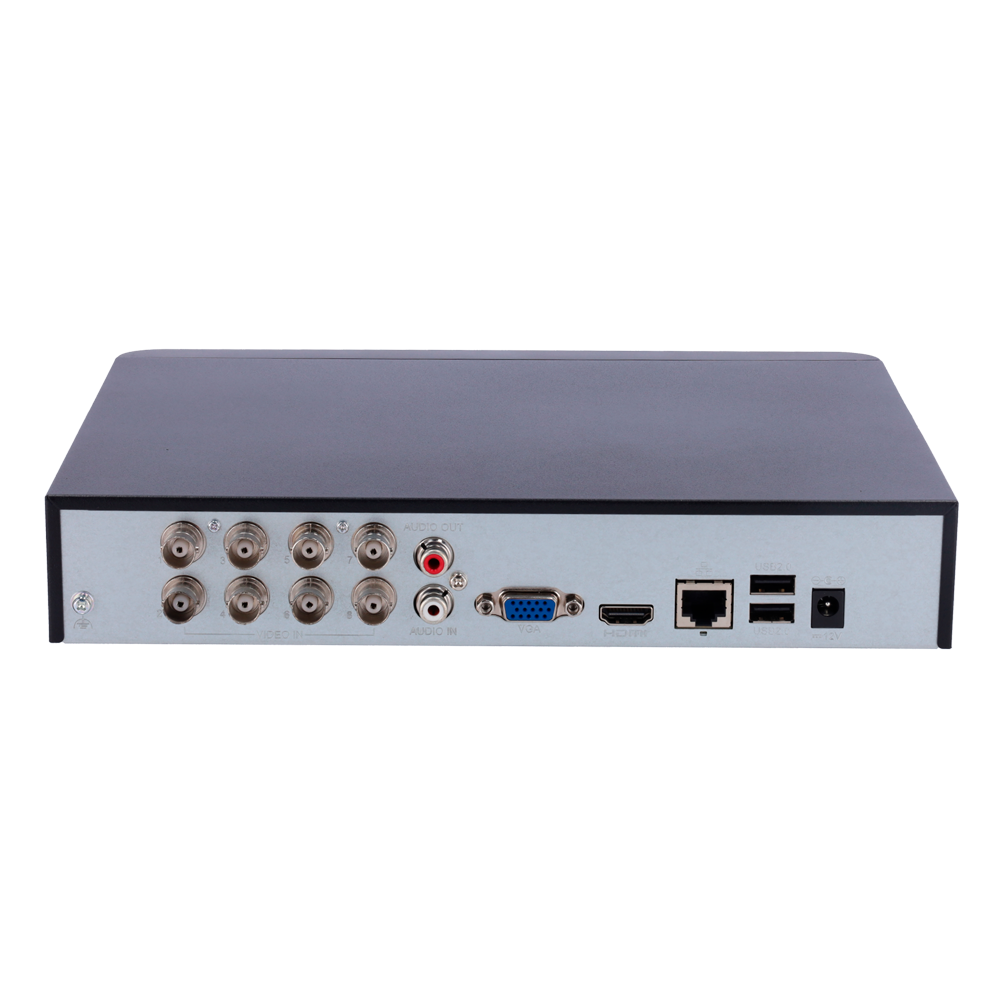

Uniview 8-ch 1-SATA DVR - XVR301-08G3

Uniview 8-ch 1-SATA DVR - XVR301-08G3

Regular price $219.00 USD
Regular price Sale price $219.00 USD
Sale Sold out
Shipping calculated at checkout.

The Uniview 8-channel 1-SATA DVR - XVR301-08G3 provides reliable and efficient video recording for up to 8 cameras. With a 1-SATA hard drive, you can store all your footage without worry. The Uniview brand is known for their advanced technology and this DVR is no exception. Experience top-quality surveillance with the XVR301-08G3.

Features

  • Support H.265/H.264 video formats
  • Support audio over coaxial cable
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 8-channel BNC input
  • Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
  • Long transmission distance over coaxial cable
  • Support mainstream cameras of ONVIF and RTSP protocols
  • XVR301-08G3


Specifications

Brand Uniview
Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 8CH BNC
Hybrid configuration Up to 8 IP Channels (4Mpx) replacing all the BNC channels
Video outputs 1 HDMI Full HD, 1 VGA
Audio inputs 1 Channel RCA
Audio outputs 1 Channel RCA
Bidirectional audio Reusing the audio input/output
Display resolution 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Maximum IP recording resolution 4 Mpx
Analog recording resolution TVI / AHD: 5MP@12FPS; 4MP@15FPS; 1080P@30FPS; 720FPS

CVI: 4MP@15FPS; 1080P@30FPS; 720P@30FPS

*For the correct live display, the combination of resolution and FPS
of the connected analog cameras must be equal to or lower than the specifications indicated, but in no case higher than the specifications indicated.
Main Stream recording encoding 5MPLite@6fps; 4MPLite@8fps; 1080PLite@15fps; 1080P@8FPS; 720P@15FPS
Extra Stream recording encoding D1@15FPS(máx)
Recording method Manual, programmed, motion detection
Internal memory 1 HDD SATA 3.5" of up to 6TB (not included)
External interface 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet)
Remote access Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Power DC 12V / 8W
Dimensions / Weight 46 (H) x 260 (W) x 243 (D) mm / 1 kg
