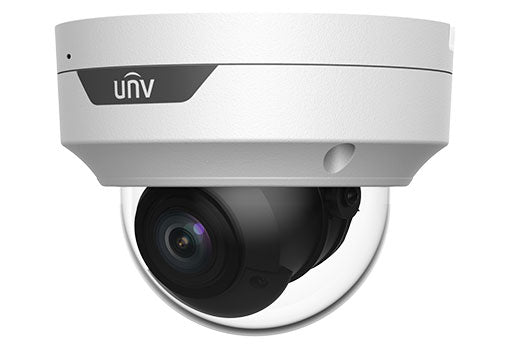

Uniview 5MP HD IR VF Dome Network Camera - IPC3535SR4-ADZK-H
Uniview 5MP HD IR VF Dome Network Camera - IPC3535SR4-ADZK-H
Regular price
$659.00 USD
Regular price
Sale price
$659.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Get crystal clear images with the Uniview 5MP HD IR VF Dome Network Camera. Its high resolution and IR technology provide exceptional clarity even in low light conditions. With a motorized varifocal lens, easily adjust the zoom and focus for perfect coverage. Trust in this industry-leading camera for all your surveillance needs.
Features
• High quality image with 5MP, 1/2.7"CMOS sensor
• 5MP (2880*1620)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Smart IR, up to 40m (131ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• IK10 protection
• Support PoE power supply
• 3-Axis
Specifications
| Camera | ||||||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||||||
| Minimum Illumination | Colour: 0.001 lux (F1.6, AGC ON) 0 lux with IR on |
|||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | |||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||||
| WDR | 120dB | |||||||||
| S/N | >52 dB | |||||||||
| Lens | ||||||||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||||||
| Iris | Fixed | |||||||||
| Field of View (H) | 96.4°~32.7° | |||||||||
| Field of View (V) | 51.3°~18.6° | |||||||||
| Field of View (D) | 101.2°~37.2° | |||||||||
| DORI | ||||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||
| 2.8 | 63(206.7ft) | 25.2(82.7ft) | 12.6(41.3ft) | 6.3(20.7ft) | ||||||
| 12 | 270.0(885.8ft) | 108.0(354.3ft) | 54.0(177.2ft) | 27.0(88.6ft) | ||||||
| Illuminator | ||||||||||
| IR Range | Up to 40m (131ft) IR range | |||||||||
| Wavelength | 850nm | |||||||||
| IR On/Off Control | Auto/Manual | |||||||||
| Video | ||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||||||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
|||||||||
| Video Bit Rate | 128 Kbps~6 Mbps | |||||||||
| U-code | Support | |||||||||
| OSD | Up to 4 OSDs | |||||||||
| Privacy Mask | Up to 4 areas | |||||||||
| ROI | Up to 8 areas | |||||||||
| Video Stream | Dual streams | |||||||||
| Image | ||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||||
| Smart IR | Support | |||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||||
| Dewarping | N/A | |||||||||
| HLC | Support | |||||||||
| BLC | Support | |||||||||
| Defog | Digital Defog | |||||||||
| Events | ||||||||||
| Basic Detection | Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio Detection | |||||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication | |||||||||
| Audio | ||||||||||
| Audio Compression | G.711U, G.711A | |||||||||
| Audio Bitrate | 64 Kbps | |||||||||
| Two-way Audio | N/A | |||||||||
| Suppression | Support | |||||||||
| Sampling Rate | 8KHZ | |||||||||
| Storage | ||||||||||
| Edge Storage | Micro SD, up to 256GB | |||||||||
| Network Storage | ANR, NAS(NFS) | |||||||||
| Network | ||||||||||
| Protocols | IPv4, IPv6 ,IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, RTMP,SSL/TLS | |||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||||||
| Client | EZStation EZView EZLive |
|||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||||
| Interface | ||||||||||
| Audio I/O | N/A | |||||||||
| Alarm I/O | N/A | |||||||||
| RS485 | N/A | |||||||||
| Built-in Mic | Support | |||||||||
| Built-in Speaker | N/A | |||||||||
| WIFI | N/A | |||||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||||
| Video Output | N/A | |||||||||
| Certifications | ||||||||||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
|||||||||
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|||||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
|||||||||
| General | ||||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||
| Power consumption: Max 8.0W | ||||||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||||||
| Dimensions (Ø x H) | Φ128mmx100mm (Ø5.0” x 3.9”) | |||||||||
| Weight | 0.66kg(1.46lb) | |||||||||
| Material | Metal | |||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Surge Protection | 6KV | |||||||||
| Reset Button | Support | |||||||||
