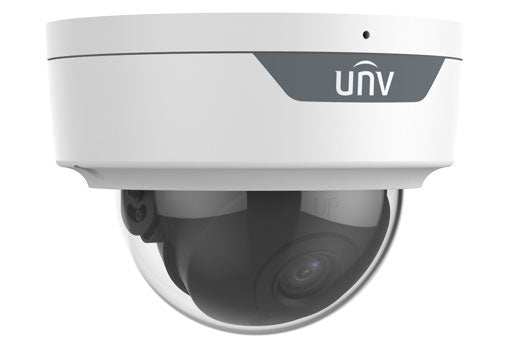

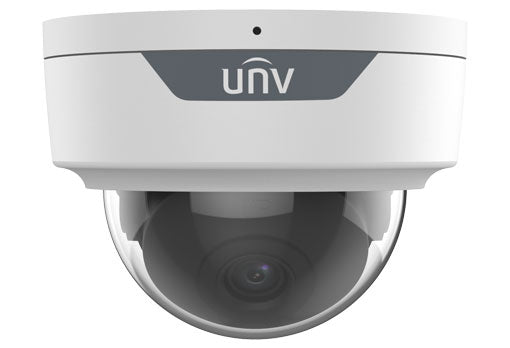

Uniview 5MP HD Intelligent LightHunter IR Fixed Dome Network Camera - IPC325SS-ADF40K-I1
Uniview 5MP HD Intelligent LightHunter IR Fixed Dome Network Camera - IPC325SS-ADF40K-I1
Capture clear and detailed footage with the Uniview 5MP HD Intelligent LightHunter IR Fixed Dome Network Camera. Equipped with intelligent LightHunter technology, this camera is able to capture high-quality images even in low-light conditions. With its fixed dome design, this camera is perfect for indoor or outdoor surveillance.
Features
• High quality image with 5MP, 1/2.7"CMOS sensor
• 5MP (2880*1620)@ 30/25(default)fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• Smart intrusion prevention with Color retrieval
• Auto Scene Match (ASM)(Only WDR)
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 130dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 40m (131ft) IR distance
• Supports 512 G Micro SD card
• IK10 vandal resistant and IP67 protection
Specifications
Camera | |||||||||
Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||||
Minimum Illumination | Colour: 0.002Lux (F1.6, AGC ON) 0 lux with IR on |
||||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
Adjustment angle | Pan: 0° ~ 352° | Tilt: 0° ~ 70° | Rotate: 0° ~ 350° | ||||||
WDR | 130dB | ||||||||
S/N | >56dB | ||||||||
Lens | |||||||||
Lens | 4.0mm@F1.6 | ||||||||
Iris | Fixed | ||||||||
Field of View (H) | 91.25° | ||||||||
Field of View (V) | 43.70° | ||||||||
Field of View (D) | 95.35° | ||||||||
DORI | |||||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |||||
Illuminator | |||||||||
IR Range | Up to 40m (131ft) IR range | ||||||||
Wavelength | 850nm | ||||||||
IR On/Off Control | Auto/Manual | ||||||||
Video | |||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
Frame Rate | Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
U-code | Support | ||||||||
OSD | Up to 8 OSDs | ||||||||
Privacy Mask | Up to 4 areas | ||||||||
ROI | Up to 8 areas | ||||||||
Video Stream | Triple streams | ||||||||
Image | |||||||||
Auto Scene Match (ASM) | Support(Only WDR) | ||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
Digital Noise Reduction | 2D/3D DNR | ||||||||
Smart IR | Support | ||||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
Dewarping | N/A | ||||||||
HLC | Support | ||||||||
BLC | Support | ||||||||
Defog | Digital Defog | ||||||||
Intelligent | |||||||||
Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||||
Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||||
Attribute Collection | SIP with color retrieval | ||||||||
Events | |||||||||
Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | ||||||||
General Function | Watermark, IP address filtering, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication | ||||||||
Audio | |||||||||
Audio Compression | G.711U, G.711A | ||||||||
Audio Bitrate | 64 Kbps | ||||||||
Two-way Audio | Support | ||||||||
Suppression | Support | ||||||||
Sampling Rate | 8KHZ | ||||||||
Storage | |||||||||
Edge Storage | Micro SD, up to 512GB | ||||||||
Network Storage | ANR, NAS(NFS) | ||||||||
Network | |||||||||
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | ||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | ||||||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||
Client | EZStation EZView EZLive |
||||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||||
Interface | |||||||||
Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||||
Output: impedance 600Ω; amplitude 2V [p-p] | |||||||||
Alarm I/O | 1/1 | ||||||||
RS485 | N/A | ||||||||
Built-in Mic | Support | ||||||||
Built-in Speaker | N/A | ||||||||
WIFI | N/A | ||||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||||
Video Output | N/A | ||||||||
Certifications | |||||||||
EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130) FCC (FCC 47 CFR part15 B) |
||||||||
Safety | CE-LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
||||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||||||
Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
||||||||
General | |||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
Power consumption: 6.5W | |||||||||
Power Interface | Ø 5.5mm coaxial power plug | ||||||||
Dimensions (Ø x H) | Φ111 x 83mm (Ø4.4” x 3.3”) | ||||||||
Weight | 0.42kg (0.93lb) | ||||||||
Material | Metal | ||||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Surge Protection | 4KV | ||||||||
Reset Button | Support | ||||||||
Web Client Language | 20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
