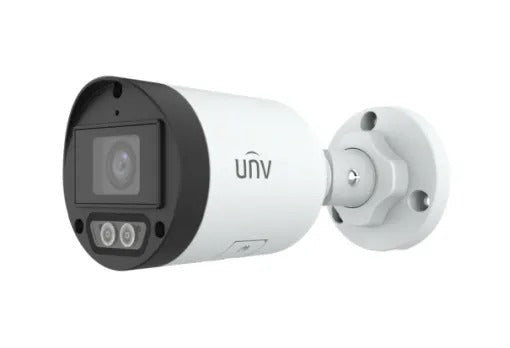

Uniview 5MP Dual Light Fixed Mini Bullet Camera - IPC2125LB-AF28K-DL
Uniview 5MP Dual Light Fixed Mini Bullet Camera - IPC2125LB-AF28K-DL
Regular price
$259.00 USD
Regular price
Sale price
$259.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Experience crystal clear video surveillance with the Uniview 5MP Dual Light Fixed Mini Bullet Camera. Featuring advanced dual light technology and a 5MP resolution, capture detailed footage day and night. The compact design and easy installation make it perfect for versatile security monitoring.
Features
- High quality image with 5MP, 1/3"CMOS sensor
- 5MP (2880*1620)@ 20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra H.265,H.265, H.264
- Support 9:16 Corridor Mode
- Built in Mic
- Smart IR, up to 30m (98ft) IR distance
- Warm Light, up to 30m (98ft) warm light distance
- 2D/3D DNR (Digital Noise Reduction)
- Support 128GB Micro SD card
- IP67 protection
- Support PoE power supply
- 3 Axis
Specifications
| Camera | Description |
| Resolution | 5MP |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Colour: 0.01 lux ( F1.6, AGC ON) 0 lux with IR |
| Day/Night | IR‑cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | DWDR |
| Lens | Description |
| Lens type | IPC2125LB-AF28K-DL:2.8mm IPC2125LB-AF40K-DL:4.0mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | IPC2125LB-AF28K-DL:97.0° IPC2125LB-AF40K-DL:79.0° |
| Field of View (V) | IPC2125LB-AF28K-DL:52.2° IPC2125LB-AF40K-DL:42.3° |
| Field of View (D) | IPC2125LB-AF28K-DL:107.5° IPC2125LB-AF40K-DL:85.1° |
| DORI | Description |
| DORI Distance（Lens） | IPC2125LB-AF28K-DL:2.8mm IPC2125LB-AF40K-DL:4.0mm |
| DORI Distance（Detect） | IPC2125LB-AF28K-DL:63.0m(206.7t) IPC2125LB-AF40K-DL:90.0m(295.3t) |
| DORI Distance（Observe） | IPC2125LB-AF28K-DL:25.2m(82.7ft) IPC2125LB-AF40K-DL:36.0m(118.1ft) |
| DORI Distance（Recognize） | IPC2125LB-AF28K-DL:12.6m(41.3ft) IPC2125LB-AF40K-DL: 18.0m(59.1ft) |
| DORI Distance（Identify） | IPC2125LB-AF28K-DL:6.3m(20.7ft) IPC2125LB-AF40K-DL:9.0m(29.5ft) |
| Illuminator | Description |
| Illumination Distance(IR) | 30m |
| Illumination Distance(Warm Light) | 30m |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | Description |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 5MP (2880*1620)@ 20fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~6144 Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video stream | Dual streams |
| Image | Description |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events | Description |
| Basic Detection | Motion detection; Tampering alarm; Audio detection |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication |
| Audio | Description |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| Storage | Description |
| Edge Storage | Micro SD，up to 128 GB |
| Network Storage | ANR; NAS(NFS) |
| Network | Description |
| Protocols | IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Security | Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
| Client | UNV‑Link; UNV‑Link Pro; EZStation |
| Web Browser | Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | Description |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base‑TX Ethernet |
| Video Output | N/A |
| Certification | Description |
| EMC | CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368‑1) CB (IEC 62368‑1) UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1) |
| Environment | CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP67 (IEC 60529) |
| General | Description |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 2.8W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | 161.4 × 66.1 × 66.3mm (6.3” × 2.6” × 2.6”) |
| Weight | 0.24kg (0.53lb) |
| Material | Metal + Plastic |
| Working Environment | ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Storage Environment | ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing) |
| Surge protection | 4KV |
| Reset button | N/A |
| Web Client Language | 4 Languages English, Russian, Spanish, Vietnamese |
