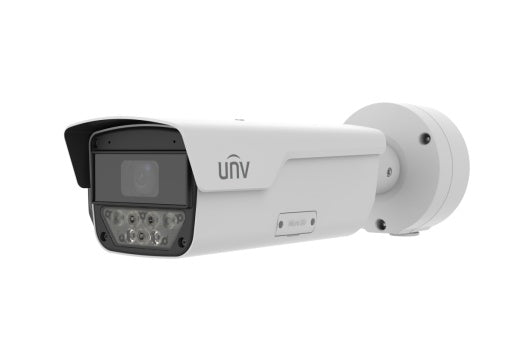

Uniview 4MP LightHunter Intelligent Bullet Network Camera - IPC264SA-AHDX4K-I1
Uniview 4MP LightHunter Intelligent Bullet Network Camera - IPC264SA-AHDX4K-I1
Couldn't load pickup availability
Uniview 4MP LightHunter Intelligent Bullet Network Camera features advanced technology for superior image quality in low light conditions. Its intelligent functions and 4K resolution provide clear and precise surveillance footage. Trust in the expertise of Uniview for your security system needs.
Features
• High quality image with 4MP,1/1.8’’ CMOS sensor
• 2688*1520@60fps in the main stream, deliver detailed live while 60fps keeping it smooth and closer to the real image
• Ultra 265, H.265, H.264, MJPEG
• Support Capturing car license picture and collect other car information when the car passes tripwire
• Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 130 dB Optical WDR (Wide Dynamic Range)
• 5 mixed-lights, up to 120m IR range, up to 30m warm light
• DC12V or PoE (IEEE 802.3at) power supply
• Built-in heater, allow low temperature start-up at -40°C
• Audio 2 in and 1 out, Alarm 3 in and 2 out
• IP67,IK10
Specifications
| Camera | |||||
| Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | ||||
| Lens | 8~32mm@F1.6, AF automatic focusing and motorized zoom lens | ||||
| Iris | P-iris | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 8 | 165.7(543.7ft) | 66.3(217.5ft) | 33.1(108.7ft) | 16.6(54.4ft) | |
| 32 | 444.4(1458.1ft) | 177.8(583.2ft) | 88.9(291.6ft) | 44.4(145.8ft) | |
| Field of View (H) | 42.6°~23.5° | ||||
| Field of View (V) | 15.2°~8.9° | ||||
| Field of View (D) | 52.4°~27.7° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Min. Illumination | Colour:0.0005lux (F1.6, AGC ON) 0 lux with Light |
||||
| WDR | 130dB | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| S/N | >56dB | ||||
| IR Range | Up to 120m (393.7 ft) | ||||
| Warm Light Range | Up to 30m (98.4 ft) | ||||
| Wavelength | 750nm | ||||
| Light On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| Video | |||||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | ||||
| Frame Rate | Main Stream: 4MP(2688*1520),Max 60fps; Sub Stream: 2MP(1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| ROI | Up to 8 areas | ||||
| Video stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Intelligent(Supported when frame rate is below 30) | |||||
| Traffic Monitoring | Support Capturing car license picture and collect other car information when the car passes tripwire Up to 4 lanes can be set Two types of application mode avaliable: High/Low pole |
||||
| Smart intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||
| Event | |||||
| Basic Detection | Audio detection, Tampering Alarm, Motion detection | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Two way audio | Supported | ||||
| Sampling Rate | 8,16KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | EZStation Ezview EZLive |
||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Interface | |||||
| Audio I/O | 2 Input: impedance 1kΩ±10%; amplitude 2.5V [p-p] | ||||
| 1 Output: impedance 600Ω | |||||
| Alarm I/O | 3 Input | ||||
| 2 Output: AC125V 0.5A / DC30V 1A | |||||
| Built-in MIC | Support, built-in mic*2 | ||||
| Built-in Speaker | Support | ||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | ||||
| Serial Port | 1 RS485 | ||||
| Certifications | |||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
||||
| General | |||||
| Power | DC12V(±25%), PoE+(IEEE802.3at) | ||||
| Power consumption: Max 23W | |||||
| Dimensions | 406 x 126 x 130mm(16.0” x 5.0” x 5.1”) | ||||
| Net Weight | 2.14kg(4.72lb) | ||||
| Built-in heater | Support | ||||
| Working Environment | -40°C ~60°C (-40°F ~ 140°F), Humidity: 5%~95% RH (non-condensing) | ||||
| Storage Environment | -40°C ~70°C (-40°F ~ 158°F), Humidity: 5%~95% RH (non-condensing) | ||||
