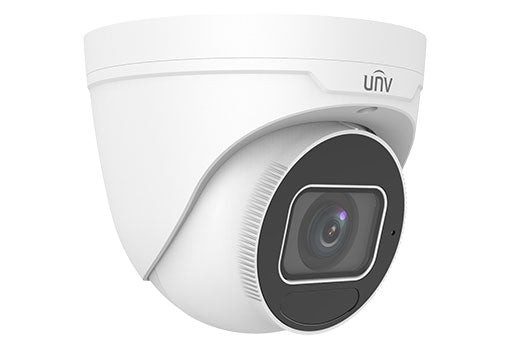

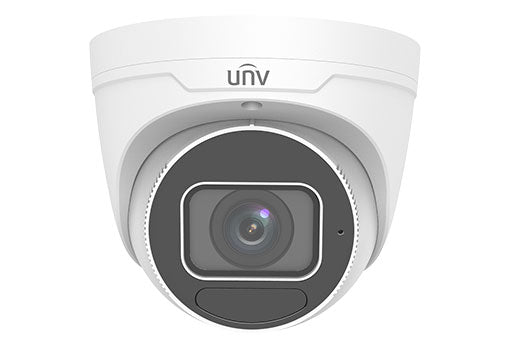

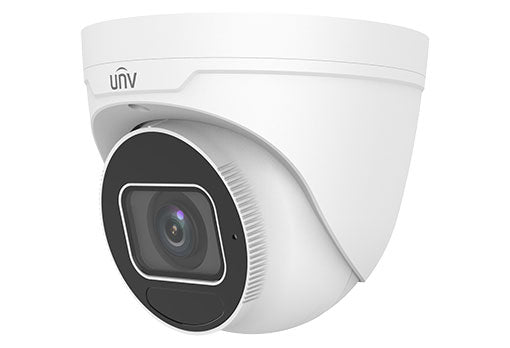

Uniview 4MP HD IR VF Eyeball Network Camera - IPC3634SR4-ADZK-H
Uniview 4MP HD IR VF Eyeball Network Camera - IPC3634SR4-ADZK-H
Get crystal clear, high definition footage with the Uniview 4MP HD IR VF Eyeball Network Camera. With its advanced technology and infrared capabilities, this camera provides exceptional night vision for enhanced security. Its variable focal length also allows for customizable viewing angles, ensuring maximum coverage for your surveillance needs.
Features
• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520) @25/20fps; 4MP (2560*1440) @25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Smart IR, up to 40m (131ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
Specifications
Camera | ||||||||||
Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||||
Minimum Illumination | Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR on |
|||||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | |||||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360° | |||||||
WDR | 120dB | |||||||||
S/N | >52 dB | |||||||||
Lens | ||||||||||
Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||||||
Iris | Fixed | |||||||||
Field of View (H) | 86.3°~35.2° | |||||||||
Field of View (V) | 47.1°~17.0° | |||||||||
Field of View (D) | 91.9°~38.6° | |||||||||
DORI | ||||||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||
2.8 | 63(206.7ft) | 25.2(82.7ft) | 12.6(41.3ft) | 6.3(20.7ft) | ||||||
12 | 270.0(885.8ft) | 108.0(354.3ft) | 54.0(177.2ft) | 27.0(88.6ft) | ||||||
Illuminator | ||||||||||
IR Range | Up to 40m (131ft) IR range | |||||||||
Wavelength | 850nm | |||||||||
IR On/Off Control | Auto/Manual | |||||||||
Video | ||||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
H.264 code profile | Baseline profile, Main profile, High profile | |||||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
|||||||||
Video Bit Rate | 128 Kbps~6 Mbps | |||||||||
U-code | Support | |||||||||
OSD | Up to 4 OSDs | |||||||||
Privacy Mask | Up to 4 areas | |||||||||
ROI | Up to 8 areas | |||||||||
Video Stream | Dual streams | |||||||||
Image | ||||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||
Digital Noise Reduction | 2D/3D DNR | |||||||||
Smart IR | Support | |||||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||||
Dewarping | N/A | |||||||||
HLC | Support | |||||||||
BLC | Support | |||||||||
Defog | Digital Defog | |||||||||
Events | ||||||||||
Basic Detection | Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio Detection | |||||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication | |||||||||
Audio | ||||||||||
Audio Compression | G.711U, G.711A | |||||||||
Audio Bitrate | 64 Kbps | |||||||||
Two-way Audio | N/A | |||||||||
Suppression | Support | |||||||||
Sampling Rate | 8KHZ | |||||||||
Storage | ||||||||||
Edge Storage | Micro SD, up to 256GB | |||||||||
Network Storage | ANR, NAS(NFS) | |||||||||
Network | ||||||||||
Protocols | IPv4, IPv6 ,IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, RTMP,SSL/TLS | |||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||||||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||||||
Client | EZStation EZView EZLive |
|||||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||||
Interface | ||||||||||
Audio I/O | N/A | |||||||||
Alarm I/O | N/A | |||||||||
RS485 | N/A | |||||||||
Built-in Mic | Support | |||||||||
Built-in Speaker | N/A | |||||||||
WIFI | N/A | |||||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||||
Video Output | N/A | |||||||||
Certifications | ||||||||||
EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
|||||||||
Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|||||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||||
Protection | IP67 (IEC 60529) | |||||||||
General | ||||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||
Power consumption: Max 7.5W | ||||||||||
Power Interface | Ø 5.5mm coaxial power plug | |||||||||
Dimensions (Ø x H) | Φ129 x 110mm (Ø5.1” x 4.3”) | |||||||||
Weight | 0.66kg(1.46lb) | |||||||||
Material | Metal | |||||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
Surge Protection | 6KV | |||||||||
Reset Button | Support |
