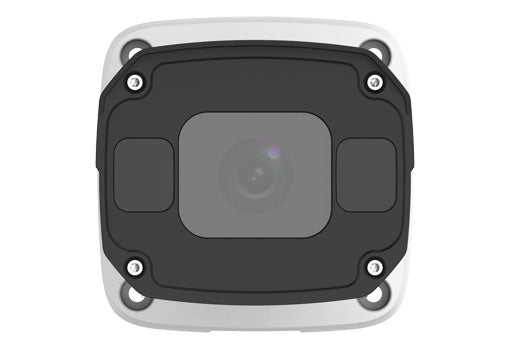

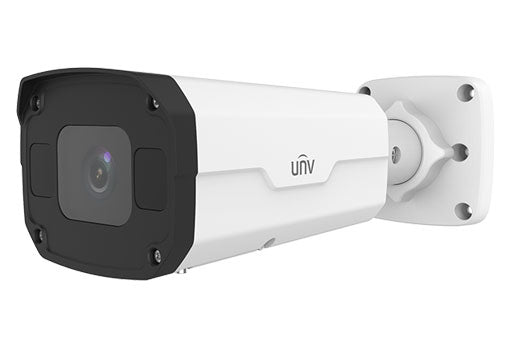

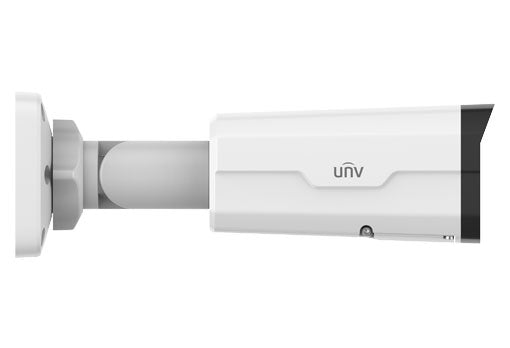

Uniview 4MP HD Intelligent LightHunter IR VF Bullet Network Camera - IPC2324SB-DZK-I0
Uniview 4MP HD Intelligent LightHunter IR VF Bullet Network Camera - IPC2324SB-DZK-I0
The Uniview 4MP HD Intelligent LightHunter IR VF Bullet Network Camera - IPC2324SB-DZK-I0 is an advanced security camera that offers 4MP HD resolution and intelligent light detection, allowing for clear and precise monitoring even in low light conditions. With its Variable Focal length lens, this camera provides adjustable focus for optimal surveillance.
Features
• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @ 30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 50m (164ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant and IP67 protection
• Support PoE power supply
Specifications
Camera | |||||||
Sensor | 1/3", 4.0megapixel, progressive scan, CMOS | ||||||
Minimum Illumination | Colour: 0.002 lux (F1.2, AGC ON) 0 lux with IR on |
||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||
Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
WDR | 120dB | ||||||
S/N | >56 dB | ||||||
Lens | |||||||
Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens | ||||||
Iris | Fixed | ||||||
Field of View (H) | 98.26°~ 31.35° | ||||||
Field of View (V) | 54.76°~ 18.55° | ||||||
Field of View (D) | 127.74°~36.99° | ||||||
DORI | |||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
2.7 | 60.8 | 24.3 | 12.2 | 6.1 | |||
13.5 | 303.8 | 121.5 | 60.8 | 30.4 | |||
Illuminator | |||||||
IR Range | Up to 50m (164ft) IR range | ||||||
Wavelength | 850nm | ||||||
IR On/Off Control | Auto/Manual | ||||||
Video | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
H.264 code profile | Baseline profile, Main profile, High profile | ||||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||
U-code | Support | ||||||
OSD | Up to 8 OSDs | ||||||
Privacy Mask | Up to 4 areas | ||||||
ROI | Up to 8 areas | ||||||
Video Stream | Triple streams | ||||||
Image | |||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
Digital Noise Reduction | 2D/3D DNR | ||||||
Smart IR | Support | ||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
Dewarping | N/A | ||||||
HLC | Support | ||||||
BLC | Support | ||||||
Defog | Digital Defog | ||||||
Intelligent | |||||||
Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||||
Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||||
Events | |||||||
Basic Detection | Motion detection, Ultra motion detection ,Tampering alarm, Audio detection | ||||||
General Function | Watermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication | ||||||
Audio | |||||||
Audio Compression | G.711 | ||||||
Audio Bitrate | 64 Kbps | ||||||
Two-way Audio | Support | ||||||
Suppression | Support | ||||||
Sampling Rate | 8KHZ | ||||||
Storage | |||||||
Edge Storage | Micro SD, up to 256GB | ||||||
Network Storage | ANR, NAS(NFS) | ||||||
Network | |||||||
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||
Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||
Client | EZStation EZView EZLive |
||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
Interface | |||||||
Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||
1 Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
Alarm I/O | 1/1 | ||||||
RS485 | N/A | ||||||
Built-in Mic | N/A | ||||||
Built-in Speaker | N/A | ||||||
WIFI | N/A | ||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
Video Output | N/A | ||||||
Certifications | |||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
||||||
General | |||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
Power consumption: Max 8.5W | |||||||
Power Interface | Ø 5.5mm coaxial power plug | ||||||
Dimensions (L × W × H) | 245.4 × 85.4 × 86.4mm (9.7” × 3.4” × 3.4”) | ||||||
Weight | 0.92kg (2.03lb) | ||||||
Material | Metal | ||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Surge Protection | 6KV | ||||||
Reset Button | N/A |
